FutureLogic PSA-66-ST2 - PSA-66-ST2 N Netplex Interface Cables and Ports

Operators and Technicians Manual
© 2002 – 2007 FutureLogic, Incorporated. All Rights Reserved. MNL Page 12 of 52 12/07/2007
MNL-000003 REV.N
PSA-66-ST2N (GEN2 Netplex Printer)
GEN2 Netplex Interface Cable

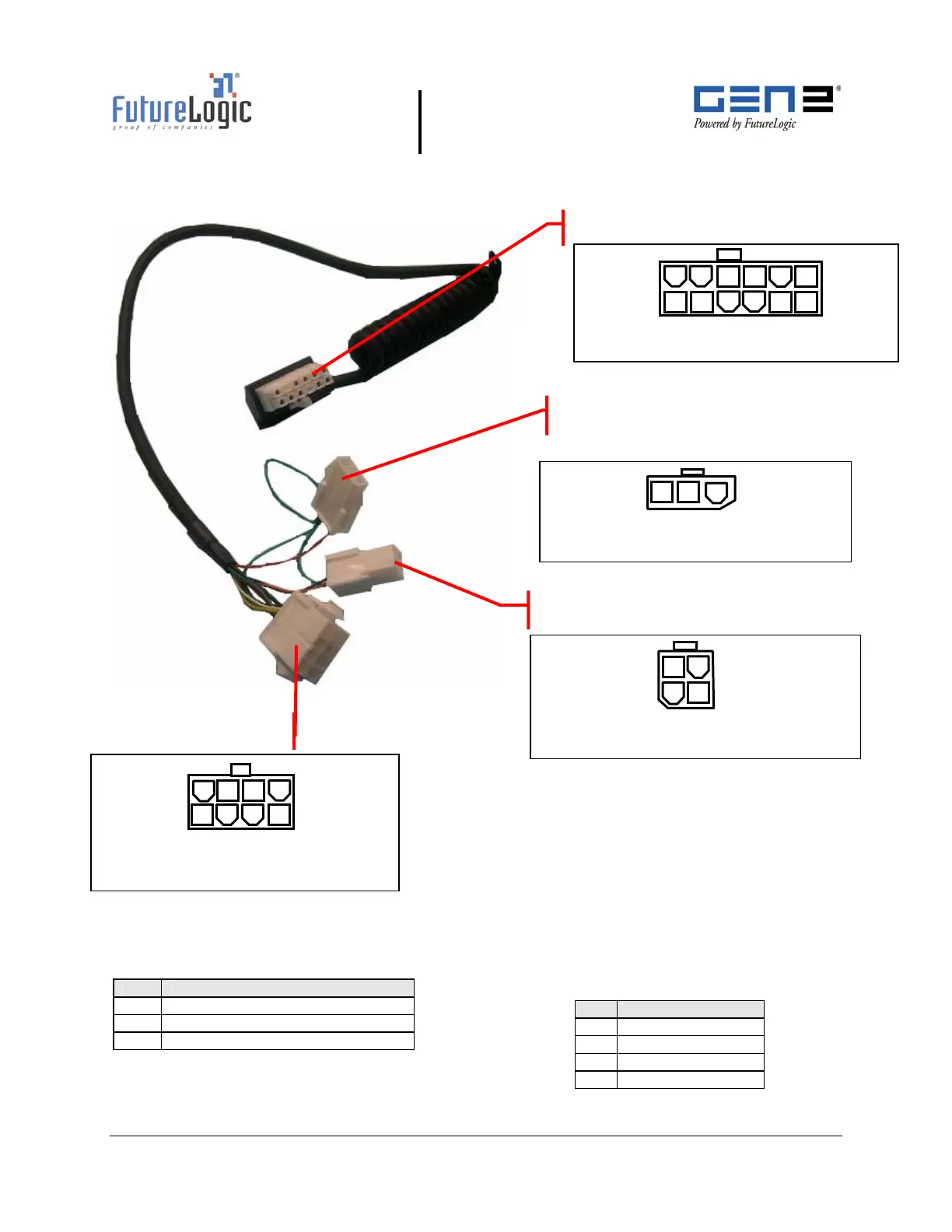

Figure 4-2 Netplex Interface Cable
Table 4-2 Bezel LED Port Pins
Table 4-3 Auxiliary COMM Port Pin-out
Connector: Molex Mini-Fit Jr. 39-01-2125
Mate: Molex Mini-Fit Jr. 39-01-2121
Base Port
1
7
6
12
1
3
2
4
Pin Function
1 GND
2 RX2
3 TX2
4 No Connect
1
2
3
Connector: Molex Mini-Fit Jr. 39-01-4032
Mate: Molex Mini-Fit Jr. 39-01-4030
Connector: Molex Mini-Fit Jr. 39-01-3049
Mate: Molex Mini-Fit Jr. 39-01-3042
Auxiliary COMM Port
Pin Function
1 Switched 25VDC, 100mA Min
2 NC
3 BGND
Bezel LED Control Port
Netplex Power/COMM Port
1
5
4
8
Connector: Molex Mini-Fit Jr. 39-01-3081
Mate: Molex Mini-Fit Jr. 39-00-0040
Netplex Cable P/N: 150-00032-100
