PSA-66-ST2R (GEN2 RS232 Printer)
GEN2 RS232 Interface Cable – 12 Pin Coiled Cable
Table 4-8 Auxiliary COMM Port Pin-out
Table 4-9 Bezel LED Port Pins

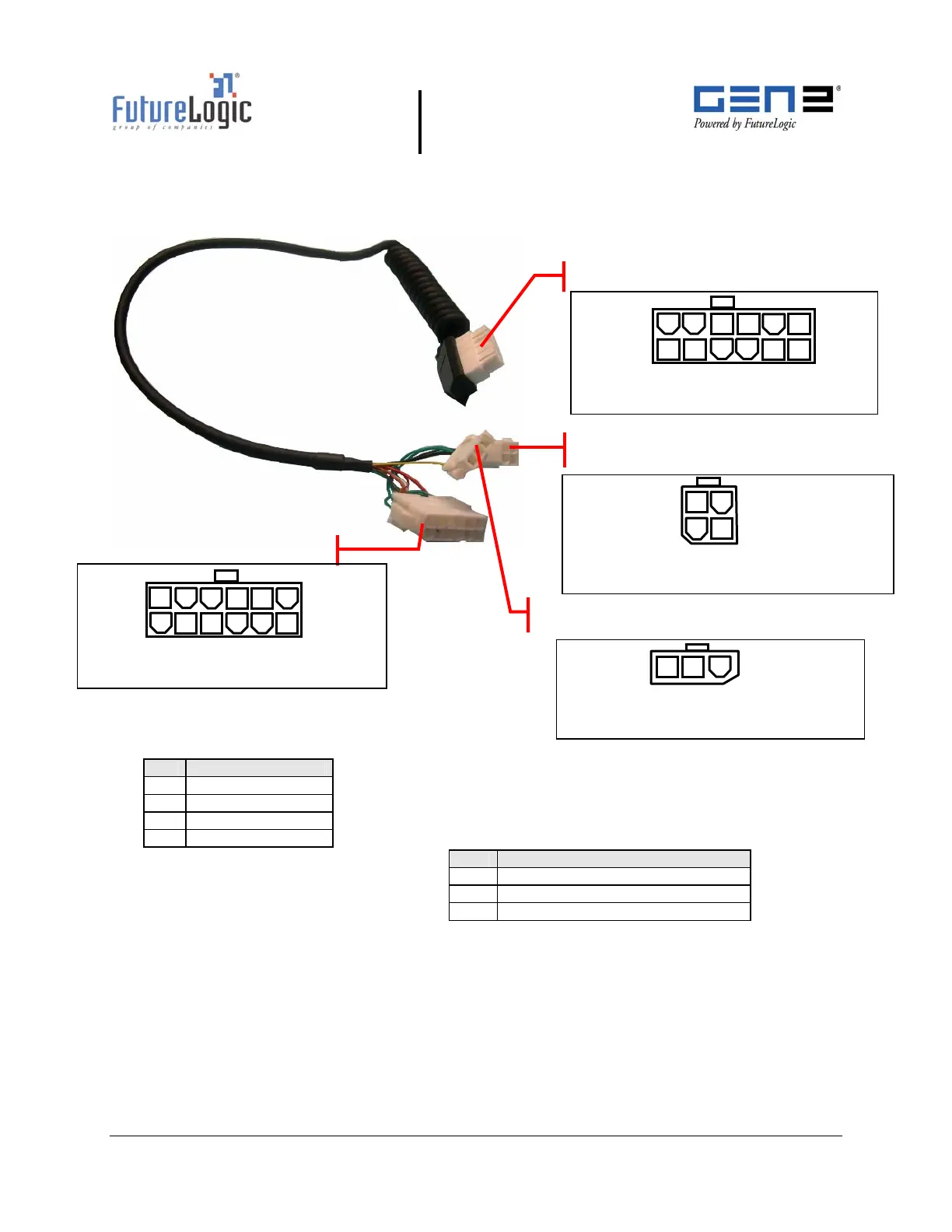

Figure 4-6 RS232 Interface Cable, 12 Pin Coiled
Connector: Molex Mini-Fit Jr. 39-01-2125
Mate: Molex Mini-Fit Jr. 39-01-2121
Base Port
1
7
6
12
Pin Function
1 Switched 25VDC, 100mA Min
2 NC
3 BGND
1
3
2
4
Connector: Molex Mini-Fit Jr. 39-01-2121
Mate: Molex Mini-Fit Jr. 39-00-0040
1 2
3
Connector: Molex Mini-Fit Jr. 39-01-4032
Mate: Molex Mini-Fit Jr. 39-01-4030
Connector: Molex Mini-Fit Jr. 39-01-3049
Mate: Molex Mini-Fit Jr. 39-01-3042
Auxiliary COMM Port
Bezel LED Control Port
RS232 Power/COMM Port
1
7
12
6
Pin Function
1 GND
2 RX2
3 TX2
4 no connect
RS232 12 Pin Coiled Cable P/N: 150-00035-100
RS232 Eval Cable P/N: 150-00044-100
