Operators and Technicians Manual
© 2002 – 2007 FutureLogic, Incorporated. All Rights Reserved. MNL Page 20 of 52 12/07/2007
MNL-000003 REV.N
GEN2 RS232 Evaluation Cable

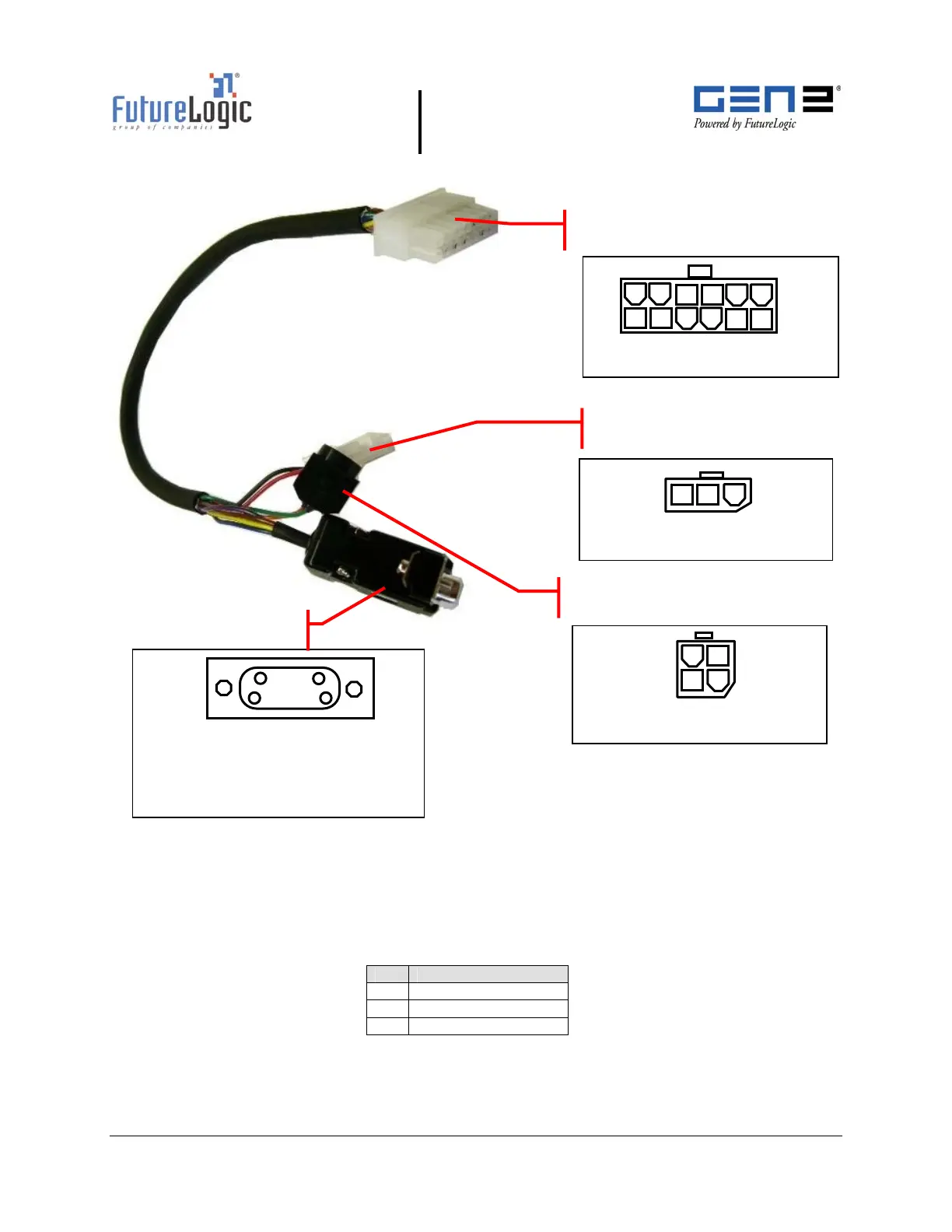

Figure 4-9 RS232 Evaluation Cable
The Bezel port on the rear of the unit is identical in function and characteristics to the one
on the front of the unit described earlier.
Table 4-15 Bezel Port Pins
Pin Function
1 Modulated +24VDC
2 No connect
3 GND
Connector: Molex 39-30-1200
Mate: Molex 39-01-2120
1
6
7
12
Base Port
1
2
3
Connector: Molex 39-01-4032
Mate: Molex 39-01-4030
Connector: Molex 39-30-0040
Mate: Molex 39-01-2040
1 2
3
4
1
5
Connector: DB-9 female
Mate: DB-9 male
Cable: standard straight pass
DB-9 to DB-9
RS232 Eval Cable 12 Pin P/N 150-00044-100
Bezel LED Port
Power Port
DB9 RS232 Port
