Section 50 00-02-1032
2020-12-08 - 16 -
Shutdown Snapshot

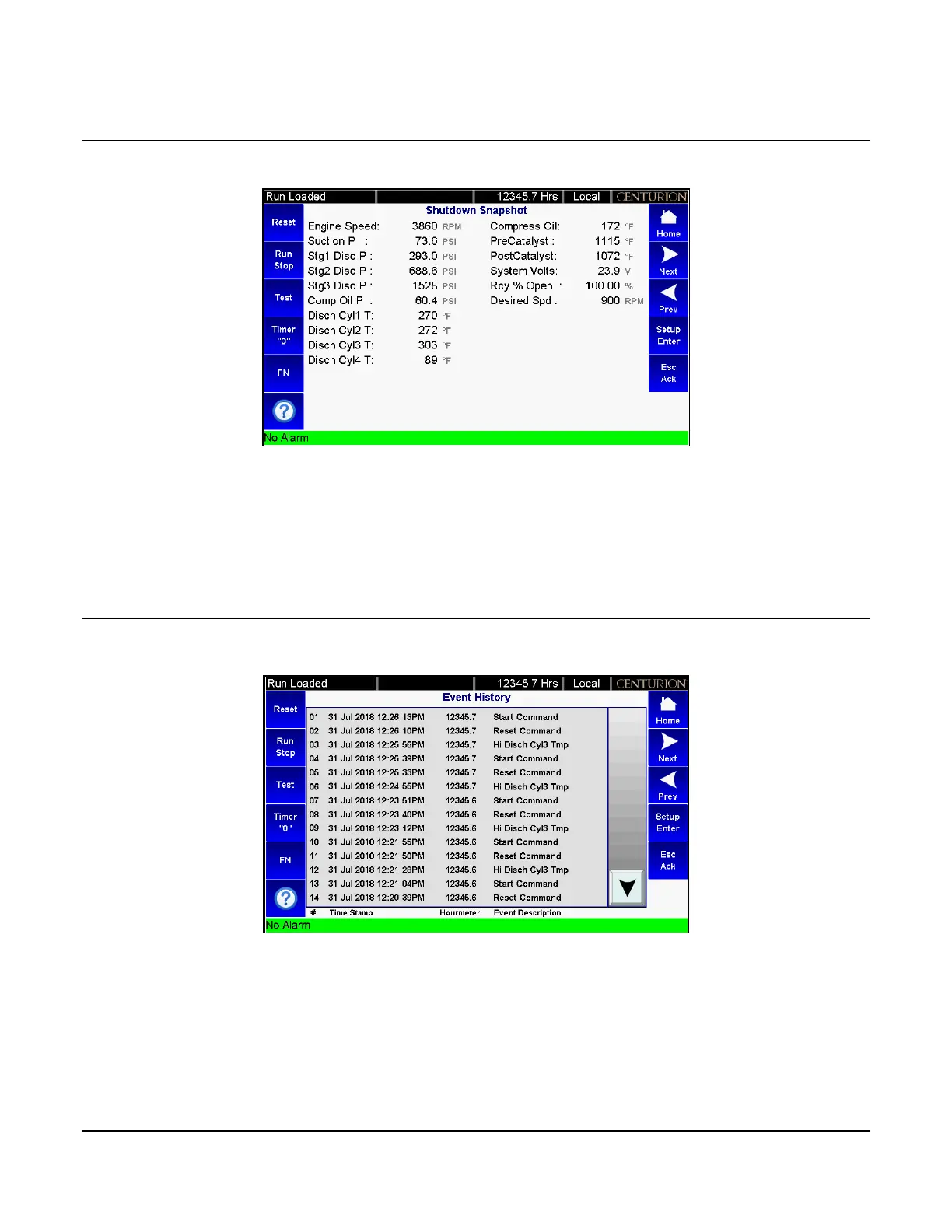

The shutdown snapshot screen is a capture of the values displayed at the time of a Fault SD or ESD event.
These values are retained and displayed on the Shutdown Snapshot screen until the next Fault SD or ESD event
occurs. If a ---is displayed instead of a value, it indicates the shutdown snapshot has not captured any data.
Fault snapshots are taken only while the equipment has been called to start/run. This behavior ensures that
repeated attempts to reset a fault will not clear a previous run cycle’s fault snapshot.
NOTE: Only the first two line-by-line screens configured will be captured on the fault snapshot page. If no line-
by-line custom screens are configured, the shutdown snapshot will not function.
Event History
The history of the last 32 events is displayed on this screen with the most recent at the top of the list and the
oldest at the bottom.
The first number displayed indicates how many entries are in the list.
Events include shutdowns, starts, stops, resets, etc. The user easily can view the events (alarms, etc.) logged
before and after a shutdown.
Each event is displayed with the event label, real time-clock and hour meter reading.
