Setpoints Setup

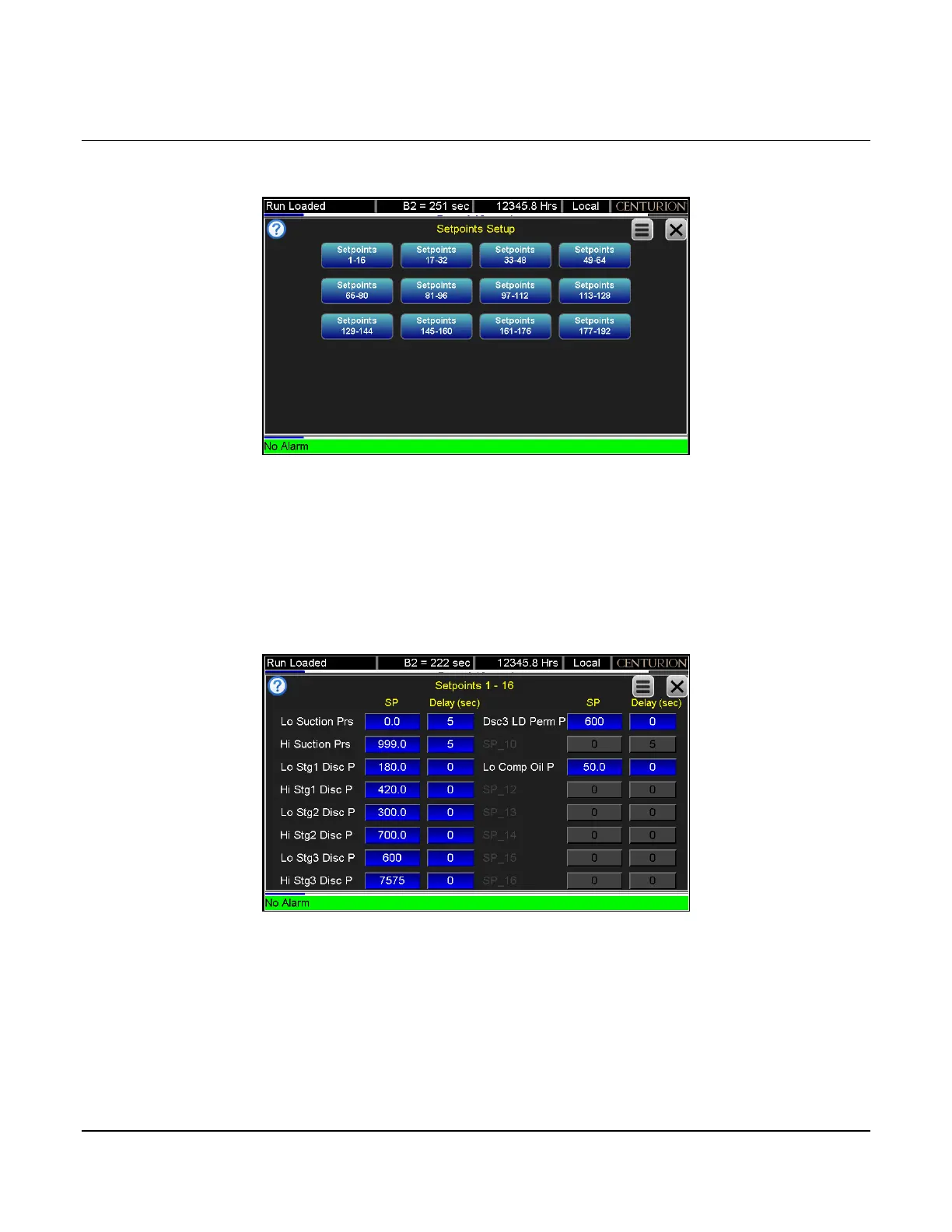

The Setpoints Setup screen can display up to 192 setpoints that may be configured in the system by the
Centurion Configuration Tool software. The values for the setpoints are user-editable.
Setpoints are thresholds which can be configured as >= or <= and analog, temperature, speed or voltage input
used for alarms, shutdowns and permissive signals for operating states.
Multiple setpoints are often applied to a process. Groups which are not highlighted have no setpoints used in
them.
Touch a setpoint group to view and edit items in that group.
Setpoints 1 – 16 page
Click on blue icon to make edits. Gray icons are not active.
