Section 50 00-02-1032
2020-12-08 - 26 -

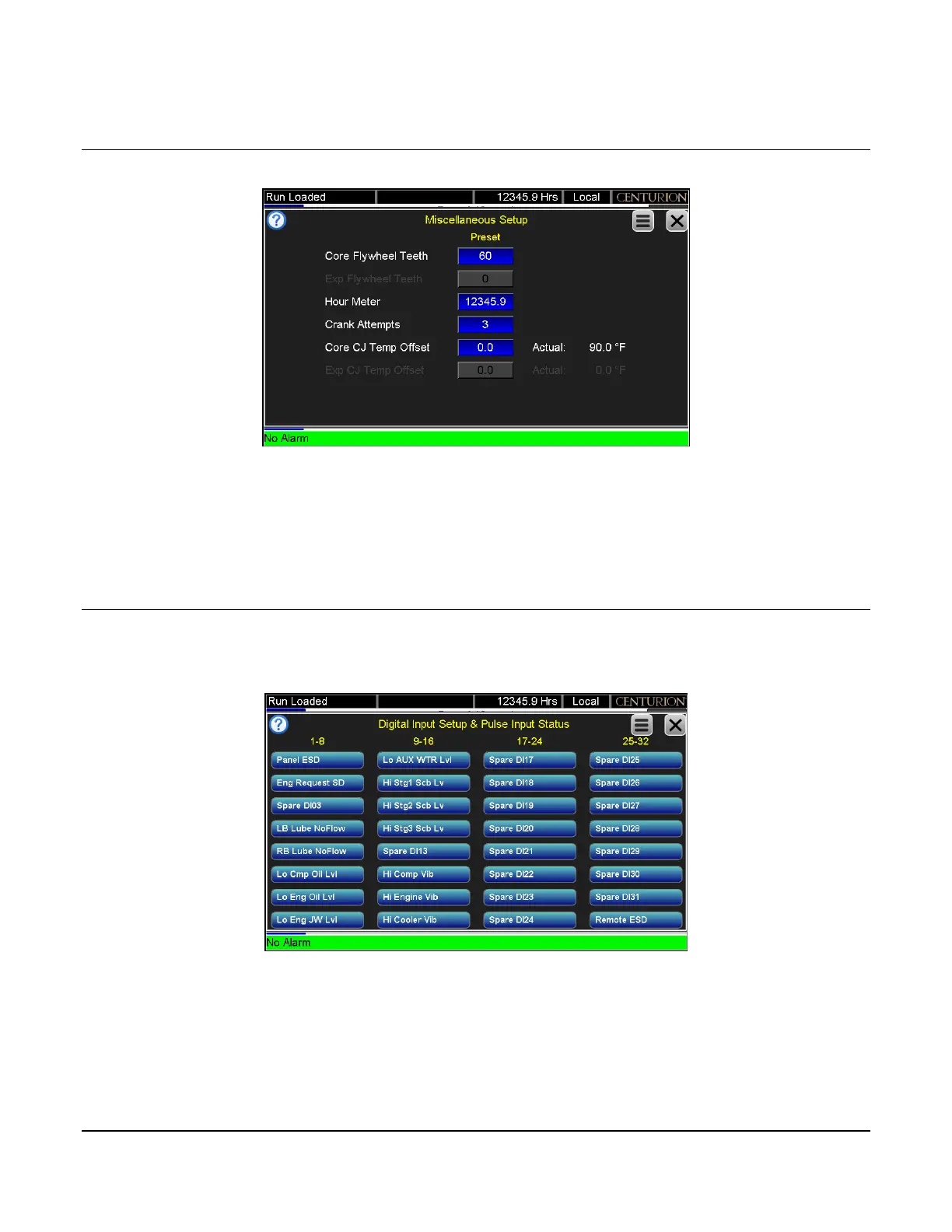

Miscellaneous Setup
Set the Flywheel Teeth to calibrate the magnetic pickup input RPM calculations.
Set/Rest the run Hour Meter which accumulates run time.
Crank Attempts Setpoint is the limit for crank cycles before overcrank faults.
Electric motor short cycle fault is set by the Maximum starts per hour limit.
Core junction offset is used to globally shift the internal temperature sensor.
Digital Input Setup/Pulse Status
Touch the desired output to view output status and modify output setup. Only outputs in use by the configuration
are settable.
Pulse cycle input times and totals can be viewed and reset for each input.
