Control Loop

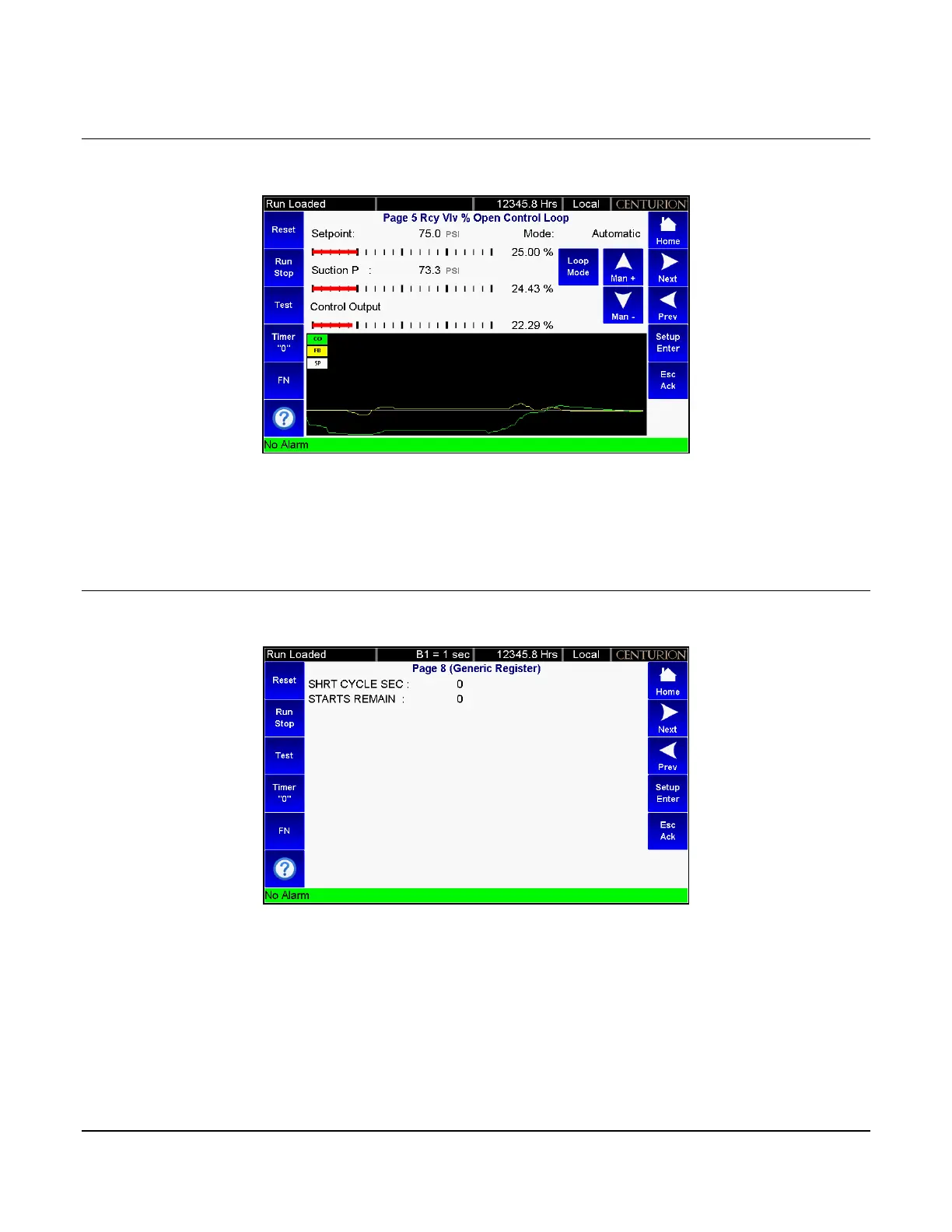

The user may choose to display any configured Control Loop functions in this convenient format. The control
output will be displayed as a percentage of the range.
Touch the Loop Mode icon on this page to toggle the mode between Auto and Manual modes of control loop
operation.
If the Control Loop is in Manual, touch the Man + and Man - arrow icons to adjust the output directly to make
adjustments to the desired setting.
Generic Register
The Centurion has 9 user-configurable pages of 4 types. This Generic Register screen shows up to 20 items in a
list that can be mapped to the Centurion Modbus map and given a label.
Data is shown as a signed 16-bit integer with fixed decimal place. The data on this page can be changed using
the Centurion Configuration Software.
