2.5 GAT ECO.Lock 7xxx F/ISO Dimensions and Components
Non-metallic door Metallic door
1. Battery cover
4. LED ring
2. Locking bolt
5. Lock electronics
3. Button
6. Booster

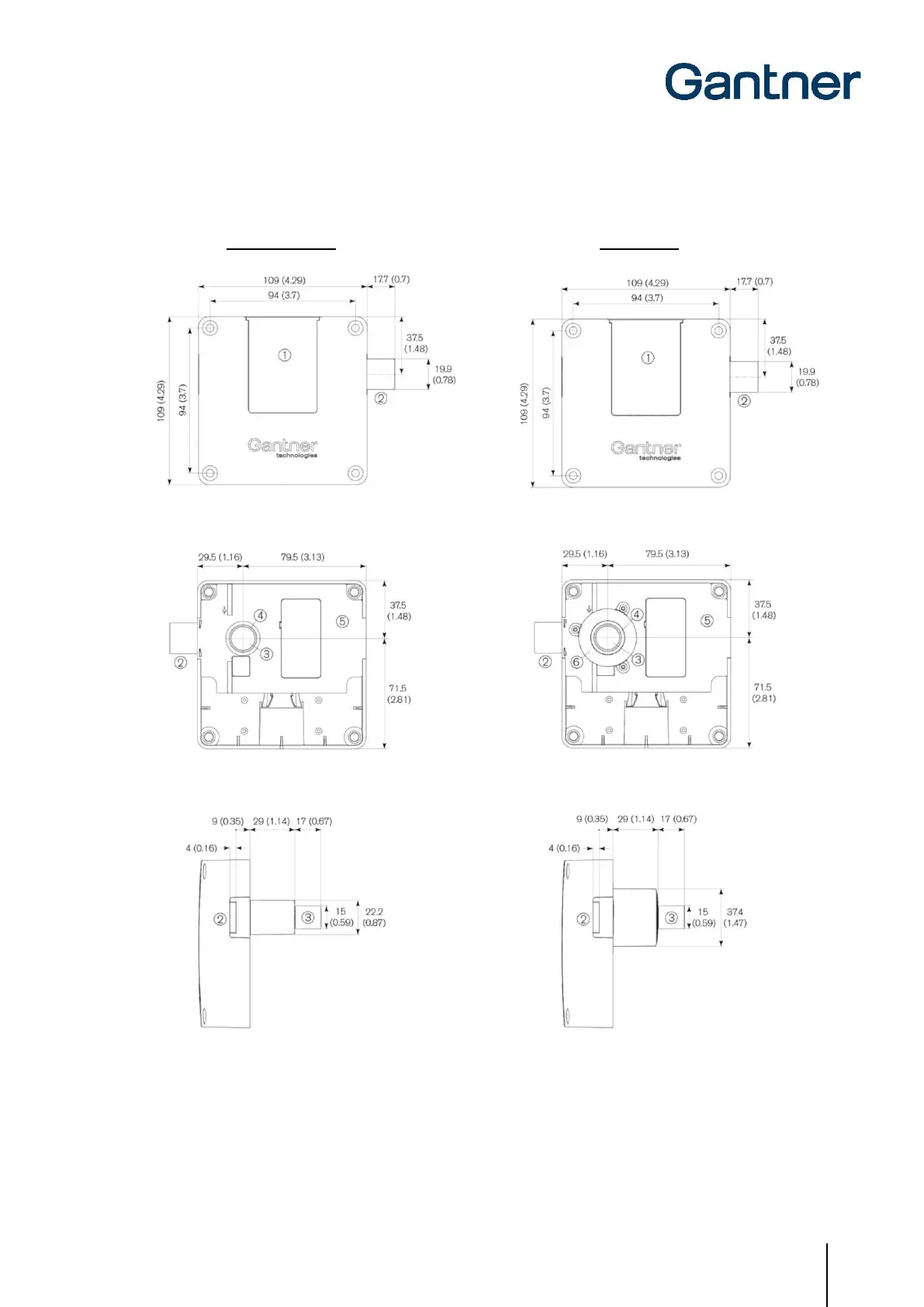

Figure 2.2 – GAT ECO.Lock 7xxx F/ISO dimensions and components (dimensions in mm – inches shown in brackets)
