GAT ECO.Lock 7xxx F/ISO
Installation
16
HB_GAT-ECOLock-7xxxFISO--EN_12
www.gantner.com
3.5 Definition of the Door Hinge (Right of Left-Hinged Door)
For installation, it is important to determine whether the locked door is hinged on the left or right side, which is
defined as follows:

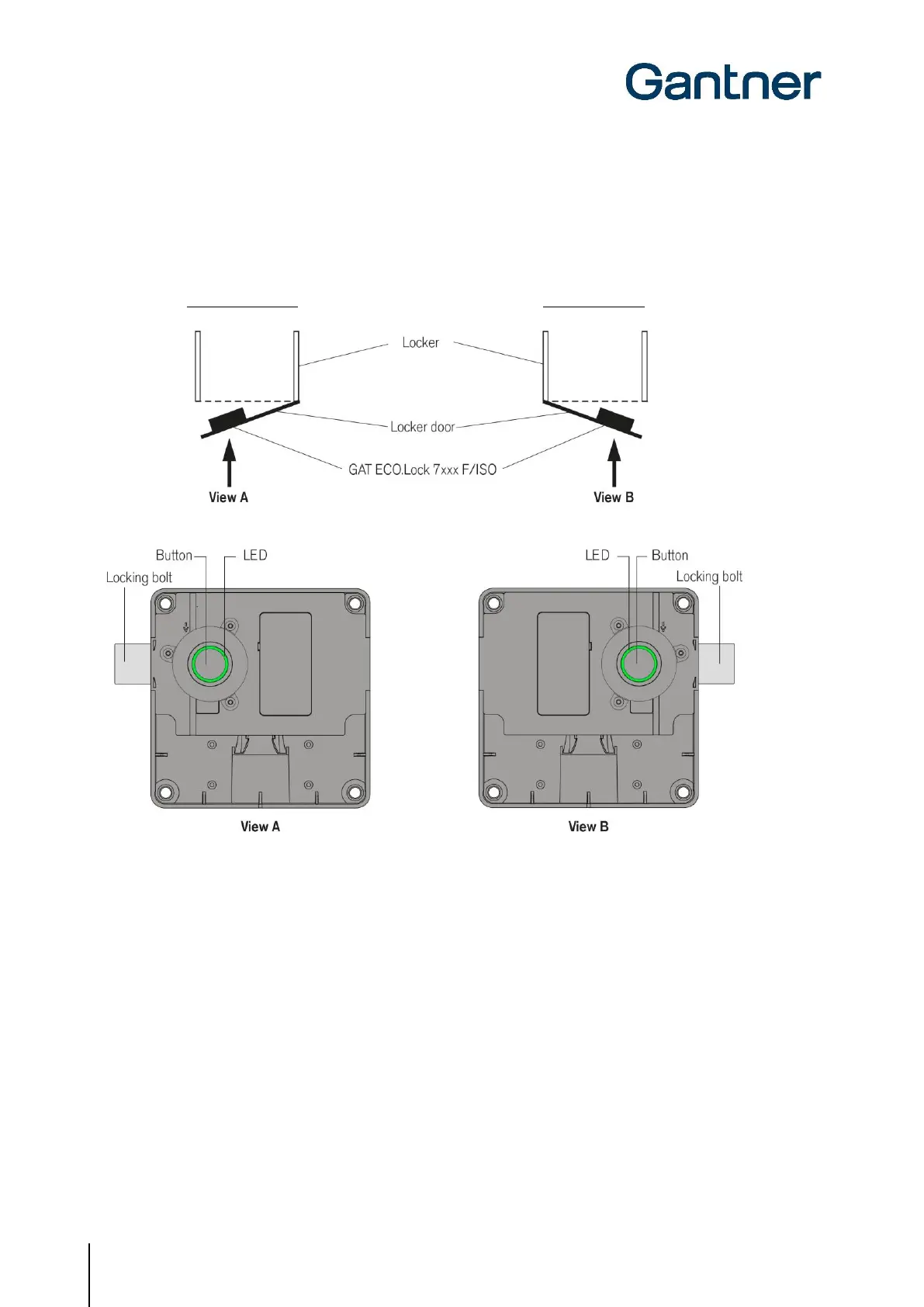

Right-hinged door Left-hinged door
Figure 3.2 – Locker door hinge definition (left/right)
The position of the locking bolt and button of the GAT ECO.Lock 7xxx F/ISO is different for right and left-hinged
doors. You can make this change yourself (see next section).
The installation for right-hinged doors is described in the following pages. The installation process for left-hinged
doors is the same as for right-hinged doors, only with the GAT ECO.Lock 7xxx F/ISO and locker door rotated180°.
