3.8 Installation in Lockers with Metallic Doors
For lockers with non-metallic doors, the GAT ECO.Lock 7xxx F/ISO is mounted on the left or right inner-side of the
locker door depending whether the door is right or left-hinged. A drill hole is required in the locker door for the button
of the GAT ECO.Lock 7xxx F/ISO.
NOTE! Before installing all locks in a new locker system, a test installation of one lock into a completed locker and
a function check must be performed. See section “3.1. Test Installation”.
3.8.1 Measurements for the Button Drill Hole
A hole must be drilled into the locker door for the button. For metallic locker doors, the diameter of the button hole is
38 mm (1.5´´).

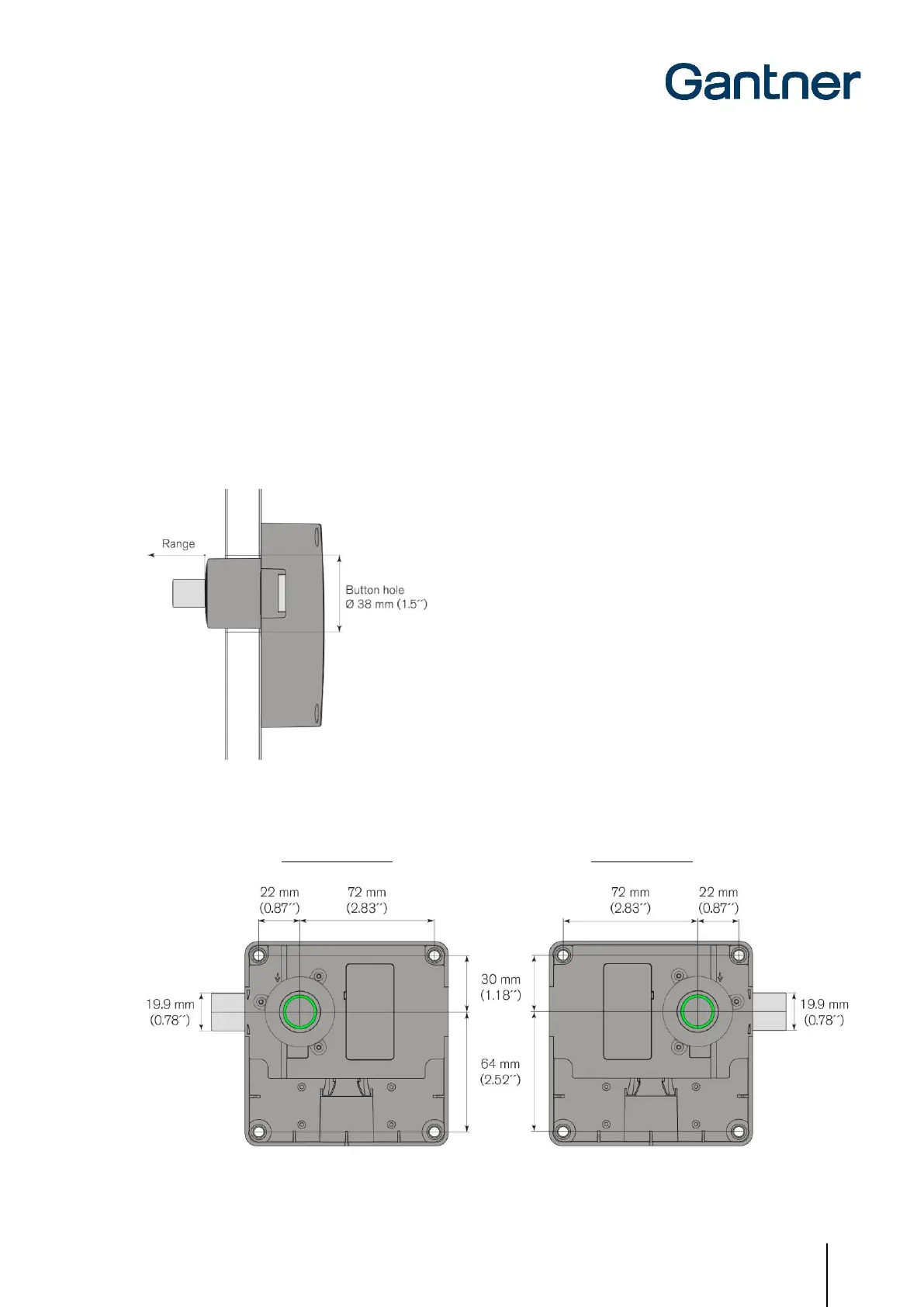

Figure 3.7 – Diameter of the button drill hole for metallic doors
The following diagrams show the position of the button drill hole in relation to the housing mounting holes.
Right-hinged door Left-hinged door
Figure 3.8 - Position of the button drill hole for metallic doors
