GAT ECO.Lock 7xxx F/ISO
Installation
22 HB_GAT-ECOLock-7xxxFISO--EN_12 www.gantner.com
3.8.2 Measurements for Installation
When the GAT ECO.Lock 7xxx F/ISO is mounted on a single-wall metallic door, it is recommended to install the
lock a corresponding distance away from the locker door, e.g. using a mounting bracket, as shown below in Figure
3.9 . This installation method allows the lock to be mounted on the inside of the locker wall without the need to drill
through the outside of the locker door.

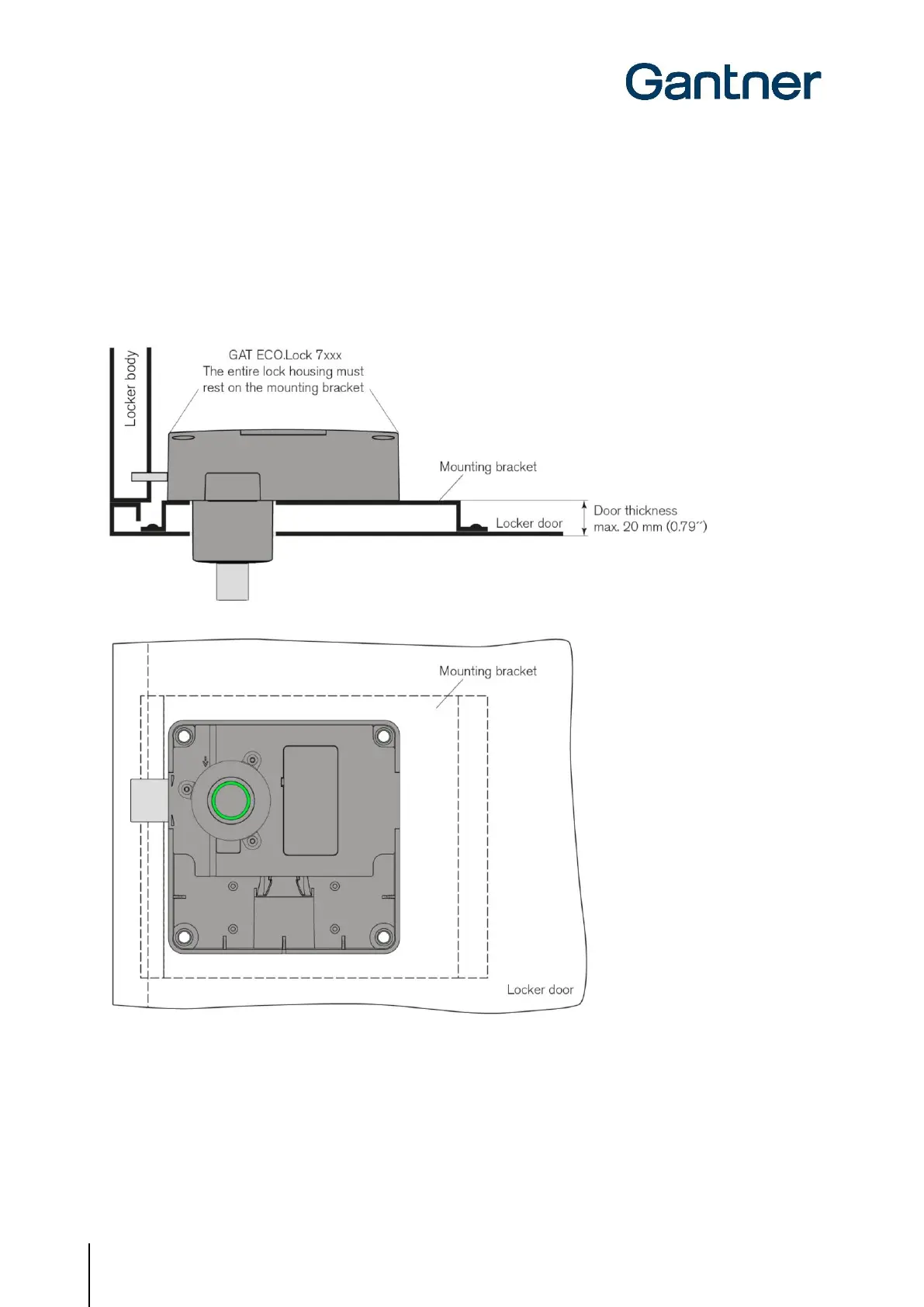

Figure 3.9 – Installation of the GAT ECO.Lock 7xxx F/ISO on a single-wall metallic door
