GAT ECO.Lock 7xxx F/ISO
Start-Up
www.gantner.com
HB_GAT-ECOLock-7xxxFISO--EN_12
29
Following battery replacement, the GAT ECO.Lock 7xxx F/ISO must be returned to its normal operating mode using
the “Battery” data carrier (= battery cover key) (see section “5.4.3. Battery Data Carrier”).
► Complete the instructions described in section “4.1.2. Inserting the Batteries”.
► Press the locker door shut with one hand and hold it shut.
► Press the lock button of the GAT ECO.Lock 7xxx F/ISO in using the “Battery” data carrier.
o The LED ring flashes green briefly and a signal tone is emitted. The lock returns to its normal
operating mode.

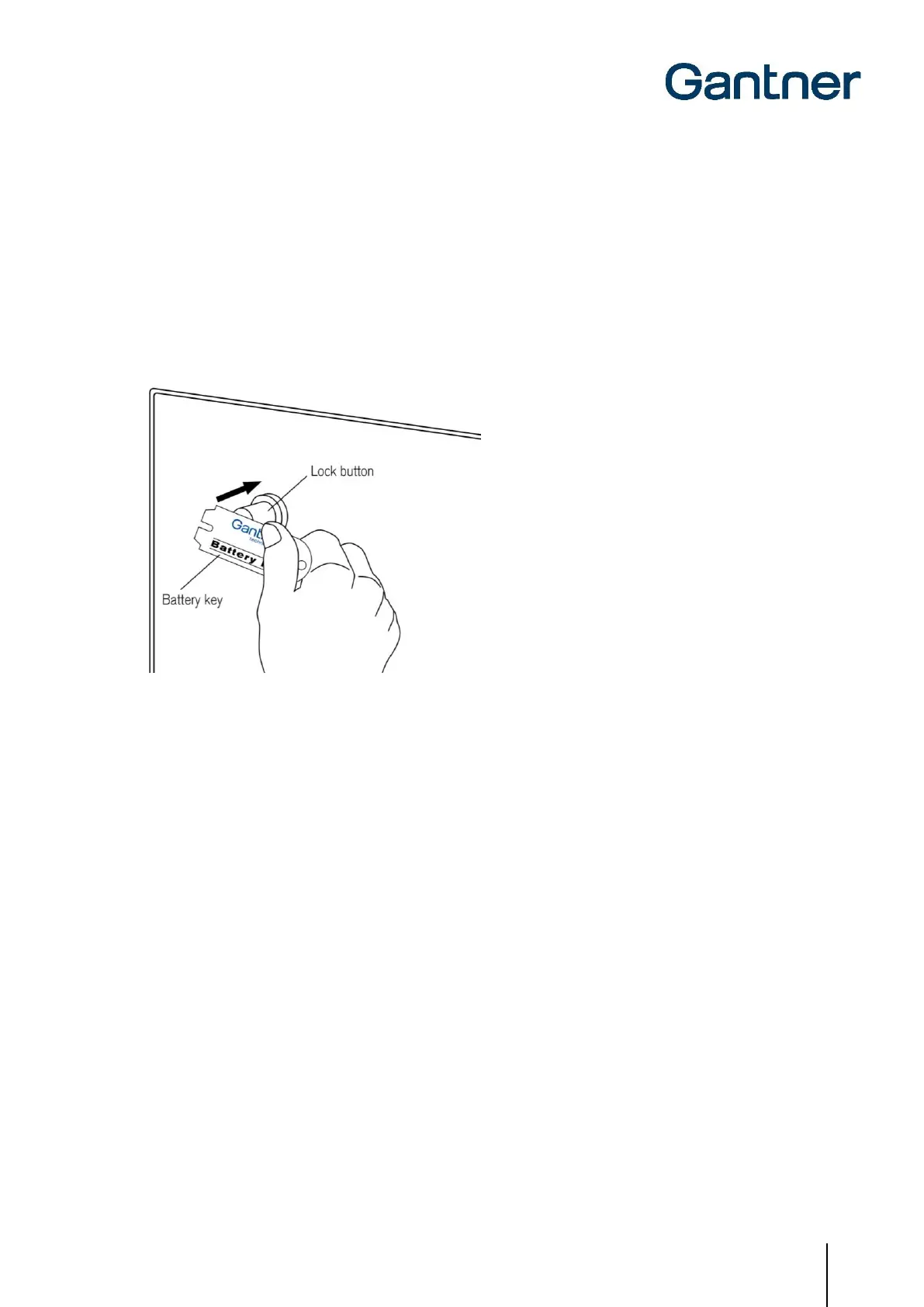

Figure 4.3 – Activating the GAT ECO.Lock 7xxx F/ISO with the battery cover key
4.2 USB Connection
A Micro-B USB port is located on the opposite side of the GAT ECO.Lock 7xxx F/ISO to the locking bolt. The USB
port location on the side of the lock allows configuration to occur even while the lock is installed in a locker.
NOTE! The maximum USB cable length between the GAT ECO.Lock 7xxx F/ISO and a computer is 5m.
The service data carrier (see “5.4.5 Service Data Carrier”) is used to put the GAT ECO.Lock 7xxx F/ISO into
configuration mode after the USB cable is connected. A 3m USB cable, the service data carrier, and GAT Config
Manager configuration software are included in the GAT ECO.Basic Set F/ISO (Part No. 812528). See section “5.3.
GAT ECO.Basic Set F/ISO”.
To configure the GAT ECO.Lock 7xxx F/ISO via PC/laptop:
► Start GAT Config Manager on the PC/laptop.
► Plug the USB cable (type-A end) into a spare USB port on the PC/laptop.
