GAT ECO.Lock 7xxx F/ISO
Installation
26 HB_GAT-ECOLock-7xxxFISO--EN_12 www.gantner.com
► The GAT ECO.Lock 7xxx F/ISO can now be mounted onto the door inner side. The installation instructions for
metallic or non-metallic doors are provided in the previous chapters.
1. GAT Lock Door Handle
2. GAT ECO.Lock 7xxx F/ISO
3. GAT ECO.Lock 7xxx F/ISO button shaft
4. GAT ECO.Lock 7xxx F/ISO button

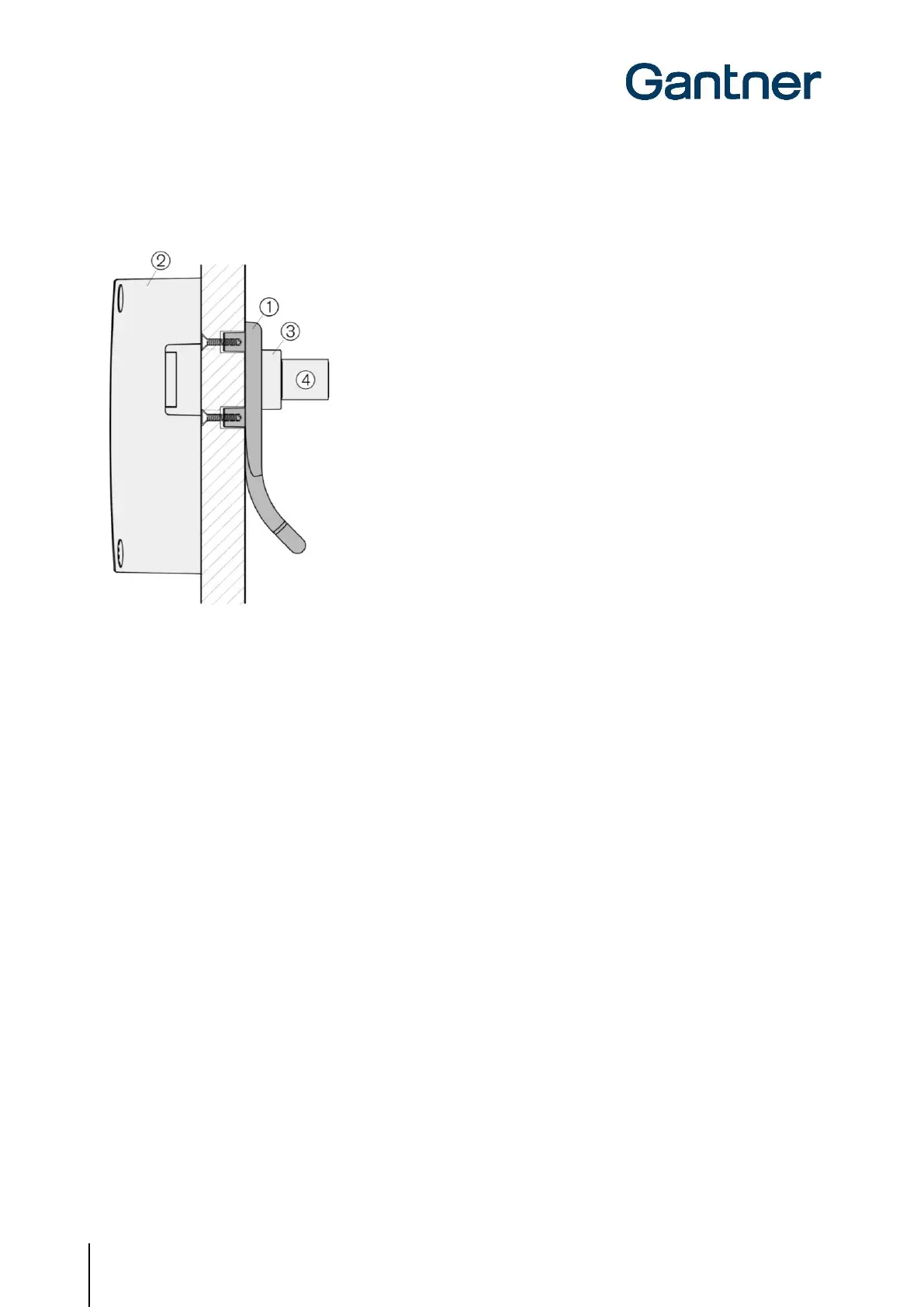

Figure 3.13 – Installed GAT Lock Door Handle and GAT ECO.Lock 7xxx F/ISO
