2.2.2 Stand Installation(for EP-132S)
Please follow procedure below to assemble stand and media support system.
Step 1 Please examine supplied items in the accessory box of stand carton before you
install:
Item List：
：：
：
 2 piece of T-shape stand
 1 piece of stand beam
 18 pieces of M6 screws
 1 piece of M5 L-shape hexagon screw driver
 1 piece of Installation Guide for Stand Set
Step 2
 Remove the plotter body and the accessories from the shipped carton.
 Place the stand beam upright on the T-stand and follow the number
 to assemble.
(See Figure 2-6 & 2-7)
Step 3
Position the stand beam perpendicularly to part and put the screws into the
holes and tighten them as Figure 2-7. Then the complete picture of stand will
be like Figure 2-6.

T-Stand
 Stand beam

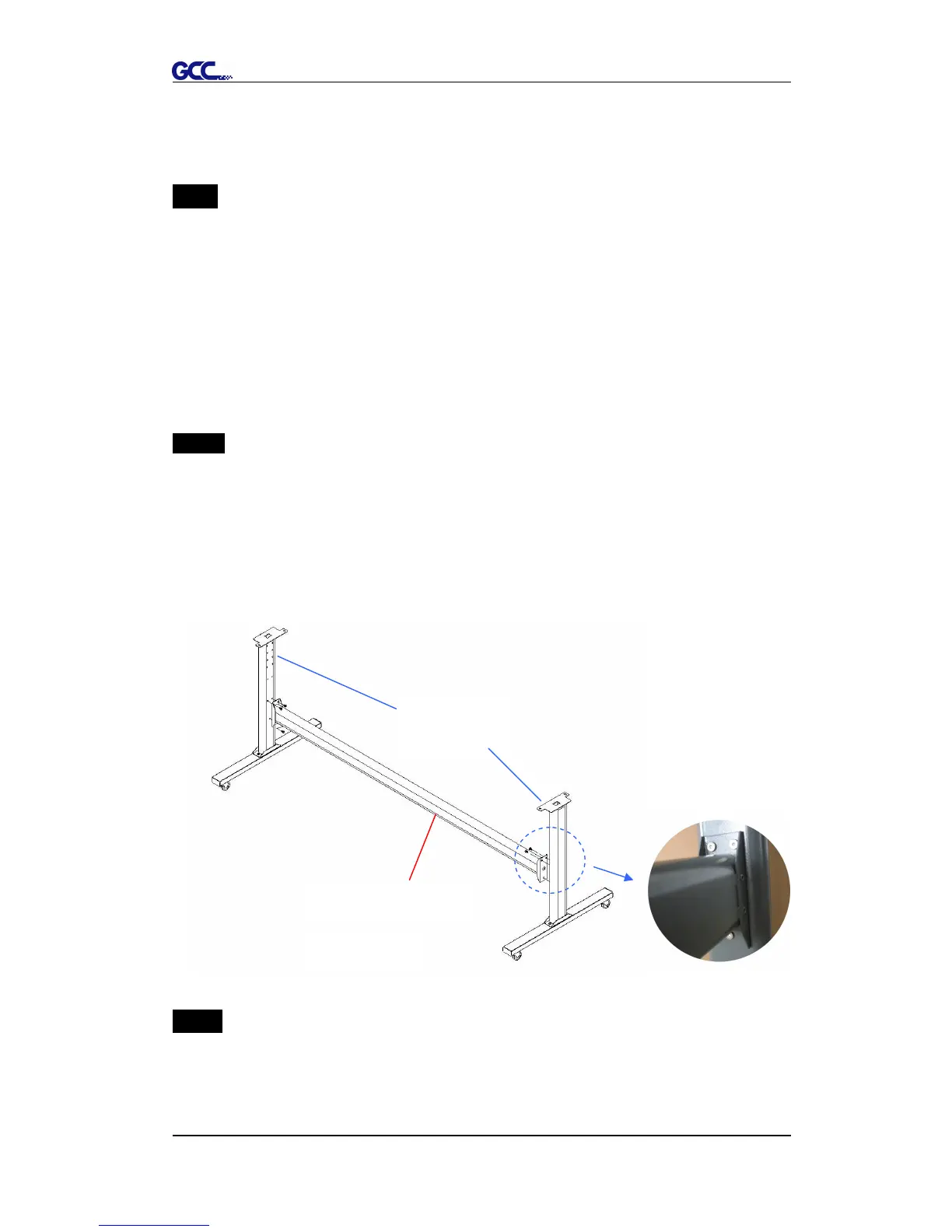

Figure 2-6
Figure 2-7
