Expert 24 LX User Manual
Installation
2-8

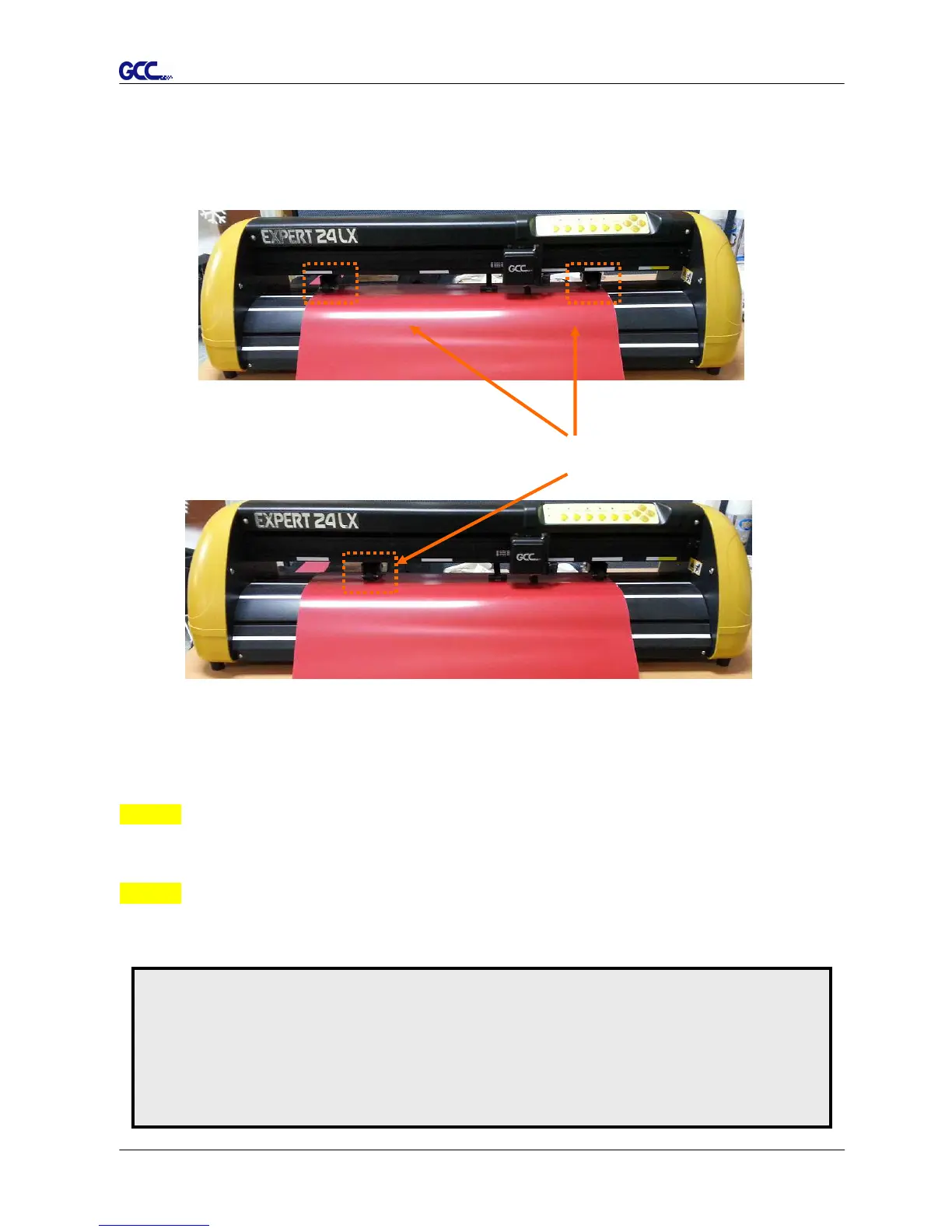

Figure 2-16
Figure 2-17
(O)
Correct
(X)
Incorrect
Pinch Roller
Step 4
Push the lever backward to lower down the pinch rollers (Figure 2-15).
Step 5
After turn on the power, the tool carriage will measure the size of the media automatically. And
the plotting cutter begins to work.
Note:
 Always adjust the position with the pinch rollers raised.
 Please reposition the pinch roller by holding the center of the pinch roller and moving it
from the rear end of the machine. (Figure 2-18)
 DO NOT move the pinch roller by holding its front rubber roller (Figure 2-19).
