Operation
3-4

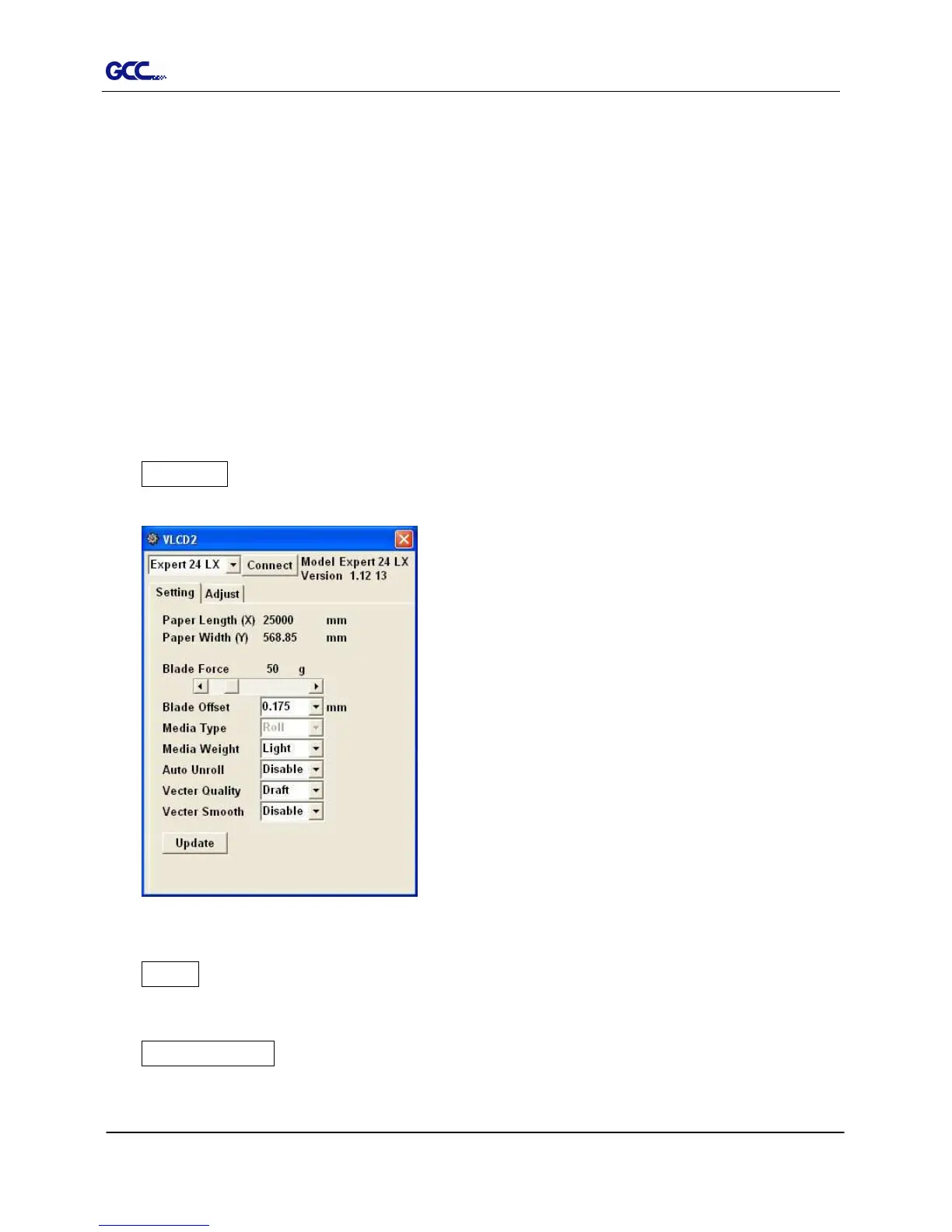

Figure 3-4
3.2.2 Functions of VLCD
Below are the functions adjustable in VLCD for Expert 24 LX.
 Poll Size
 Force
 Media Weight
 Offset
 AAS Offset
 Auto Unroll
 Update Setting
 Poll Size
Click on the Poll Size button will reveal the X/Y values.
In the case, the maximum plotting length is 25000mm,
and the distance between the farthest two pinch
rollers is 568.85mm (Figure 3-4).
 Force
To adjust the blade force between 0 and 250 (Default = 50).
 Media Weight
To choose different weights of media in two options: Heavy, and Light (Default).
