Puma II User’s Guide 2-11
2.5.3 Loading the Roll Media

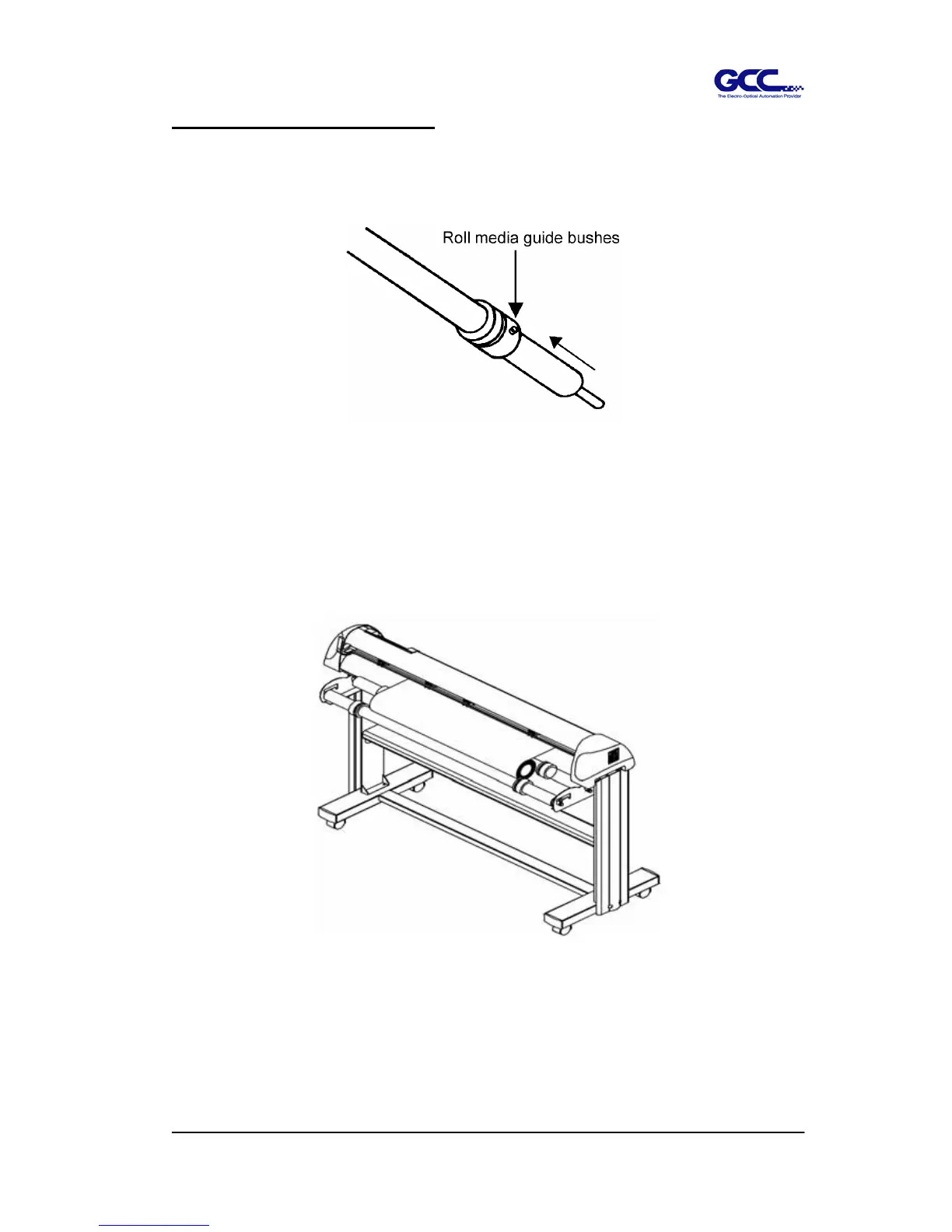

First, put the roll media guide bushes on two roll holders (Figure 2-16).
Option A (Recommended)
Insert the two roll holders into the roll media support set then place the roll media directly
between the two roll holders (Figure 2-17).
Figure 2-16
Figure 2-17
