Puma II User’s Guide 2-12
Option B (Use the media flanges)
1. Insert a roll media flange at the end of each roll media and tighten the thumbscrew
until the roll media is firmly gripped (Figure 2-18).
2. Then put the roll media on the roll holders. Adjust the position of the roll media ensure
that media flanges are able to run in the grooves of media guide bushes. (Figure 2-19)

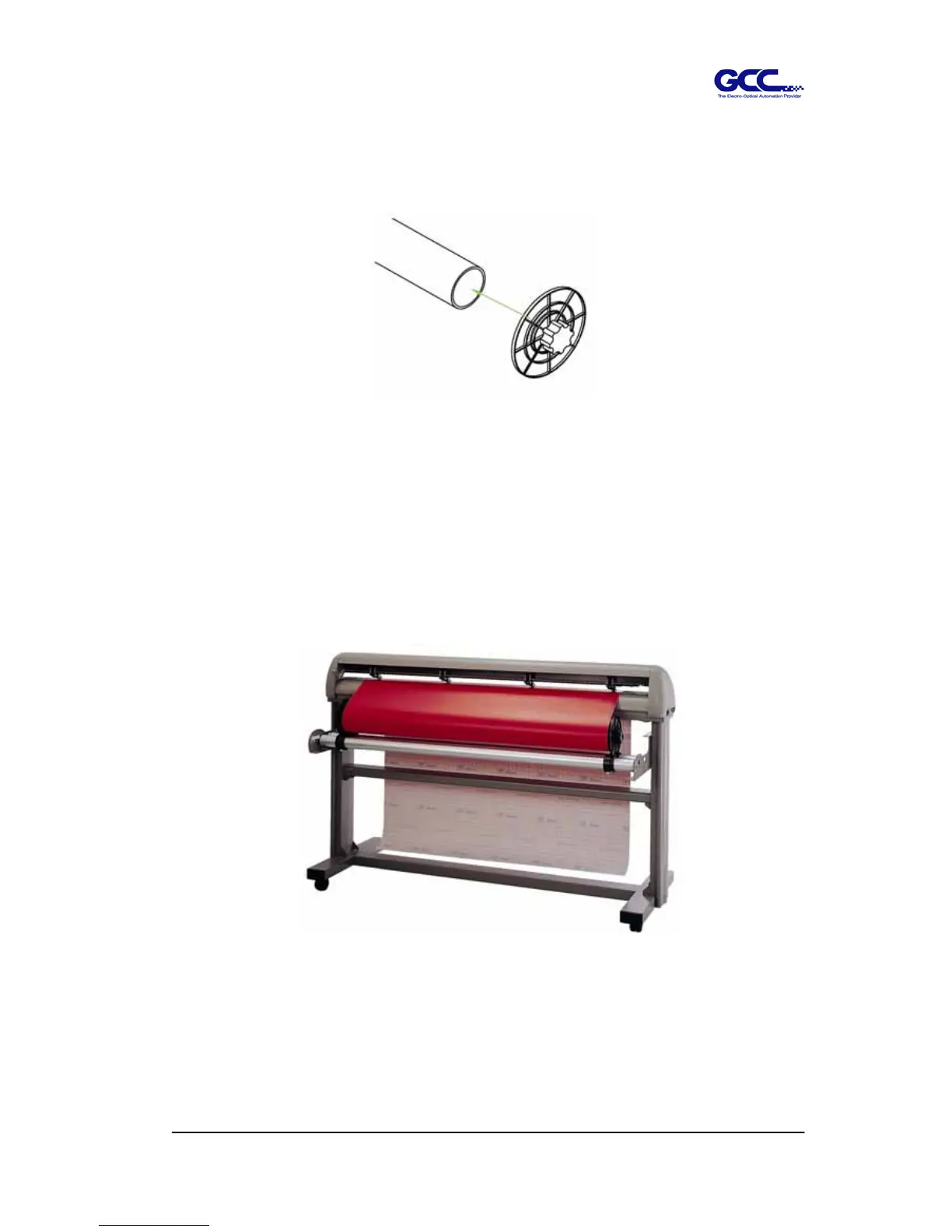

Figure 2-18
Figure 2-19
