Puma II User’s Guide 2-13

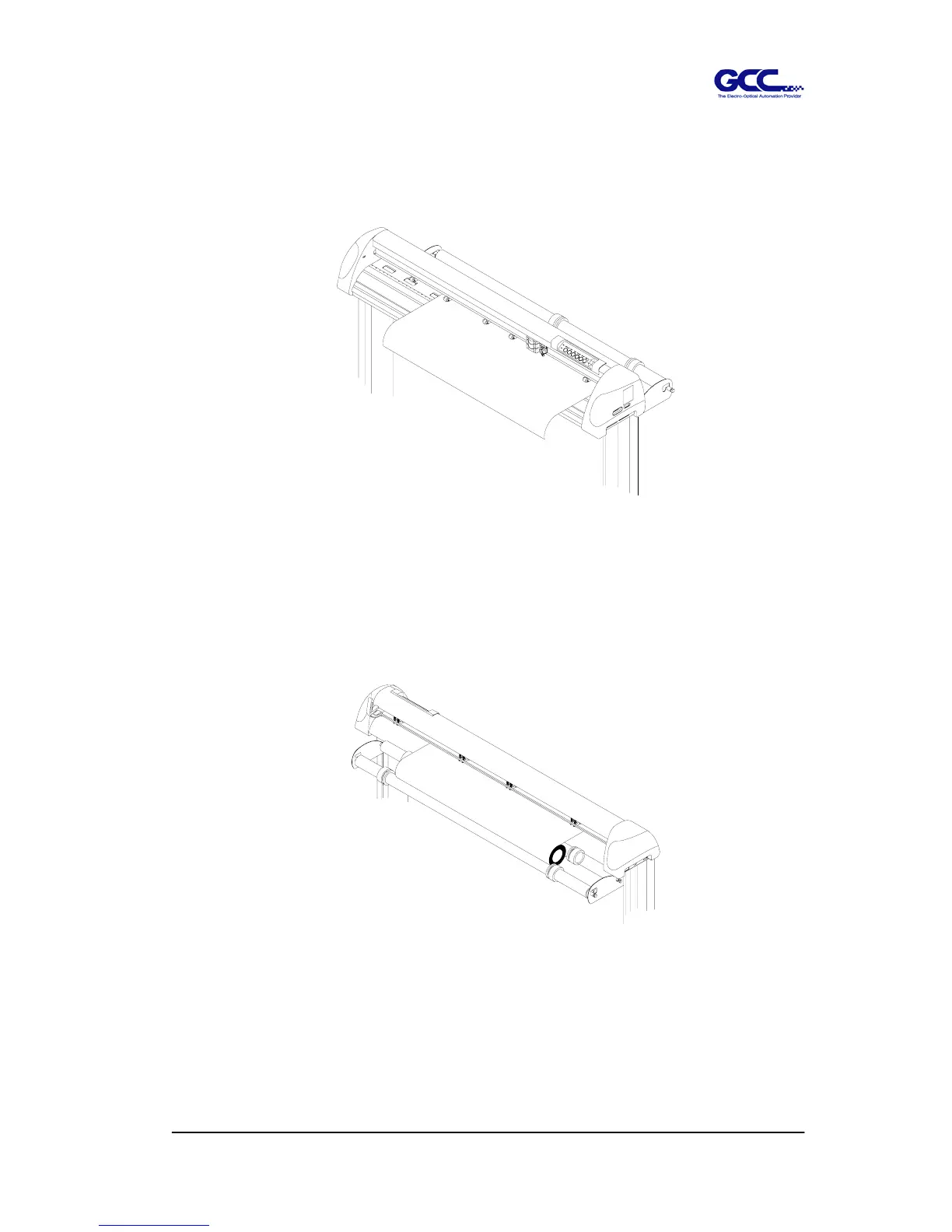

3. Loading the media on the platen. After loading the roll media, flatten the media on the
platen and hold the front edge of the roll media firmly (Figure 2-20).
4. Then turn the roll downward to make an equal tension across the media. (Figure 2-21)
Figure 2-20
Figure 2-21
