About the Tool
A generic term refer to the blade that cuts the sheet, the pen that does plotting, and
the LED bombsight (option) used for pointing to the reference point.

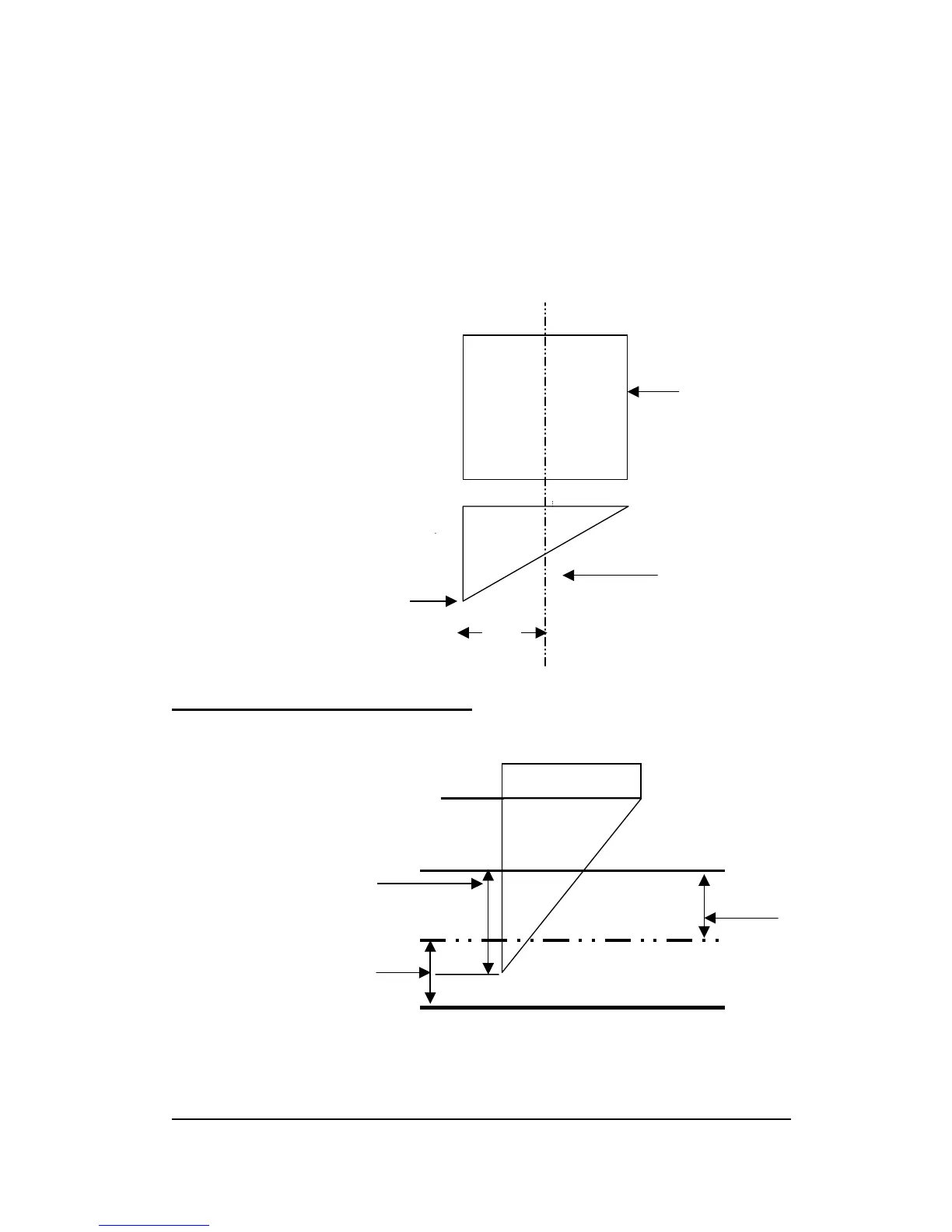

OFFSET is the distance that the blade tip is displaced from the centerline of the
blade.
II
Protrusion Length of the Blade
Length of protrusion = t1 + t 2/ 2, but for your convenience you may just make it about 0.3~ 0.5
mm beyond the blade holder tip.
Blade
Central line
Blade tip
Offset
Thickness of
the film (t1)
Thickness of the
base paper (t 2)
Protrusion length
of the blade
