Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting Description
12, 13 - +24 V DC 24 V DC supply
voltage. Maximum
output current is 200
mA total for all 24 V
loads. Usable for
digital inputs and
external transducers.
18 E-01 [8] Start
Digital inputs.
19 E-02 [0] No
operation
32 E-05 [0] No
operation
33 E-06 [0] No
operation
27 E-03 [0] No
operation
Selectable for either
digital input or
output. Default setting
is input.
29 E-04 [14] JOG
20 - Common for digital
inputs and 0 V
potential for 24 V
supply.
Analog Inputs/Outputs
39 -
Common for analog
output
42 AN-50 Speed 0 -
High Limit
Programmable analog
output. The analog
signal is 0–20 mA or
4-20 mA at a
maximum of 500
Ω
50 - +10 V DC 10 V DC analog
supply voltage. 15 mA
maximum commonly
used for potenti-
ometer or thermistor.
53 AN-1# Reference Analog input.
Selectable for voltage
or current. Switches
A53 and A54 select
mA or V.
54 AN-2# Feedback
55 -
Common for analog
input
Serial Communication
61 -
Integrated RC filter for
cable shield. ONLY for
connecting the shield
when experiencing
EMC problems.
Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting Description
68 (+) O-3# RS-485 Interface. A
control card switch is
provided for
termination resistance.
69 (-) O-3#
Relays
01, 02, 03 E-24 [0] [0] Alarm Form C relay output.
Usable for AC or DC
voltage and resistive
or inductive loads.
04, 05, 06 E-24 [1] [0] Running
Table 2.4 Terminal Description
2.5.8.3 Wiring to Control Terminals
Control terminal connectors can be unplugged from the
adjustable frequency drive for ease of installation, as
shown in Figure 2.30.

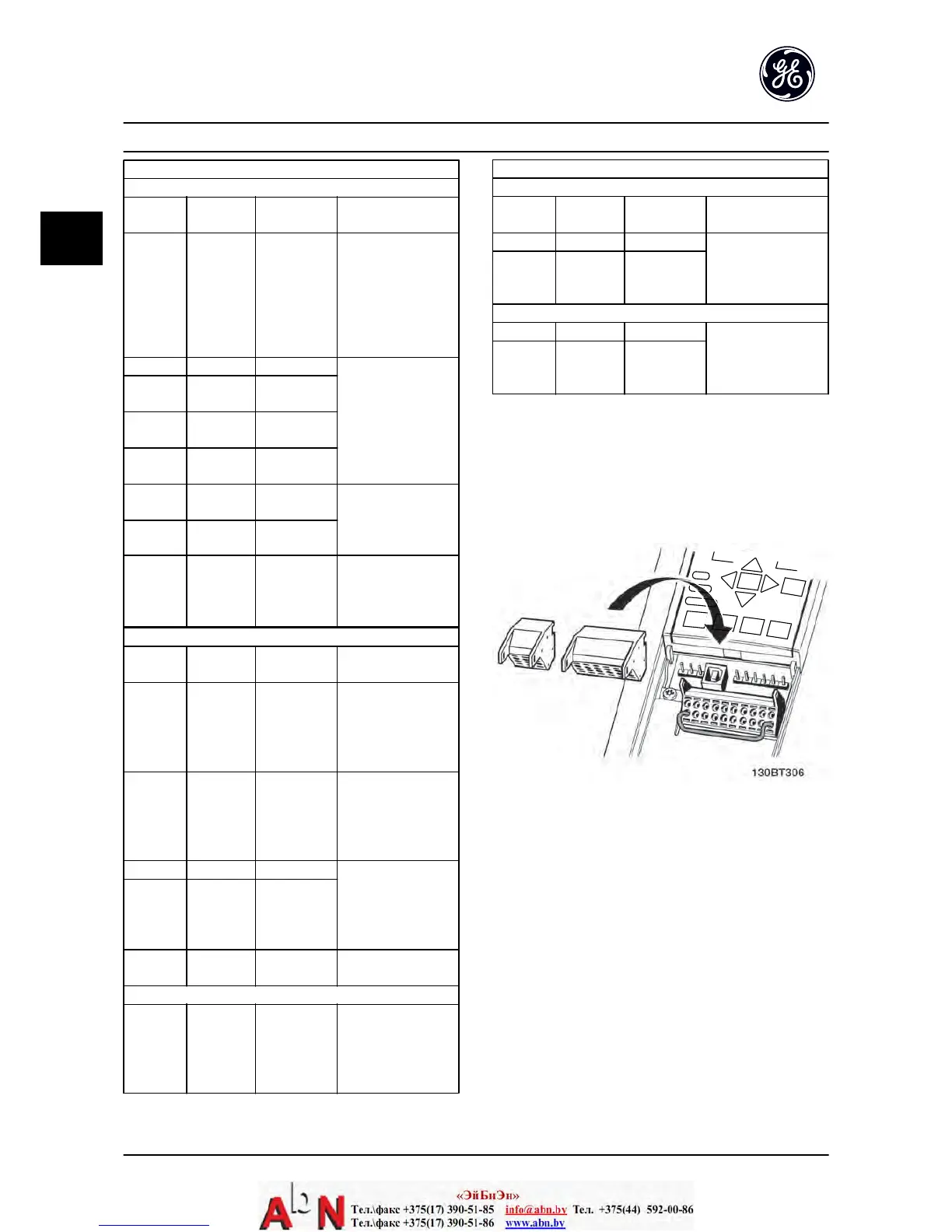

Figure 2.30 Unplugging Control Terminals
1. Open the contact by inserting a small screwdriver
into the slot above or below the contact, as
shown in Figure 2.31.
2. Insert the bared control wire into the contact.
3. Remove the screwdriver to fasten the control wire
into the contact.
4. Ensure the contact is firmly established and not
loose. Loose control wiring can be the source of
equipment faults or less than optimal operation.
