3. Scroll to parameter group E-0# Digital Inputs and
press [OK]
4. Scroll to E-01 Terminal 18 Digital Input. Press [OK]
to access function choices. The default setting
Start is shown.

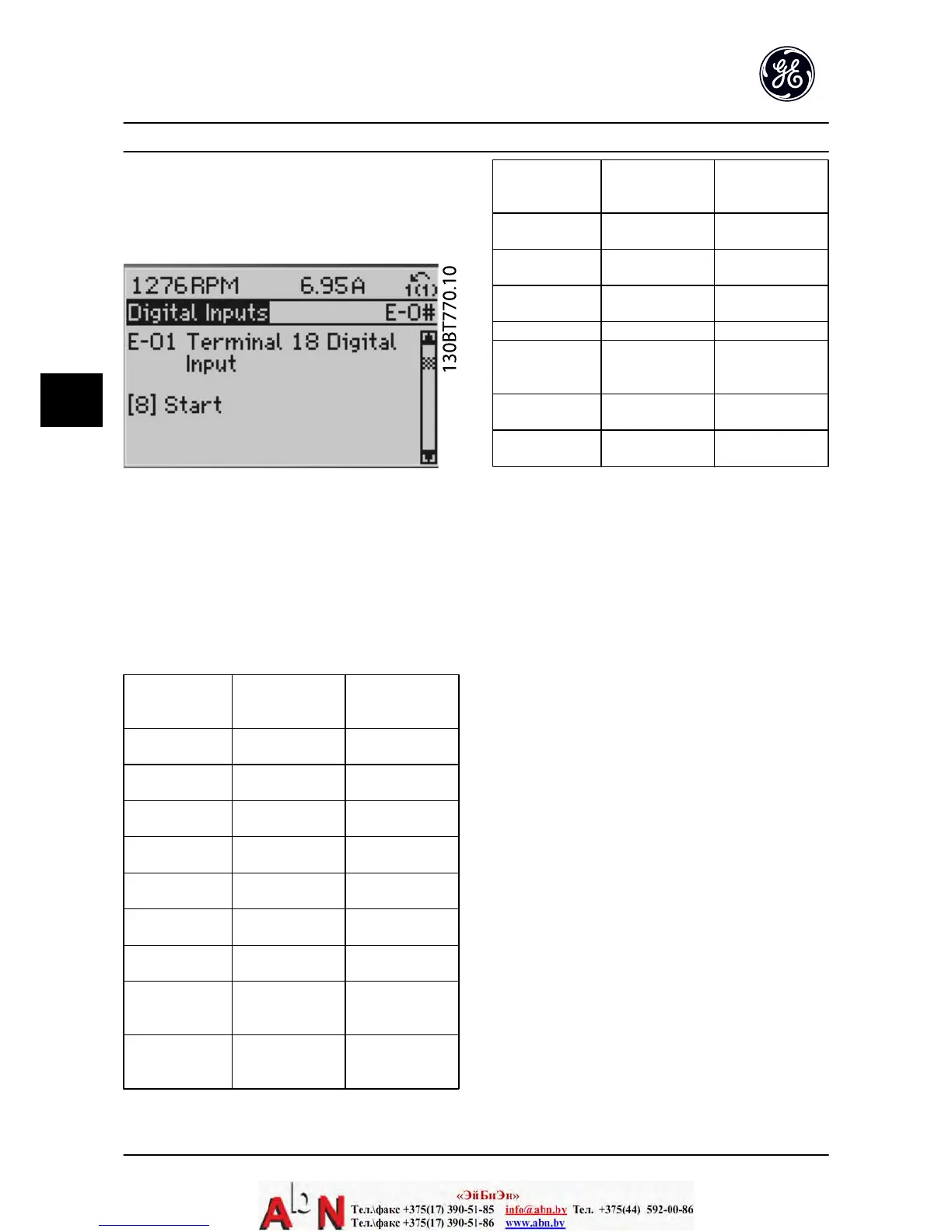

Figure 5.11
5.4 International/North American Default
Parameter Settings
Setting K-03 Regional Settings to [0] International or [1]
North America changes the default settings for some
parameters. Table 5.1 lists those parameters that are
effected.
Parameter International
default parameter
value
North American
default parameter
value
K-03 Regional
Settings
International North America
P-07 Motor Power
[kW]
See Note 1 See Note 1
P-02 Motor Power
[HP]
See Note 2 See Note 2
F-05 Motor Rated
Voltage
230 V/400 V/575 V 208 V/460 V/575 V
F-04 Base
Frequency
50 Hz 60 Hz
F-53 Maximum
Reference
50 Hz 60 Hz
F-54 Reference
Function
Sum External/Preset
F-17 Motor Speed
High Limit [RPM]
See Note 3 and 5
1500 PM 1800 RPM
F-15 Motor Speed
High Limit [Hz]
See Note 4
50 Hz 60 Hz
Parameter International
default parameter
value
North American
default parameter
value
F-03 Max Output
Frequency 1
132 Hz 120 Hz
H-73 Warning
Speed High
1500 RPM 1800 RPM
E-03 Terminal 27
Digital Input
Coast inverse External interlock
E-24 Function Relay No operation No alarm
AN-15 Terminal 53
High Ref./Feedb.
Value
50 60
AN-50 Terminal 42
Output
No operation Speed 4–20 mA
H-04 Auto-Reset
(Times)
Manual reset Infinite auto reset
Table 5.1 International/North American Default Parameter Settings
Note 1: P-07 Motor Power [kW] is only visible when K-03 Regional
Settings is set to [0] International.
Note 2: P-02 Motor Power [HP], is only visible when K-03 Regional
Settings is set to [1] North America.
Note 3: This parameter is only visible when K-02 Motor Speed Unit is
set to [0] RPM.
Note 4: This parameter is only visible when K-02 Motor Speed Unit is
set to [1] Hz.
Note 5: The default value depends on the number of motor poles. For
a 4-poled motor, the international default value is 1500 RPM, and for
a 2-poled motor, 3000 RPM. The corresponding values for North
America is 1800 and 3600 RPM, respectively.
