5.4.1 Parameter Data Check
1. Press [Quick Menu].
2. Scroll to Parameter Data Check and press [OK].

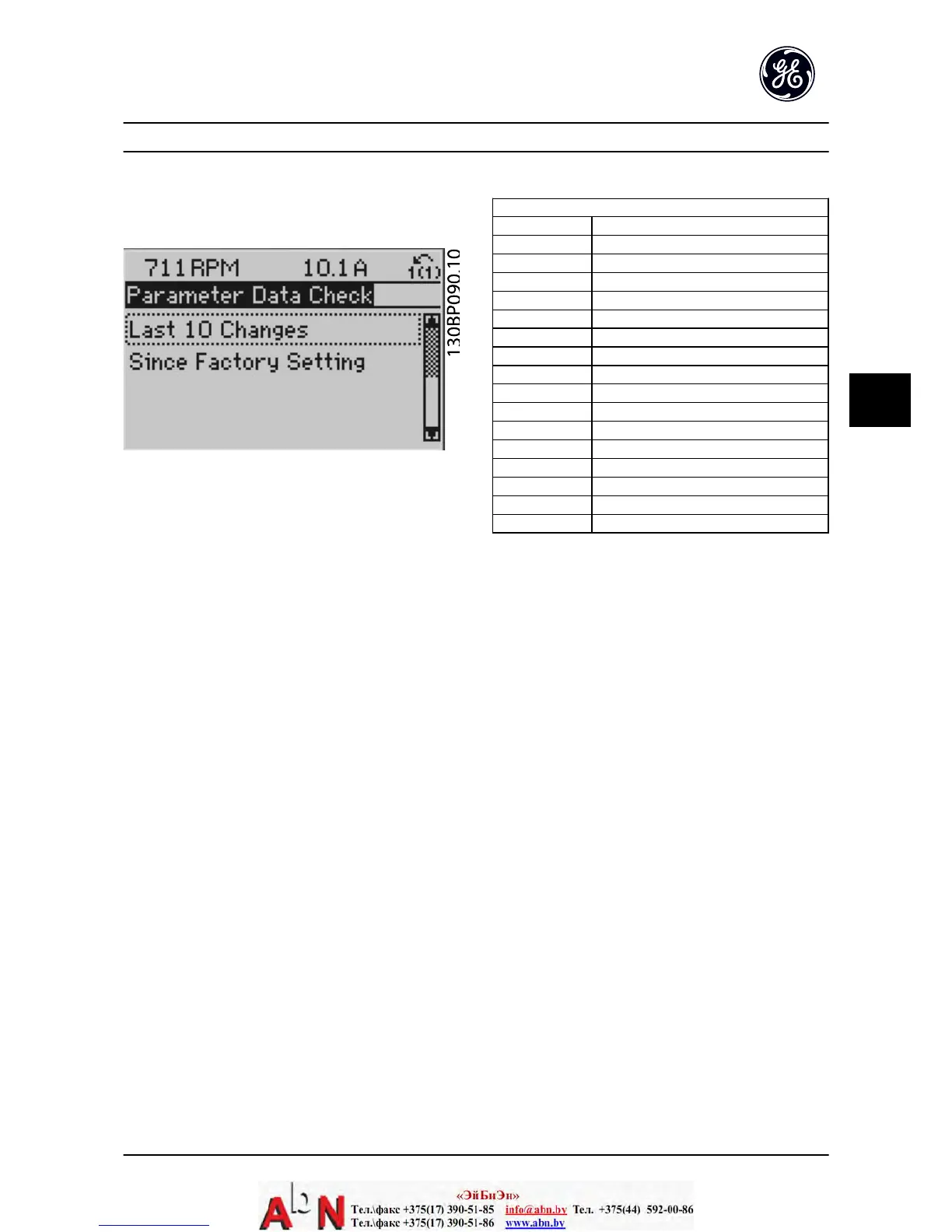

Figure 5.12
3. Select Parameter Data Check to view all
programming changes or Last 10 Changes for the
most recent.
5.5 Parameter Menu Structure
Establishing the correct programming for applications
often requires setting functions in several related
parameters. These parameter settings provide the
adjustable frequency drive with system details it needs to
operate properly. System details may include such things
as input and output signal types, programming terminals,
minimum and maximum signal ranges, custom displays,
automatic restart, and other features.
•
See the keypad display to view detailed
parameter programming and setting options
•
Press [Info] in any menu location to view
additional details for that function.
•
Press and hold [Main Menu] to enter a parameter
number for direct access to that parameter
•
Details for common application set ups are
provided in 6 Application Set-up Examples.
5.5.1 Quick Menu Structure
Quick Start
K-01 Language
K-02 Motor Speed Unit
P-02 Motor Power [HP]
P-07 Motor Power [kW]
F-05 Motor Rated Voltage
P-03 Motor Current
F-04 Base Frequency
P-06 Base Speed
F-01 Frequency Setting 1
F-02 Operation Method
F-07 Accel Time 1
F-08 Decel Time 1
F-10 Electronic Overload
F-15 Motor Speed High Limit [Hz]
F-16 Motor Speed Low Limit [Hz]
H-08 Reverse Lock
P-04 Auto Tune
Table 5.2
About Programming AF-600 FP Design and Installation Guide
DET-768A 5-5
5
