4 User Interface
4.1 Keypad
The keypad is the combined display and keys on the front
of the unit. The keypad is the user interface to the
adjustable frequency drive.
The keypad has several user functions.
•
Start, stop, and control speed when in local
control
•
Display operational data, status, warnings and
cautions
•
Programming adjustable frequency drive
functions
•
Manually reset the adjustable frequency drive
after a fault when auto-reset is inactive
NOTE!
The display contrast can be adjusted by pressing [Status]
and [
▲
]/[
▼
] key.
4.1.1 Keypad Layout
The keypad is divided into four functional groups (see
Figure 4.1).

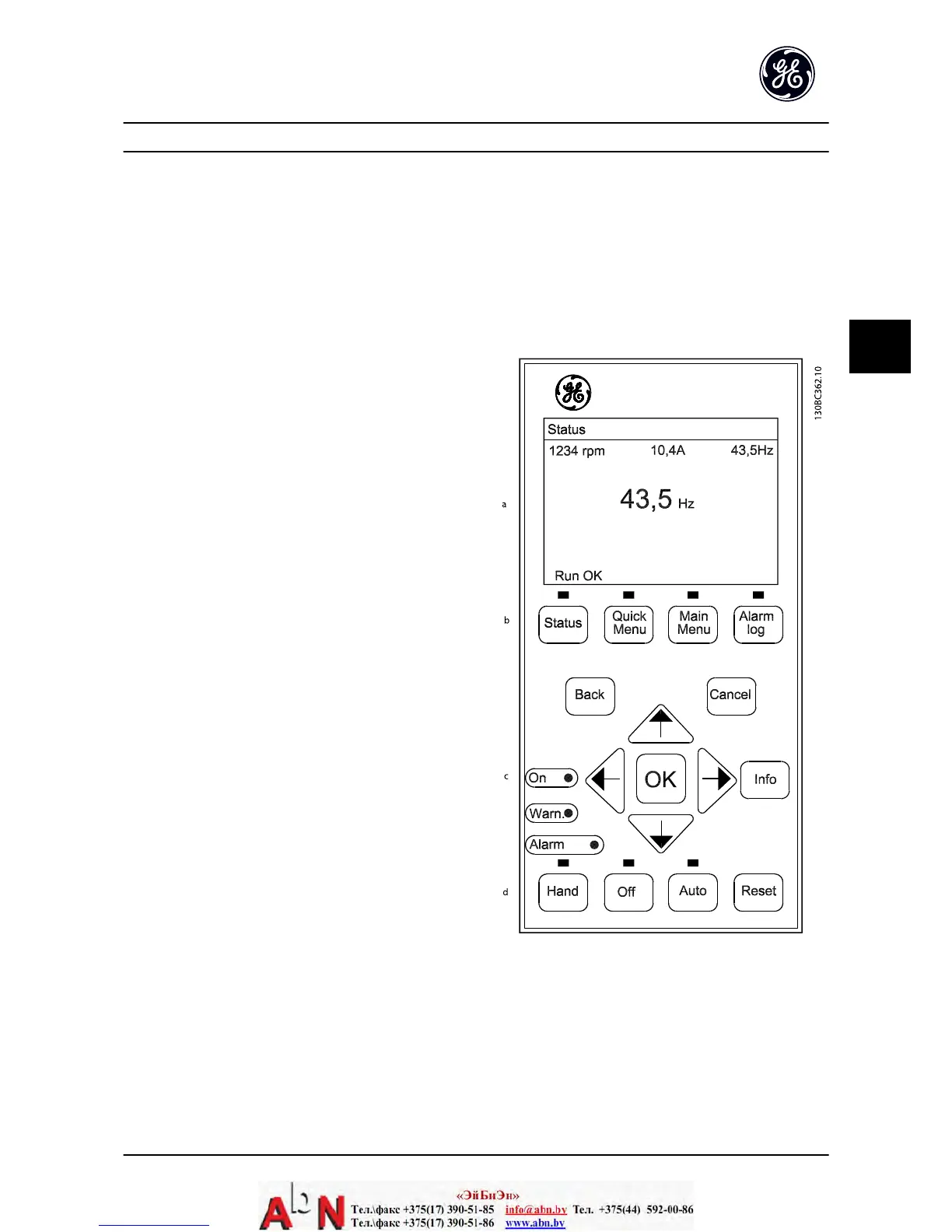

Figure 4.1 keypad
a. Display area.
b. Display menu keys for changing the display to
show status options, programming, or error
message history.
c. Navigation keys for programming functions,
moving the display cursor, and speed control in
User Interface AF-600 FP Design and Installation Guide
DET-768A 4-1
4
