5About Programming
5.1 Introduction
The adjustable frequency drive is programmed for its
application functions using parameters. Parameters are
accessed by pressing either [Quick Menu] or [Main Menu]
on the keypad. (See 4 User Interface for details on using
the keypad function keys.) Parameters may also be
accessed through a PC using the DCT-10.
The quick menu is intended for initial start-up and detailed
instructions for common adjustable frequency drive
applications. Step-by-step instructions are provided. These
instructions enable the user to walk through the
parameters used for programming applications in their
proper sequence. Data entered in a parameter can change
the options available in the parameters following that
entry. The quick menu presents easy guidelines for getting
most systems up and running.
The main menu accesses all parameters and allows for
advanced adjustable frequency drive applications.
5.2 Programming Example
Here is an example for programming the adjustable
frequency drive for a common application in open-loop
using the quick menu.
•
This procedure programs the adjustable
frequency drive to receive a 0–10 V DC analog
control signal on input terminal 53
•
The adjustable frequency drive will respond by
providing 20–50 Hz output to the motor propor-
tional to the input signal (0–10 V DC =20–50 Hz)
Select the following parameters using the navigation keys
to scroll to the titles and press [OK] after each action.
1. F-01 Frequency Setting 1

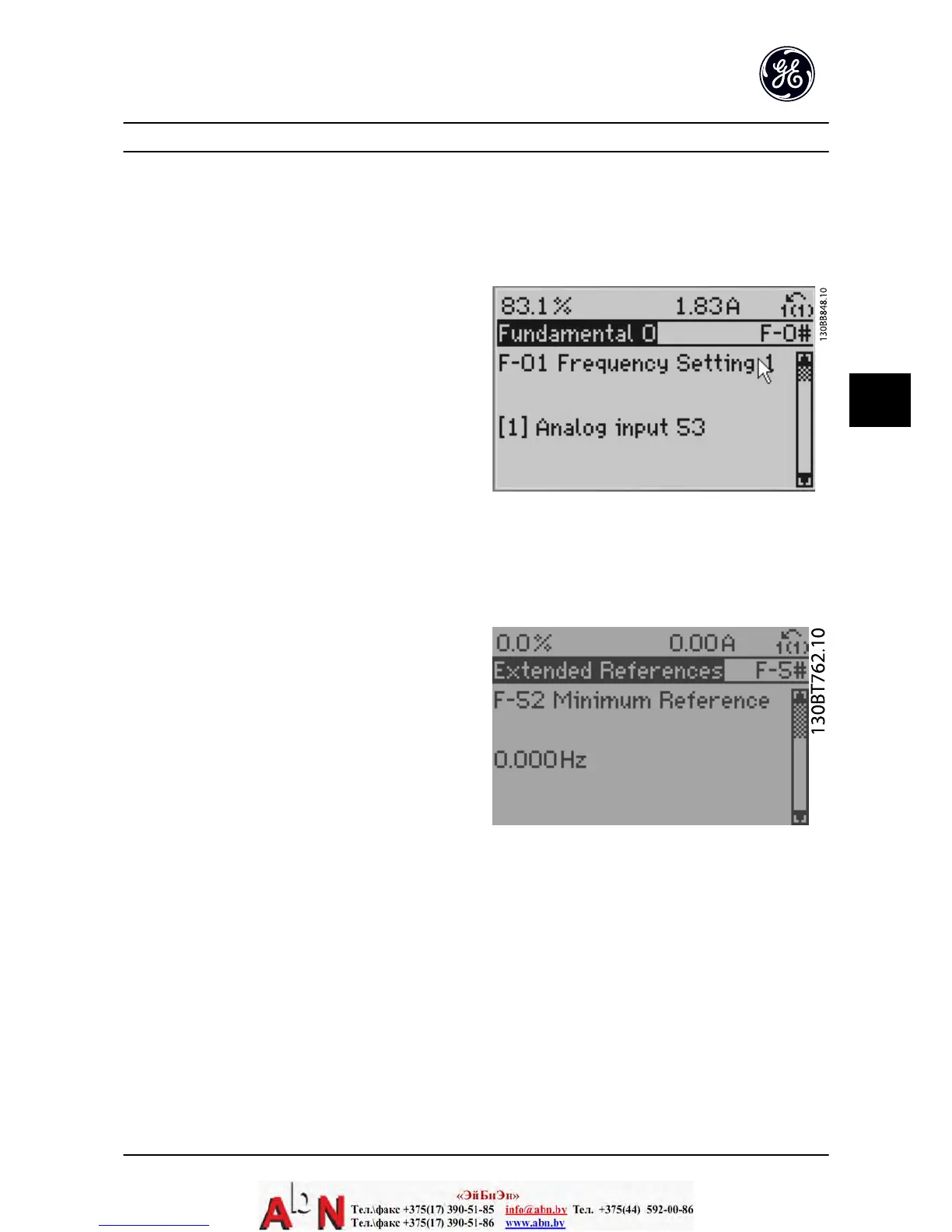

Figure 5.1
2. F-52 Minimum Reference. Set minimum internal
adjustable frequency drive reference to 0 Hz.
(This sets the minimum adjustable frequency
drive speed at 0 Hz.)
Figure 5.2
About Programming AF-600 FP Design and Installation Guide
DET-768A 5-1
5
