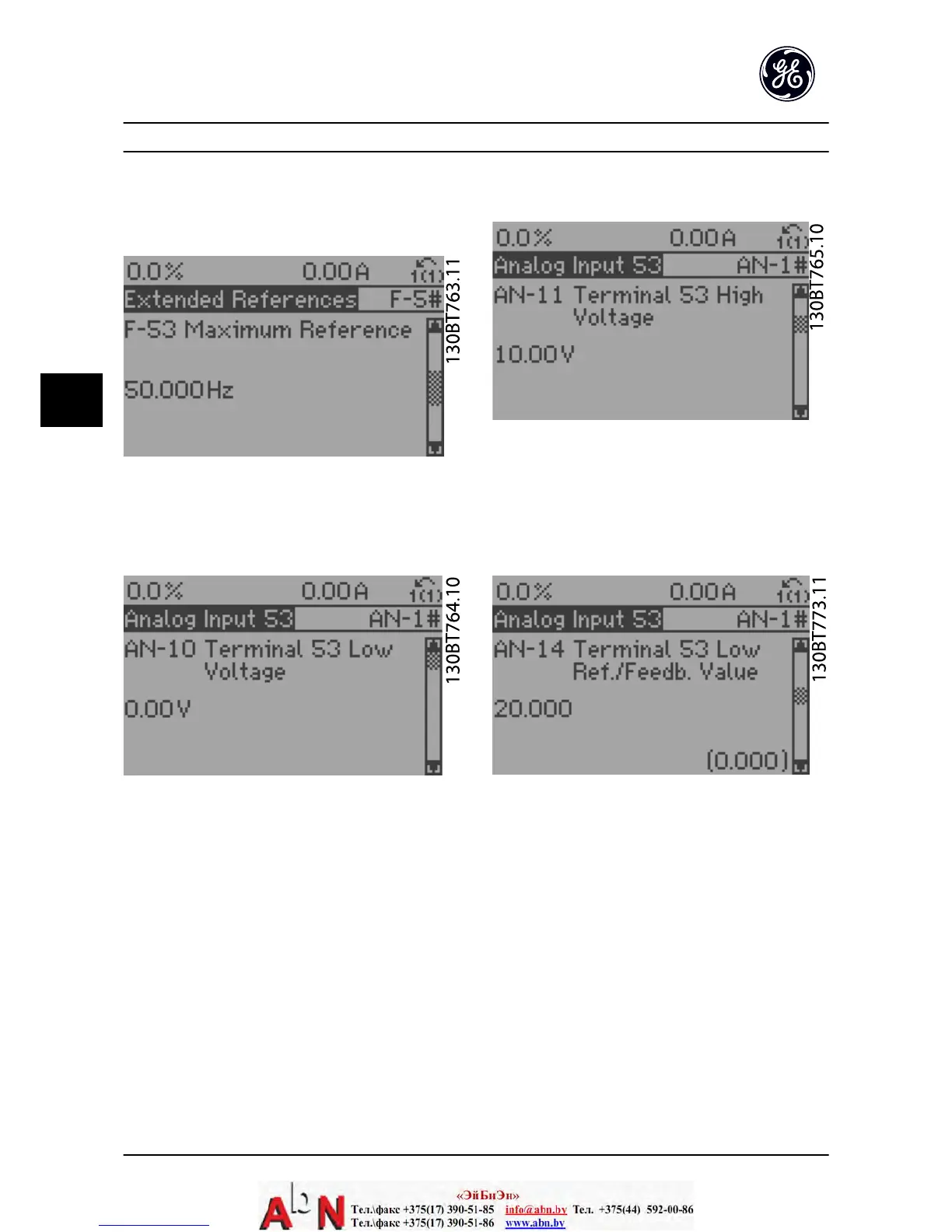

3. F-53 Maximum Reference. Set maximum internal
adjustable frequency drive reference to 50 Hz.
(This sets the maximum adjustable frequency
drive speed at 60 Hz. Note that 50 Hz is a
regional variation.)
Figure 5.3
4. AN-10 Terminal 53 Low Voltage. Set minimum
external voltage reference on Terminal 53 at 0 V.
(This sets the minimum input signal at 0 V.)
Figure 5.4
5. AN-11 Terminal 53 High Voltage. Set maximum
external voltage reference on Terminal 53 at 10 V.
(This sets the maximum input signal at 10 V.)
Figure 5.5
6. AN-14 Terminal 53 Low Ref./Feedb. Value. Set
minimum speed reference on Terminal 53 at 20
Hz. (This tells the adjustable frequency drive that
the minimum voltage received on Terminal 53 (0
V) equals 20 Hz output.)
Figure 5.6
