Parameters
Function Setting
E-01 Terminal 18
Digital Input
[9] Latched
Start
E-03 Terminal 27
Digital Input
[6] Stop
Inverse
* = Default Value
Notes/comments:

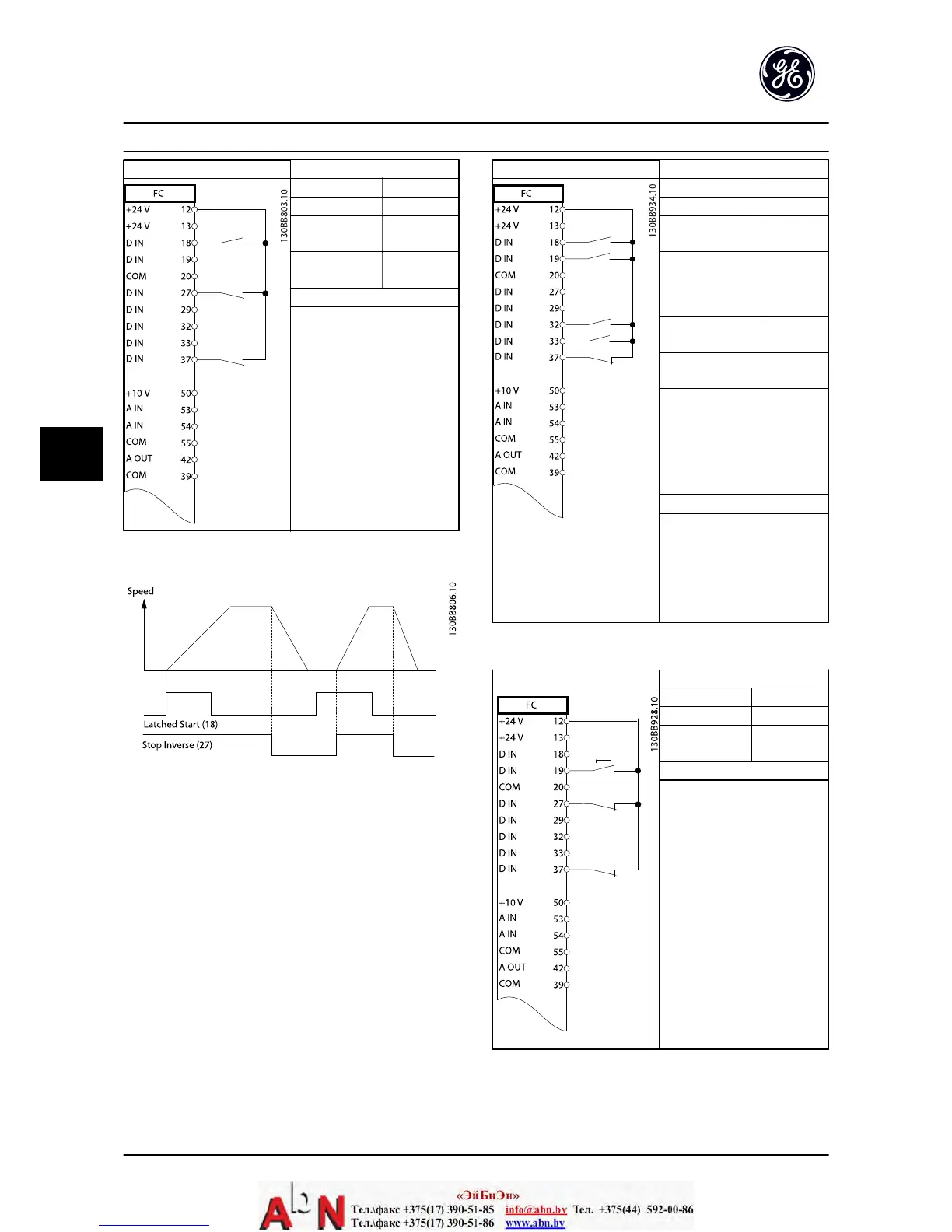

Table 6.3 Pulse Start/Stop
Figure 6.2
Parameters
Function Setting
E-01 Terminal 18
Digital Input
[8] Start
E-02 Terminal 19
Digital Input
[10]
Reversing*
E-05 Terminal 32
Digital Input
[16] Preset
ref bit 0
E-06 Terminal 33
Digital Input
[17] Preset
ref bit 1
C-05 Multi-step
Frequency 1 - 8
Preset ref. 0
Preset ref. 1
Preset ref. 2
Preset ref. 3
25%
50%
75%
100%
* = Default Value
Notes/comments:
Table 6.4 Start/Stop with Reversing and Four Preset Speeds
Parameters
Function Setting
E-02 Terminal 19
Digital Input
[1] Reset
* = Default Value
Notes/comments:
Table 6.5 External Alarm Reset
