GE HEALTHCARE 

IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION

Page 110 Section 2.0 - Mounting Data, Including Seismic

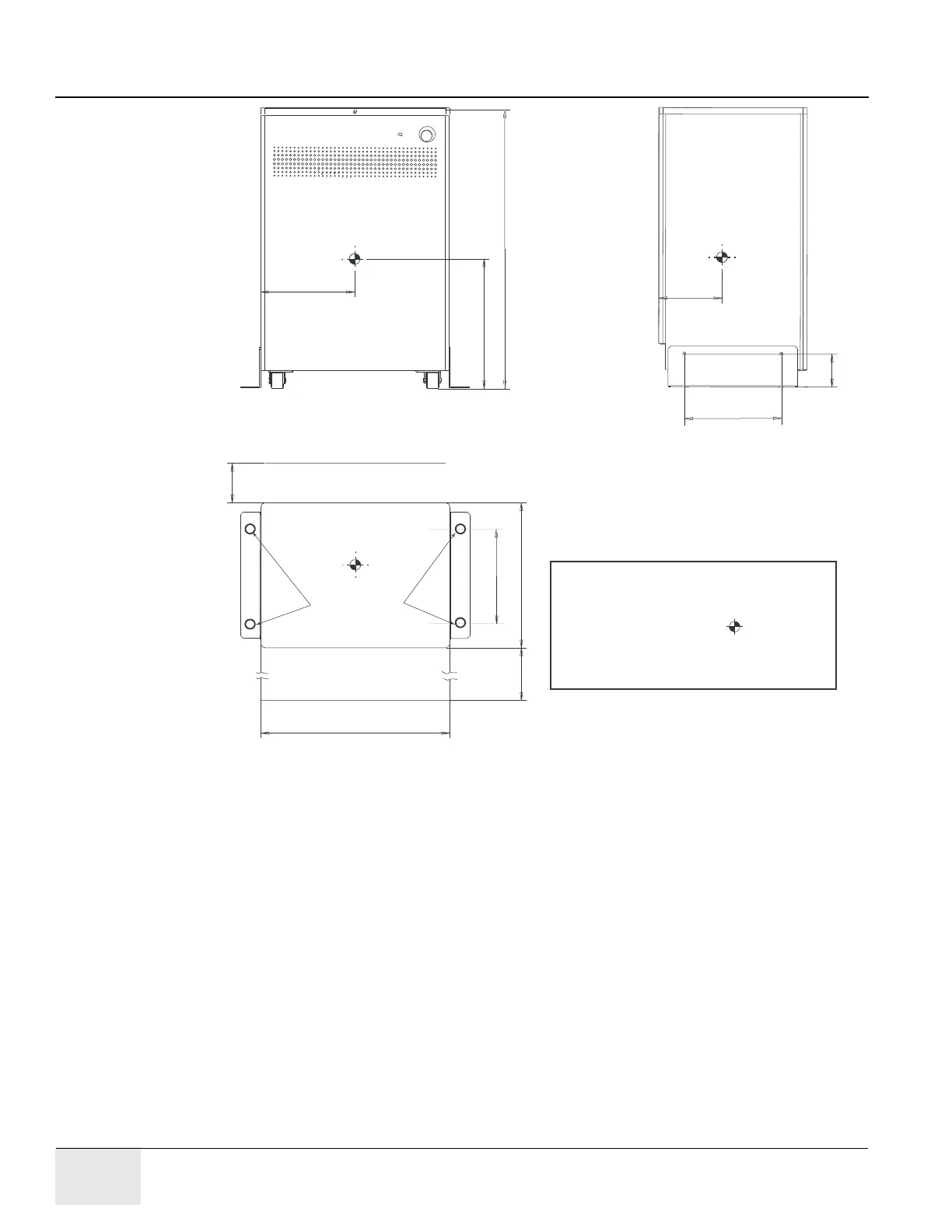

Figure 6-6 Power Distribution Unit (NGPDU)

SERVICE AREA

MINIMUM AIR FLOW CLEARANCE

NOTES:

DIMENSIONS ARE IN INCHES (MILLIMETERS).

INDICATES CENTER OF GRAVITY

Current PDU Seismic Bracket has holes alreadly drilled.

Drill holes on the floor accordingly.

13.8

(350)

19.4

(494)

5.9

(150)

41.8

(1062)

27.6

(700)

35.4

(900)

21.7 (550)

9.3

(235)

4.9

(125)

14.2

(360)

SEISMIC

MOUNTING HOLES

SEISMIC FLOOR

MOUNTING HOLES

(not to scale; see note)

14.2 (360)
