GE BrightSpeed Elite - Patient Table (GT1700)

GE HEALTHCARE 
D
IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Chapter 6 - Floor Loading and Weights Page 109
6 – Floor Loading

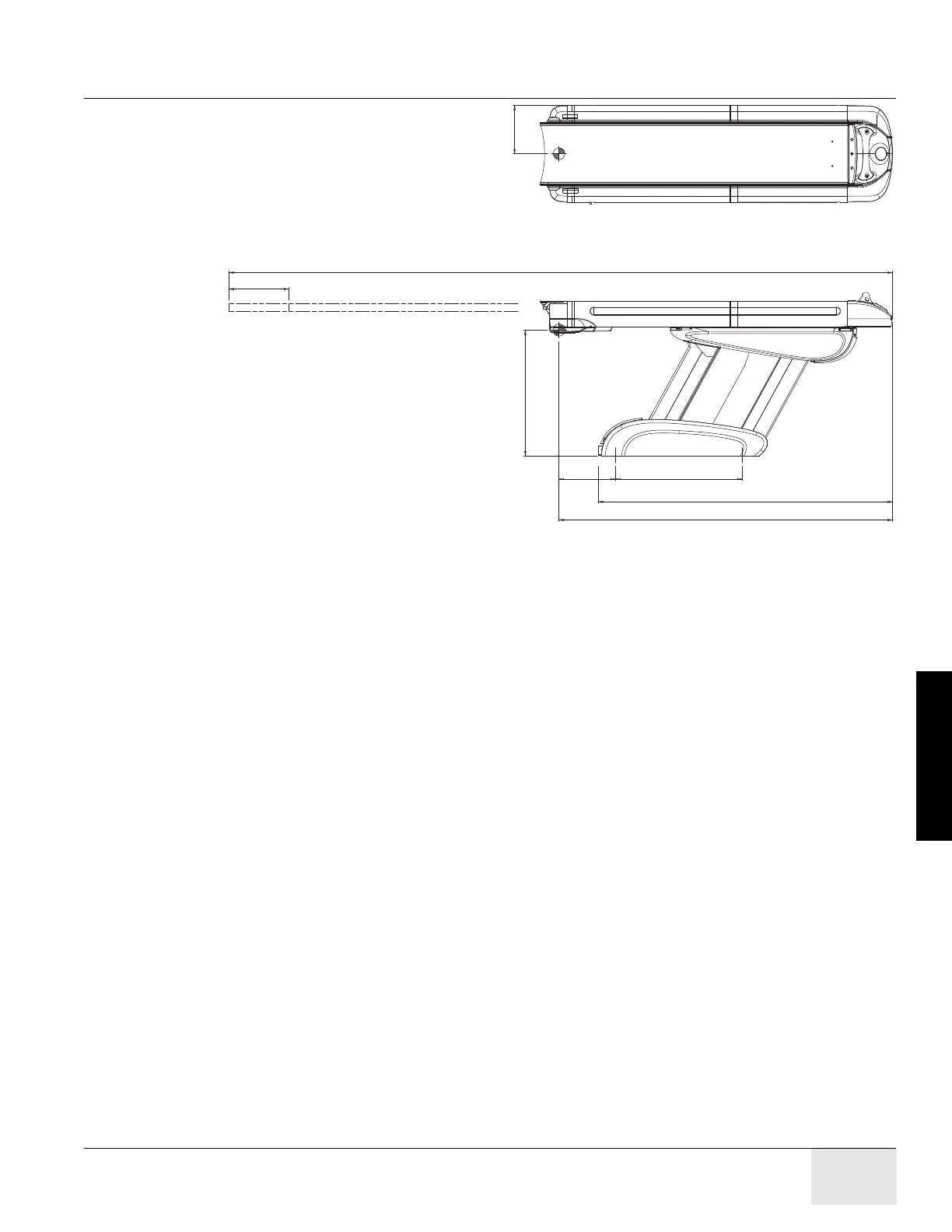

Figure 6-5 Patient Table (GT1700)
Note: See Figure 4-7 for cradle operational limits.
378
(1ft. 2 7/8in.)
854
(2ft. 9 5/8in.)
2242
(7ft. 4 1/4in.)
1979
(6ft. 5 7/8in.)
844 (2ft. 9 1/4in.)
400
CRADLE EXTENDER
NOTE
CENTER OF GRAVITY IS
WITH 227KG PATIENT
FULLY EXTENDED
4461
(14ft. 7 5/8in.)
ANCHOR ANCHOR
325
(1ft. 3/4in.)
(1ft. 3 3/4in.)
