4 – Room Planning

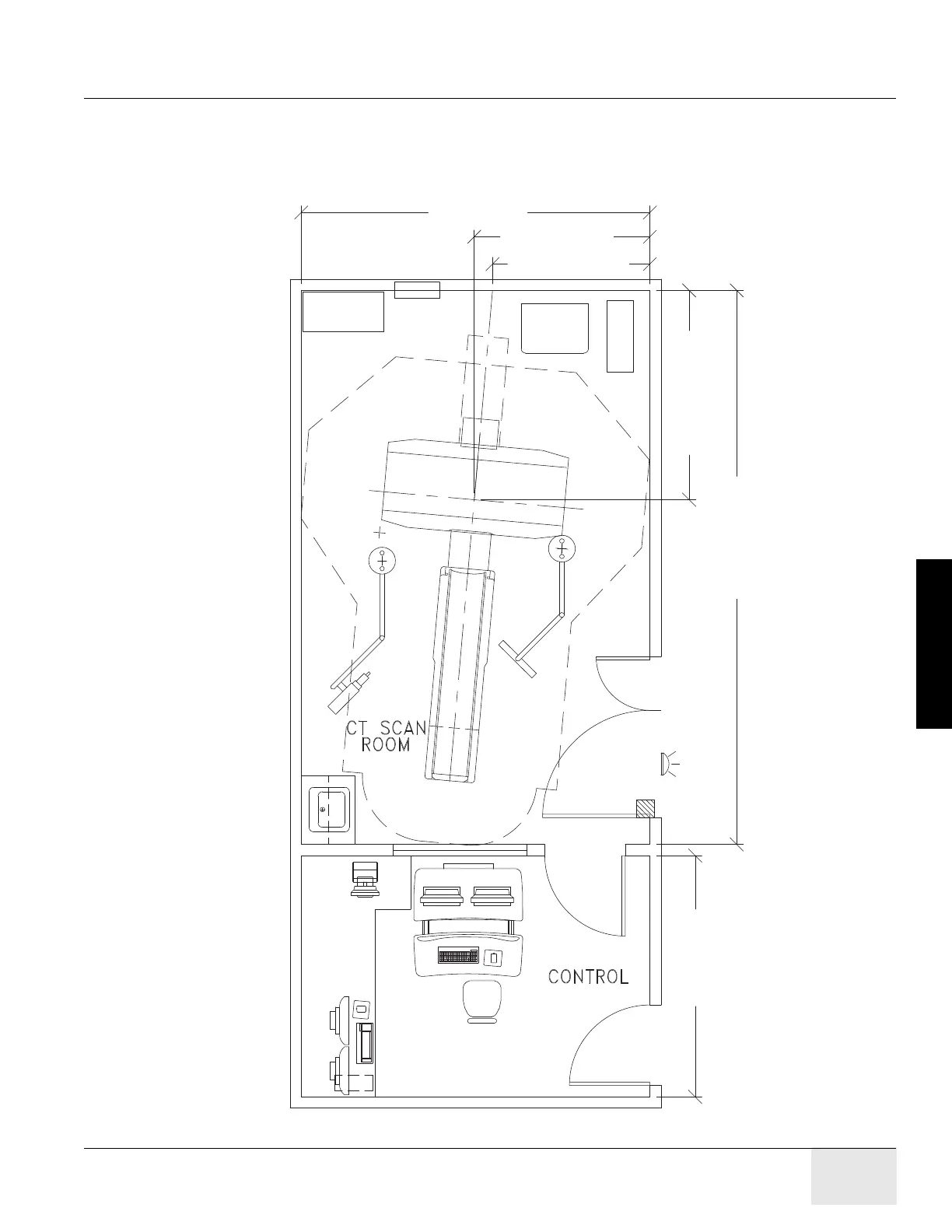

2.2.5 Recommended Room Size & Requirement Layouts
Note: Your room layout may meet the Recommended or Typical room requirements but look different than
the room shown below. Contact your sales person to have a detail room layout completed for your
site.
3962 mm (13 ft.)
2007 mm (6 ft. 7in.)
1778 mm (5 ft. 10 in.)
2388 mm (7 ft. 10 in.)
6299 mm (20 ft. 8 in.)
2743 mm (9 ft.)
