GE HEALTHCARE 

IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION

Chapter 4 - Room Planning Page 95

4 – Room Planning

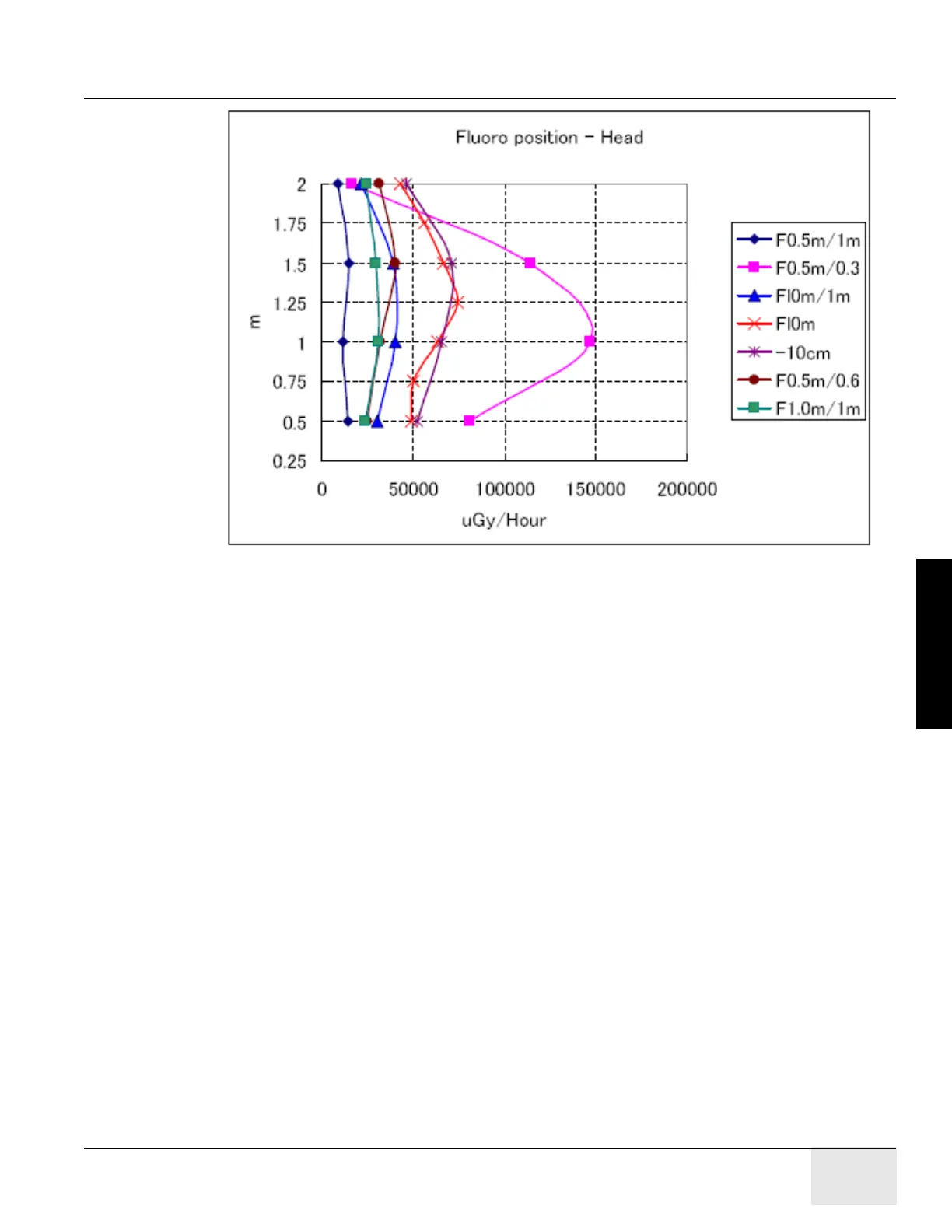

Figure 4-26 Scatter Plot of Fluoro - Head
