6.4 Freedom Workspace Table
Height of Freedom Workspace is adjustable.

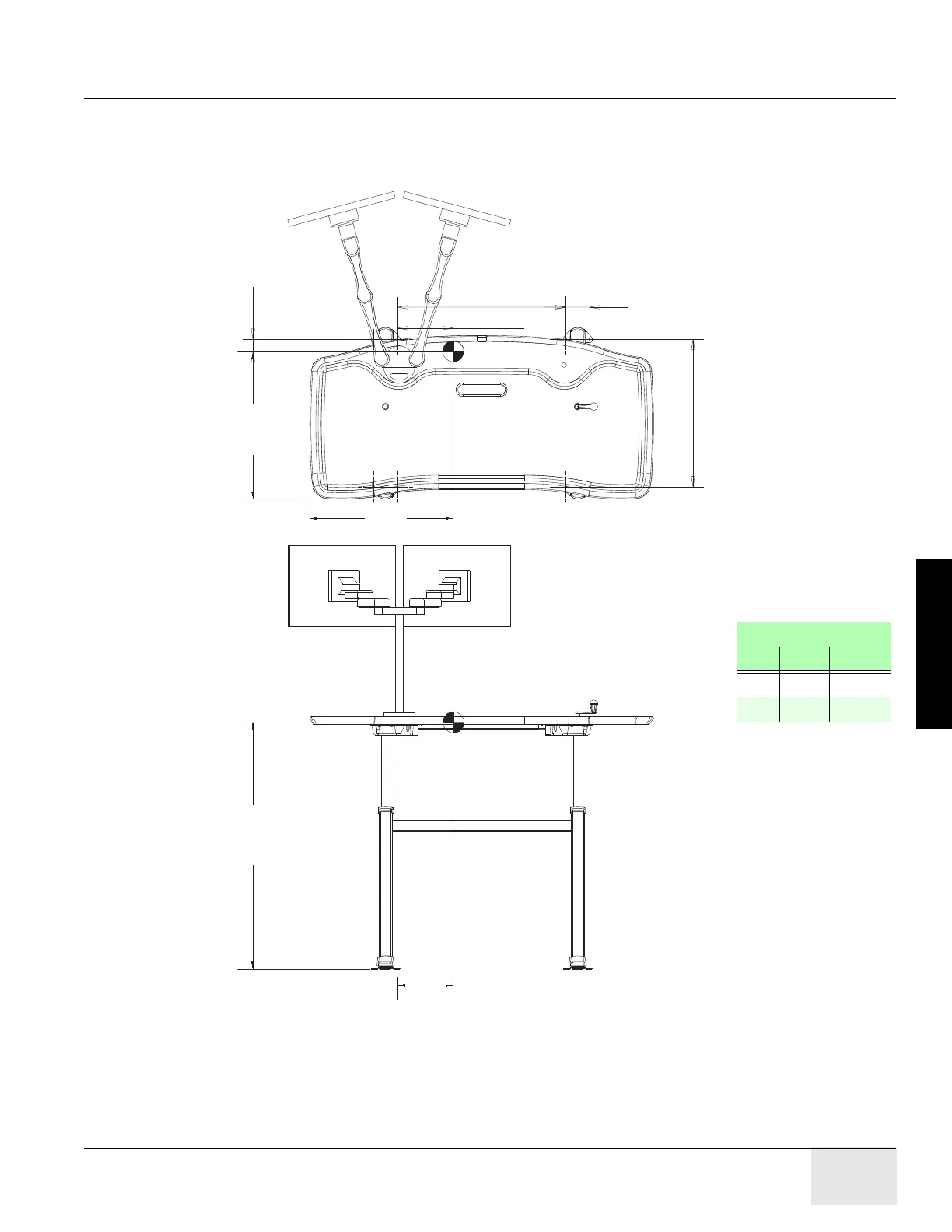

Figure 4-15 Freedom Workspace Table (part 5160735)
Height
Seismic Bracket
Supplied with FWS
Attach seismic brackets to the
gap above the adjustable glide
at the bottom of leg using 1/4” bolts.
210 (8.2”)
538 (21.2”)
635 (25”)
89 (3.5”)
210 (8.25”)
46 (1.8”)
556 (21.9”)
556 (21.9”)
HEIGHT
INCH MM
MIN 27 686
MAX 43 1092
