GE HEALTHCARE
D
IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Chapter 4 - Room Planning Page 67
4 – Room Planning
Cradle Movement limitation can be set at any position.
Table Height Limitation can not be set (no change for footprint at Gantry Front side).
Scannable range is depends on the Gantry Rear space (distance to the wall), but need to
consider the Service Clearance and country's local regulation for Gantry Rear space.
4.2 Instruction of using Short Footprint function
NOTICE Cradle limitation must comply with country or local regulatory clearance requirements.
Cradle movement limitation set for short footprint must be approved by customer during pre-
installation.

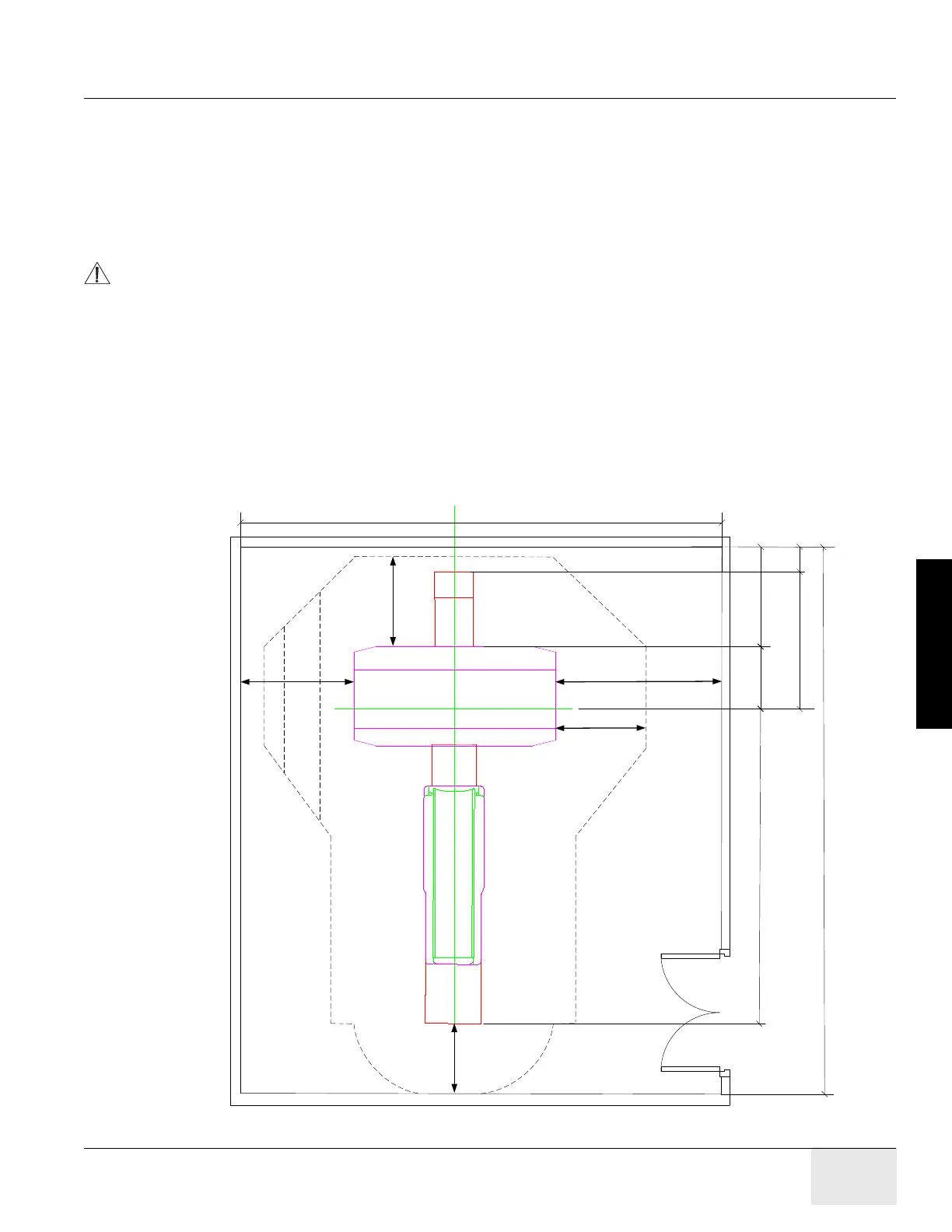

1.) Refer to Figure 4-4 , use floor template with ruler to prearrange the layout and calculate the
cradle scannable limitation (A).
2.) Make GE siting print to meet regulatory and service clearance requirements.
3.) Record the distance from cradle limitation to wall (X) and cradle scannable limitation (A) for
installation.
A
C
D
B
F
711mm
(28
in.)
E
914 mm
(36 in.)
914mm (36 in.)
643 mm
(25in.)
3212 mm (10ft. 6in.)
Cradle
&
Extender
X
A=643 mm+B-X
Scan Center Line
