Page 68 Section 4.0 - Short Footprint Consideration
Figure 4-4 Short Footprint Calculation diagram
A: Cradle Scannable Limitation, the value to be set using Short Footprint function
A(Scannable Range(approx.)) = 643mm(Scan Center Line to Gantry Rear Cover)
+ B(Gantry Rear Cover to Wall) - X(Safety Clearance to prevent hitting cradle to wall).
B: Gantry rear cover to wall, no less than 914 mm (36 in.)
Note: When the length from Gantry rear cover to wall is 914mm, cradle scannable limitation would be
1457mm (Shown in Figure 4-5).
D: Gantry left side to wall, no less than 356mm (14 in. ). Refer to Section 3.0 for details about
Limited Access.
E: Gantry right side to wall, no less than 914 mm (36 in. ). If Short Footprint is set for a short room
length, bigger gantry side clearance is required to remove Gantry rear cover, or no removal of rear
cover is accepted.
X: Distance from cradle limitation to wall.
NOTICE It is Suggested that safety clearance from cradle IN-limit to wall should be no less than 100 mm.
Figure 4-5 shows minimum room layout with Short Footprint function (Gantry rear cover can be
removed).

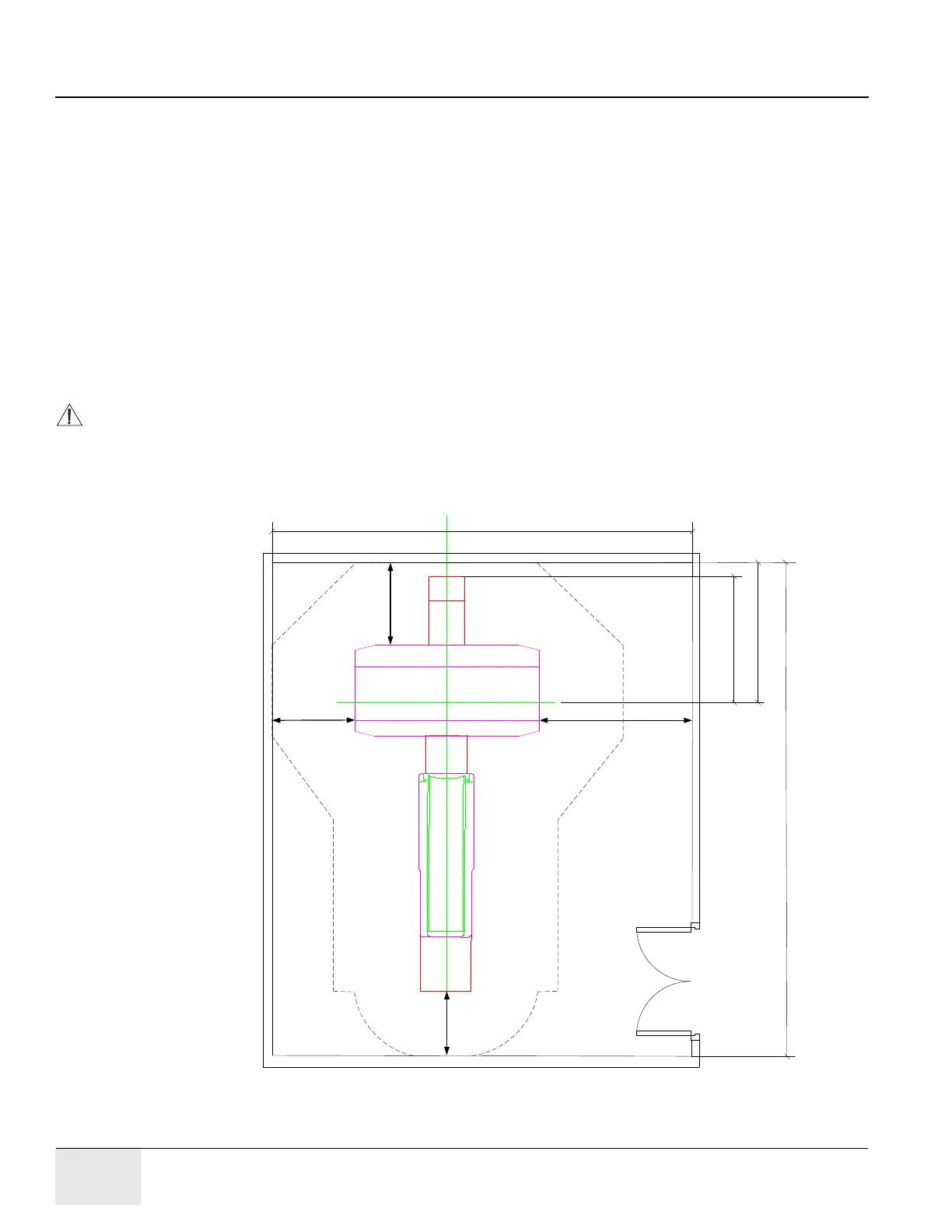

Figure 4-5 Minimum Room layout for Short Footprint function
1457mm (4ft. 9in.)
5480mm (18ft.)
914mm
(36 in.)
1700mm
(5ft. 7in.)
1557mm (5ft. 1in.)
4671mm (15ft. 4in.)
914 mm
(36 in.)
711mm
(28 in.)
Cradle
&
Extender
