Chapter 2: Installation
12 Concord 4 Installation Manual
Optional SnapCards
Use the SnapCard header on the right side of the panel (Figure 4 below) to install an
optional SnapCard. Install the SnapCard onto the panel SnapCard header and secure
it in place with two screws, included with the SnapCard. To connect all necessary
input/output wiring, refer to the SnapCard documentation.

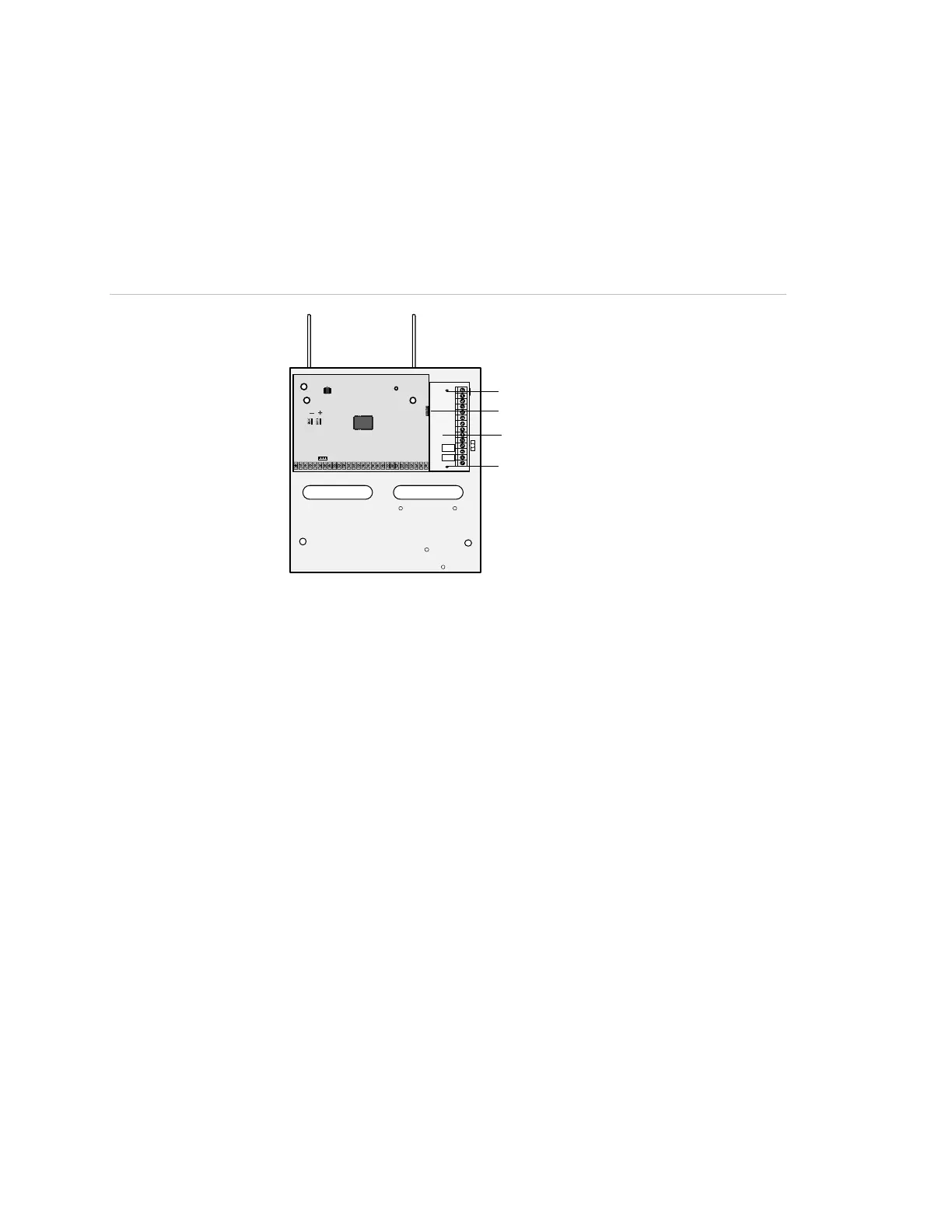

Figure 4: Installing a SnapCard
Mounting hole
Snapcard connector
Snapcard
Mounting hole
