GE Corometrics 170 Series User Manual

Revision D 170 Series Monitor 7-7
2003023-001
Strip Chart Recorder: Annotations
prints on any of the first three annotation lines—as soon as a printing line is
available. A solid diamond marker
prints on the bottom two lines of the heart rate
grid, marking the time of the reading. (See Figure 7-3.)
FSpO2 47%
If the top three printing lines are busy printing other data, the diamond marker prints
at the time of the reading; however, the vital signs data print sometime afterwards—
when a line becomes available.
The %FSpO2 trace prints on the bottom (or right) of the strip chart paper along with
a scale marking the 0%, 50% and 100% marks. The %FSPO
2 trace is a beaded trace
annotated by
FSpO2% on the mode line. (See Figure 7-3.) An adequate
%FSpO2 signal is indicated by a continuous trace on the paper.

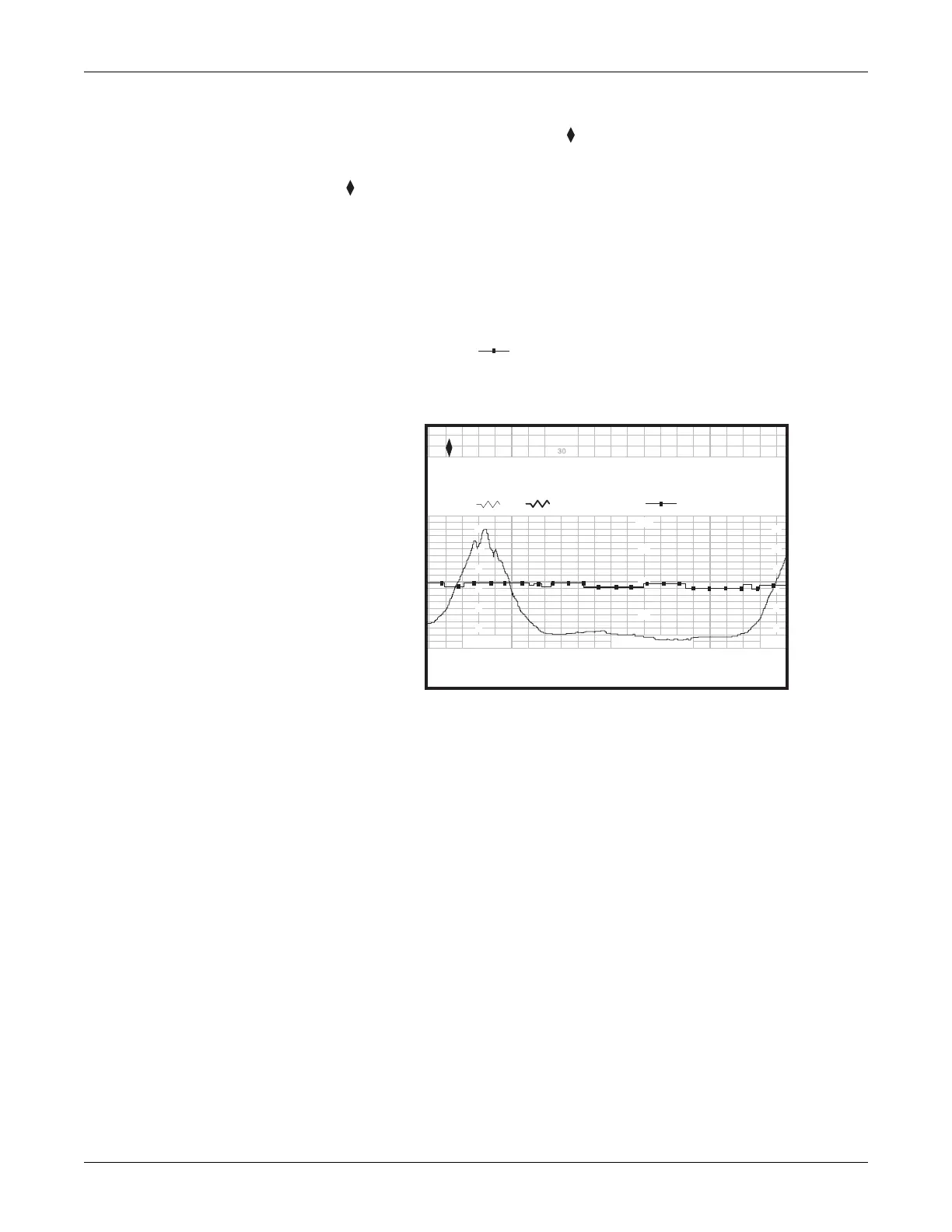

Figure 7-3. FSpO2 Data Example
kPa
UA mm Hg
100
75
50
25
0
12
10
8
4
2
6
12
10
8
4
2
6
00
US US2 TOCO FSpO 2 % 3 CM/MIN
0%
50%
100% FSpO
2
FSpO 2 47 %
9:00
