GE Dash 4000 Operator's Manual

13-2 Dash™ 3000/4000/5000 2000966-386D
Monitoring Respiration
Introduction
Overview
Respiration rate is detected by measuring thoracic impedance changes through ECG
lead I or lead II.
 Lead I provides good thoracic (upper chest) breath detection. However, lead I is
more susceptible to cardiogenic artifact.
 Lead II provides good thoracic breath detection and abdominal (lower chest)
breath detection. However, lead II is more susceptible to both cardiogenic artifact
and motion (head, neck or arm) artifact.
To enable respiration monitoring, select MORE MENUS > MONITOR SETUP >
PARAMETERS ON/OFF > RR.
A parameter window and waveform display when a patient cable is connected to the
monitor and respiration monitoring is enabled. The display is updated every two
seconds.
752A
NOTE
Using an ESU ECG filter will not adversely affect respiration monitoring.
NOTE
When monitoring CO
2
, a respiration rate is always measured and displayed in the
CO
2
parameter window. Using the respiration rate measurement from CO
2
should be the preferred measurement method as an impedance respiration rate
can be disrupted by many conditions.
Additional Information
The GE “Critical Care Monitoring Clinical Reference and Troubleshooting Guide”
provides the following information:
 ECG skin preparation.

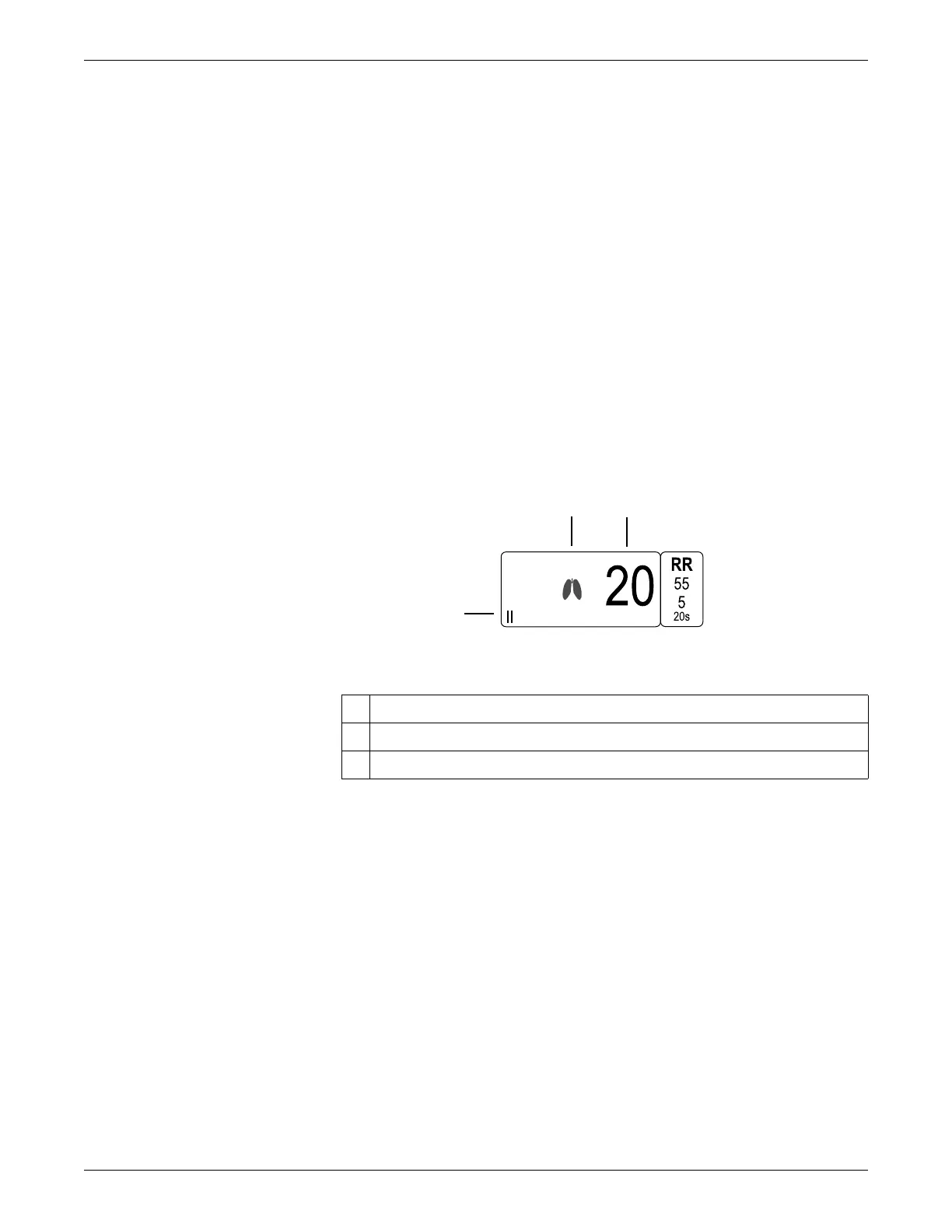

1 Respiration rate
2 Breath indicator
3 Monitored lead
2
3
1

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
