GE Dash 4000 Operator's Manual

2-4 Dash™ 3000/4000/5000 2000966-386D

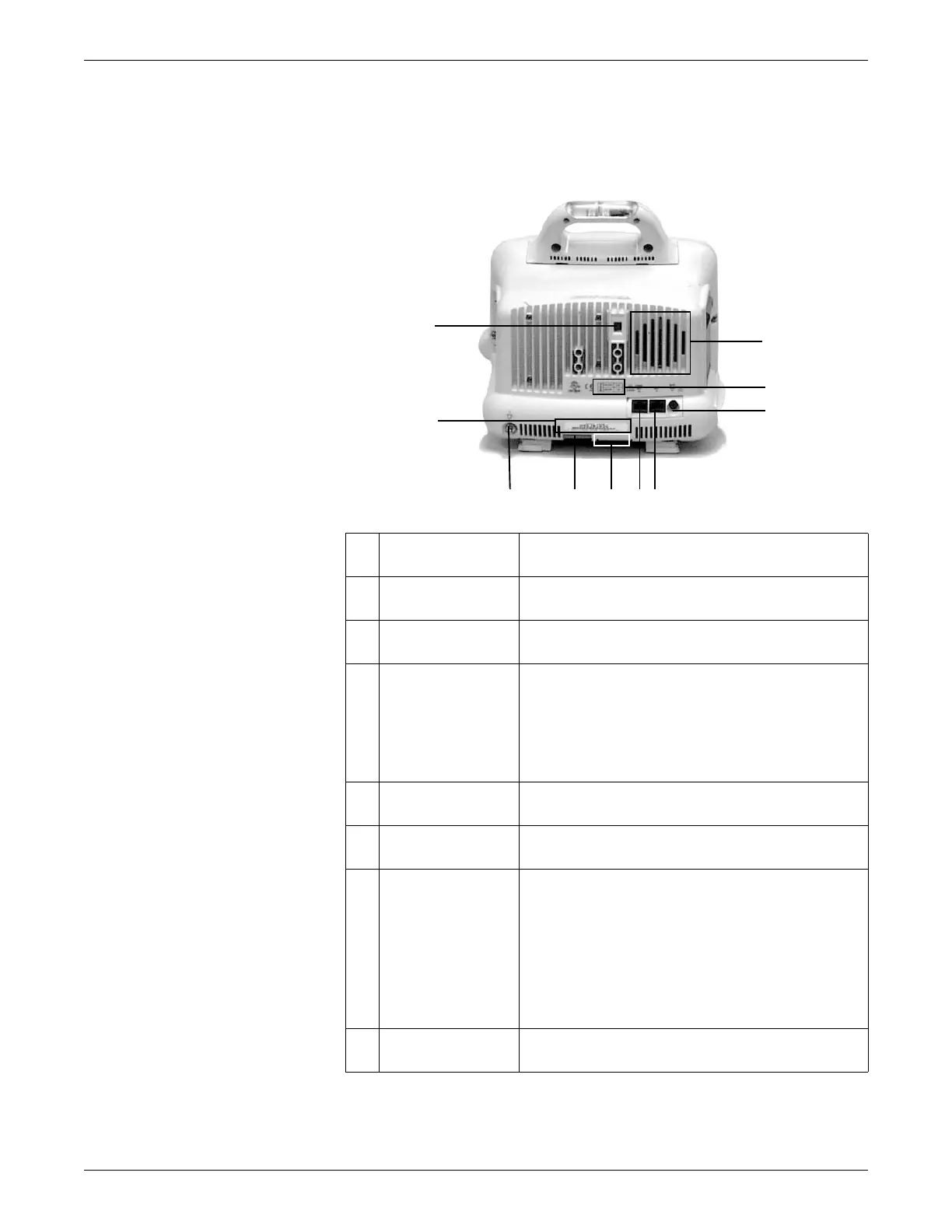

Equipment Overview
Back
1 Line voltage selector Matches the line voltage and frequency rating for your
country.
2 Product code label Identifies the product code for this monitor for identification
and service needs.
3 Equipotential stud Provides a common reference to an auxiliary device via a
ground wire attached to the stud.
4 DC power connector Provides connection for DC power cable. The internal power
supply converts the AC current to DC power.
The monitor is preset at the factory for a specific AC voltage.
Refer to the label on the back of the unit for the voltage and
current requirements. Before applying power, verify the
power requirements match your power supply.
5 Wireless transmitter
label
Identifies monitors that contain an internal wireless
transmitter for network communication.
6 Ethernet connector Provides network connections to other monitors and devices
used in the patient monitoring network.
7 Aux connector Provides serial connection to compatible auxiliary devices,
including:
 Remote control
 TRAM-RAC housing
 Remote display
 Nellcor
®
395 pulse oximeter
 Aspect
®
BISx module
8 Defib Sync
connector
Provides analog output signals to other equipment. For
more information, refer to Analog Output on page 8-6.
3000
2
1
9
10
346
8
7
5

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
