GE Dash 4000 Operator's Manual

E-14 Dash™ 3000/4000/5000 2000966-386D
Interfacing with Non-GE Devices
Setup
Connecting the Monitor
The monitor and the connectivity device much be connected to the same network. To
connect a monitor to a connectivity device, follow this procedure.
1. Turn off the monitor and connectivity device.
2. Connect one end of the purple interconnect cable to the AUX connector on the
monitor or docking station.
3. Connect the other end of the purple interconnect cable to the serial port labeled 1
on the connectivity device.
4. Connect one end of the network cable to the Ethernet connector on the
connectivity device.
5. Connect the other end of the network cable to the Ethernet connector on the
monitor or docking station.
6. Turn on the monitor and connectivity device.

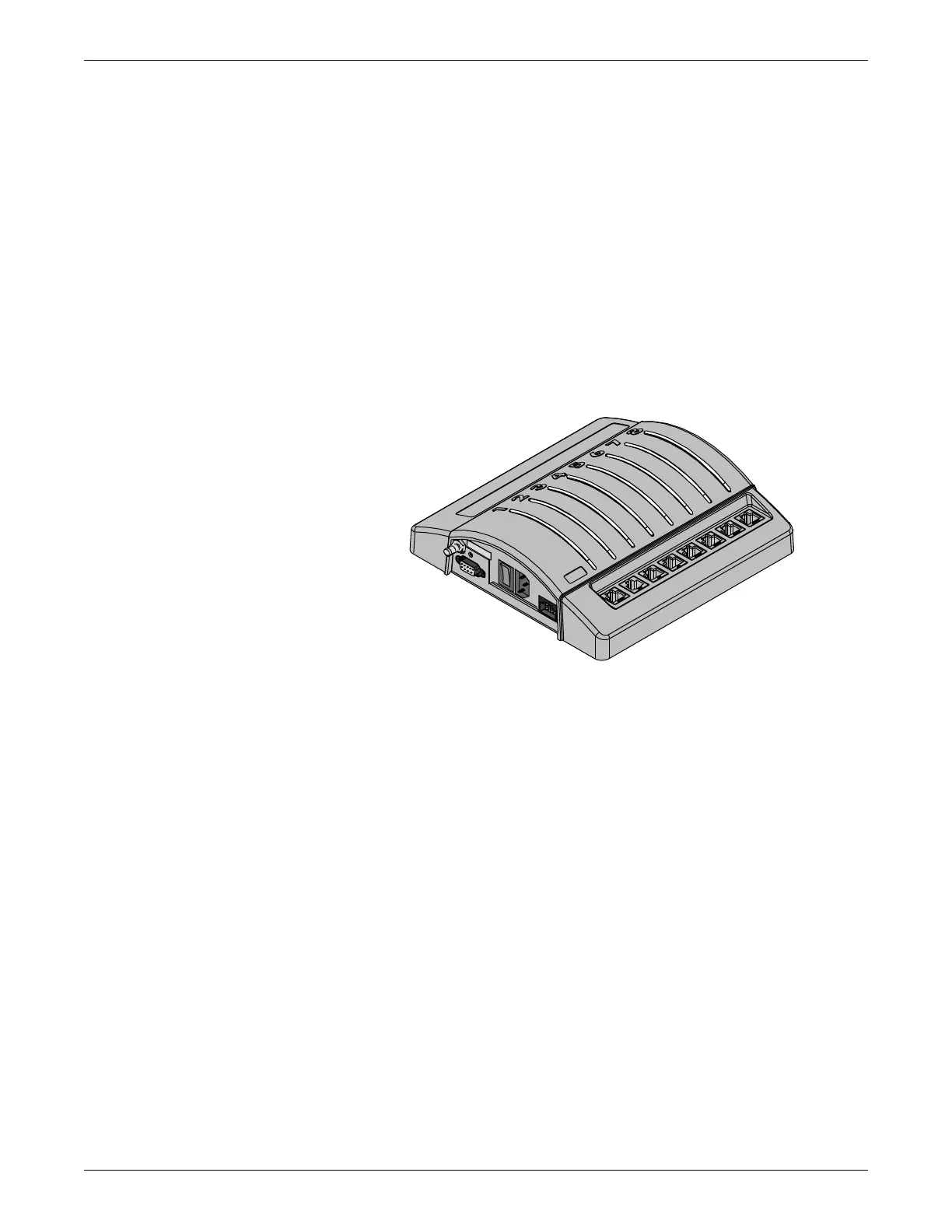

Connecting Peripheral Devices
A unique, factory-programmed interface adapter is required for each peripheral
device. Refer to the instructions provided with the interface adapter for setup and
installation instructions.
To assure proper operation, GE recommends permanently connecting interface
adapters to peripheral device cables.
To connect peripheral devices to the connectivity device, follow this procedure.
1. Connect the interface adapter to the peripheral device cable.
I
0

GE Dash 4000 Specifications

General

Resolution	640 x 480 pixels
Power Supply	100-240 VAC, 50/60 Hz
ECG	3/5/12-lead
IBP	Up to 4 channels
Battery Backup	Yes
Certifications	CE, UL, CSA
Parameters Monitored	ECG, SpO2, NIBP, IBP, Temperature, Respiration, Cardiac Output
Connectivity	Ethernet, USB, Serial
Display Type	TFT LCD
Recorder	Integrated thermal printer
Battery Type	Lithium-ion
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Humidity Range	15% to 95% non-condensing
Display Size	10.4 inches
Cardiac Output	Available
