Programming with PanaView C-11
March 2008
Plotting Transducer
Signals
To plot the selected signal, click on Plot. A graphical window opens,
as shown in Figure C-12 below.

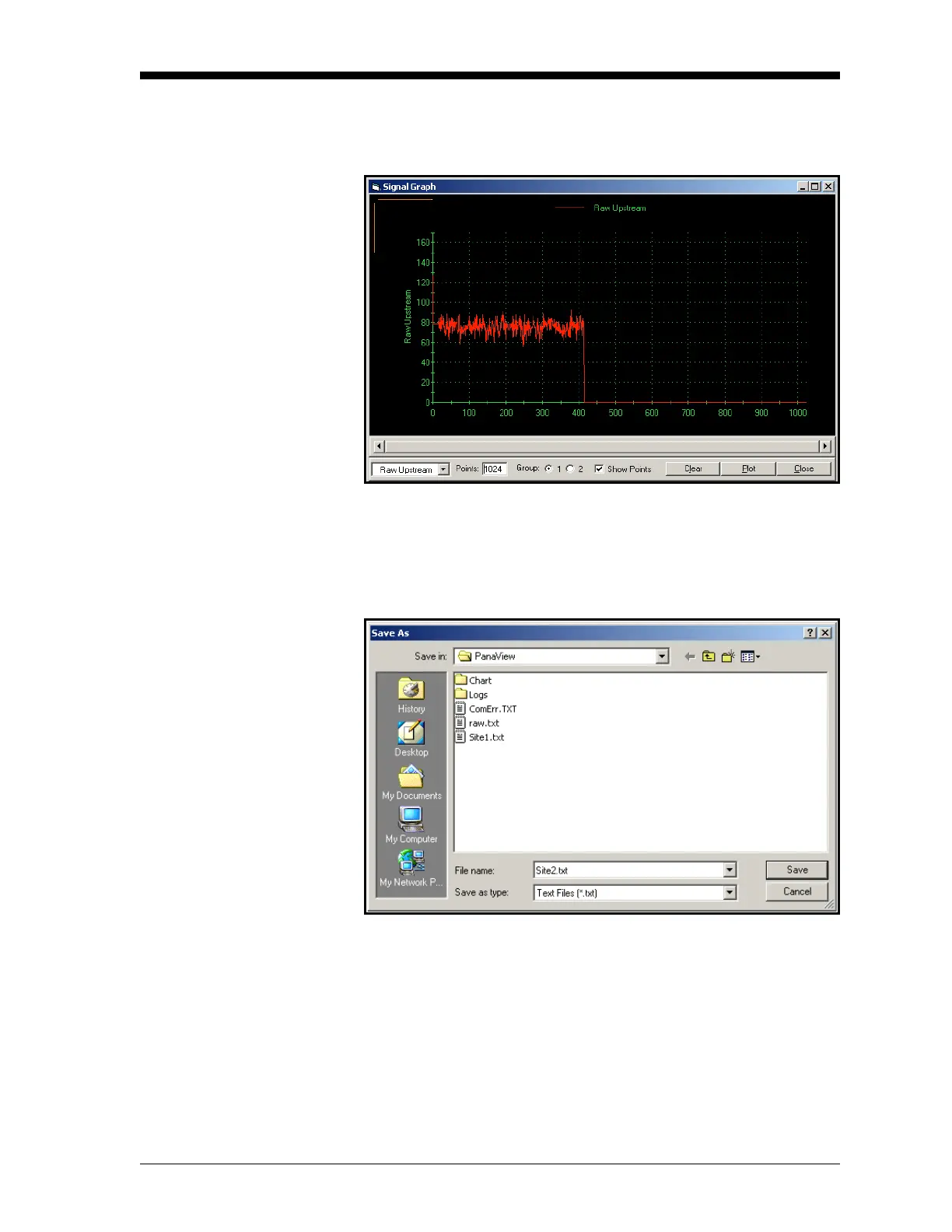

Figure C-12: Signal Graph Window
Saving Transducer Signals To save the raw signal, click Save. A window opens similar to the one
shown in Figure C-13 below. Enter the desired name, and click Save
to save the signal as a text file.
Figure C-13: Save As Window
Clearing Totalizers To clear the meter totalizers, click on the Clear Totalizers button in
the Properties window. The meter totalizers are reset to 0.
