GE DigitalFlow DF868 User Manual

March 2008
D-6 Foundation Fieldbus Communications
Function Block
Application
Figure D-5 below is an example setup using the Function Block
Application editor. The flowmeter AI blocks, along with the AO and
PID of another device on the network, are displayed. We have
connected the AI_1 OUT of the flowmeter to the CAS IN of the AO
block. We have also connected the AI_2 OUT of the flowmeter to the
CAS IN of the PID block.

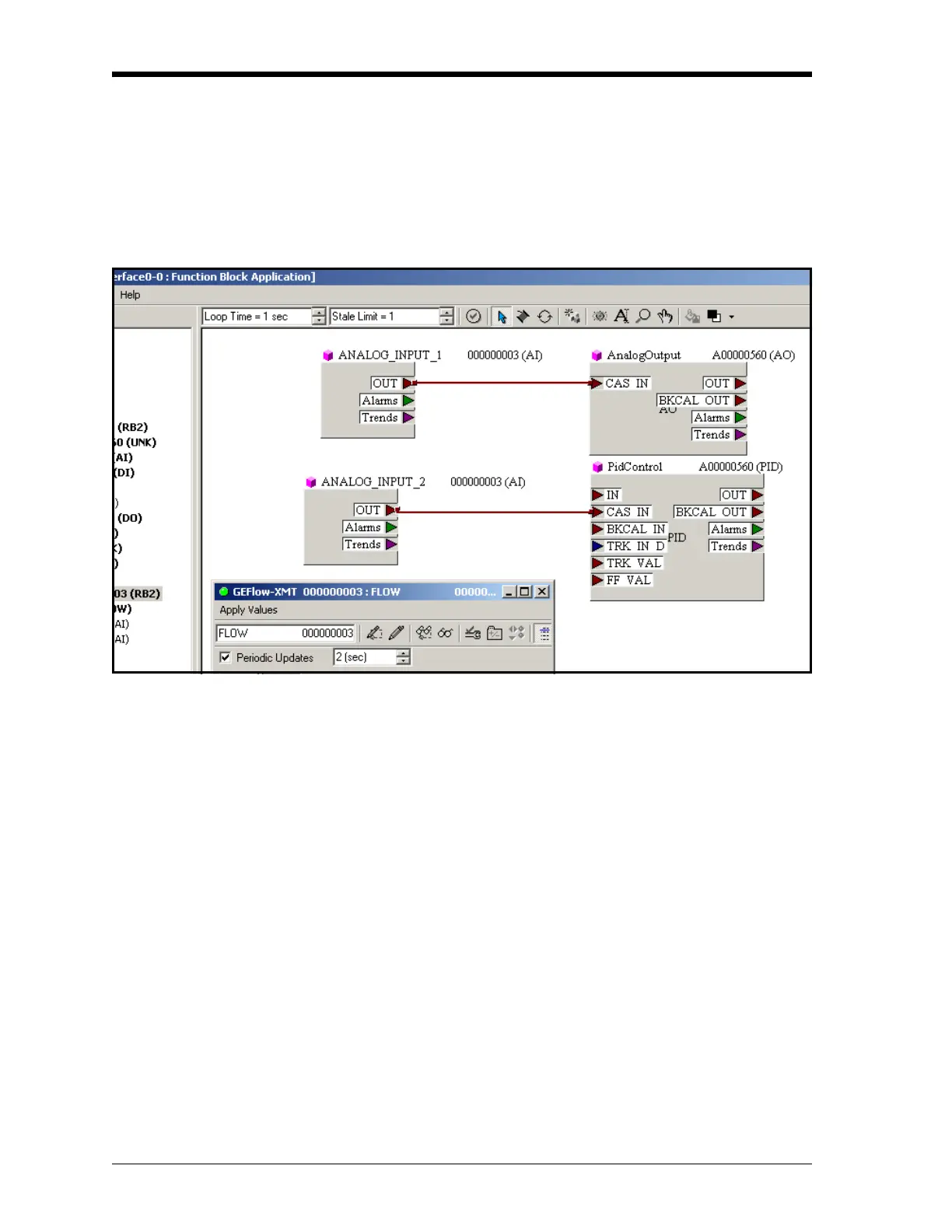

Figure D-5: Function Block Application
