Power Quality Tab

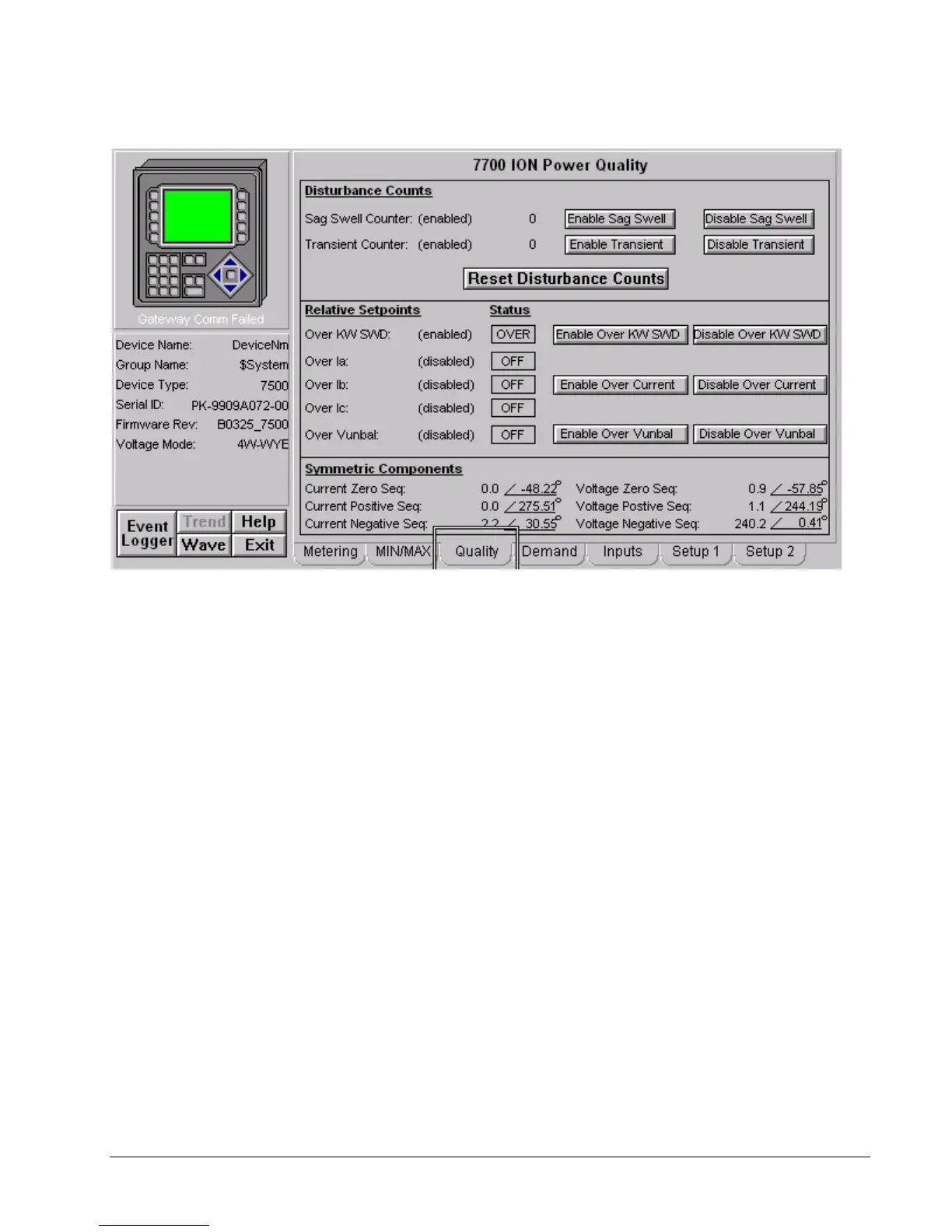

EPM 7700 ION Meter - Power Quality Tab
The Power Quality tab displays the following power quality values from the EPM
7700.
Disturbance Monitoring
• Sag / Swell Counter
• Transient Counter
• Over KW Sliding Window Demand Status
• Over Current Phase A Status
• Over Current Phase B Status
• Over Current Phase C Status
• Over Voltage Unbalance Status
*Note: no color code is used for the Relative Setpoint Status.
Symmetric Components
• Zero Sequence Magnitude for Current and Voltage
• Zero Sequence Phase for Current and Voltage
• Positive Sequence Magnitude for Current and Voltage
• Positive Sequence Phase for Current and Voltage
• Negative Sequence Magnitude for Current and Voltage
• Negative Sequence Phase for Current and Voltage
