GE EPM 7300 - Demand Tab

144 PMCS Interface Toolkit
The Power Quality tab also provides push buttons for performing the following
commands:
Reset Disturbance Counters – Resets Sag Swell and Transient Counters.
Enable/Disable Sag Swell – Enables or Disables Sag Swell Tracking.
Enable/Disable Transient – Enables or Disables Transient Tracking.
Enable/Disable Over KW – Enables or Disables Over Real Power Sliding Window
Demand for Relative Setpoint Tracking.
Enable/Disable Over Amps – Enables or Disables Over Current for Phases A, B,
and C for Relative Setpoint Tracking.
Enable/Disable Over Vunb – Enables or Disables Over Voltage Unbalance for
Relative Setpoint Tracking.
Demand Tab

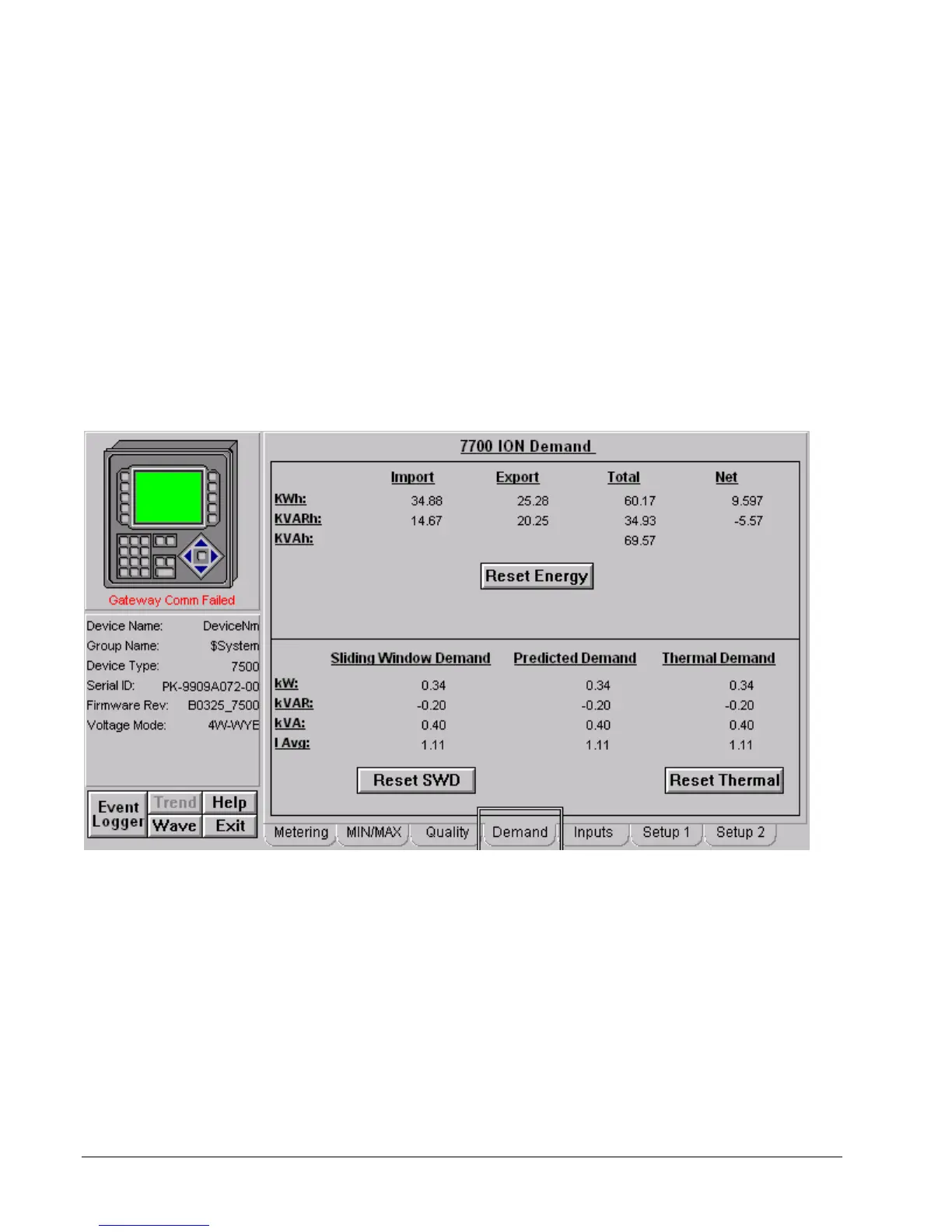

EPM 7700 ION Meter - Demand Tab
The Demand tab displays the following demand values from the EPM 7700.
Energy
• Real Energy Import, Export, Total, and Net
• Reactive Energy Import, Export, Total, and Net
• Apparent Energy Total
Sliding Window Demand (SWD)
• Real Power Sliding Window Demand and Predicted Demand
• Reactive Power Sliding Window Demand and Predicted Demand
• Apparent Power Sliding Window Demand and Predicted Demand
