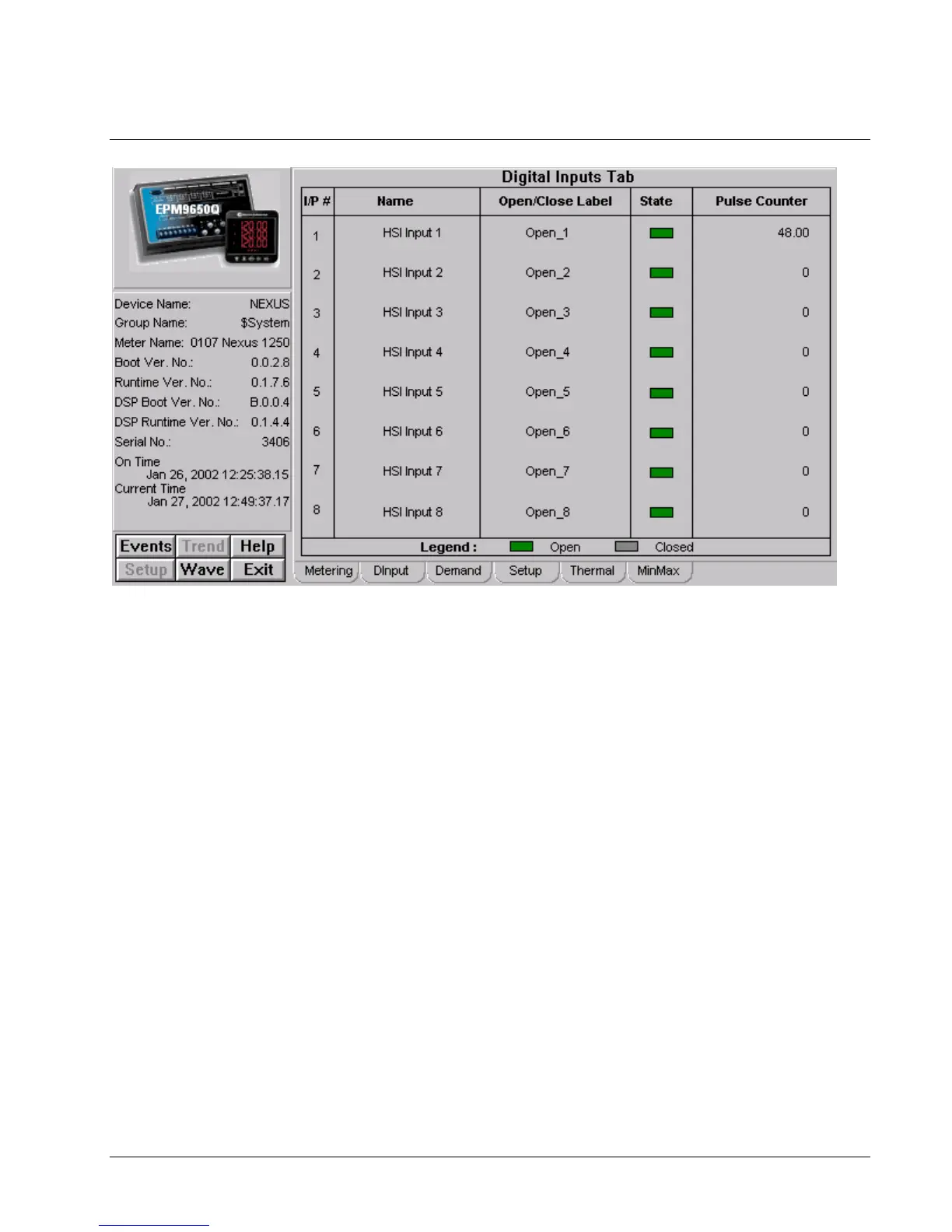

Digital Inputs
The Digital Inputs tab displays the following parameters of 8 digital inputs. They are
Name: Displays the name of the Digital Input. The maximum allowed is 16 Character string.
Open/Close Label: Based on the Digital input status, the corresponding label will be displayed. For example if the
digital input status is OPEN then label for Open condition is displayed or if the digital input status is CLOSED then label
for Closed condition is displayed.
Status: The status is displayed Open/Closed. Open status showed in green and Closed status in gray.
Counter: Displays the corresponding digital input counter value.
