22 PMCS Interface Toolkit
Elevation Wizards
Usage

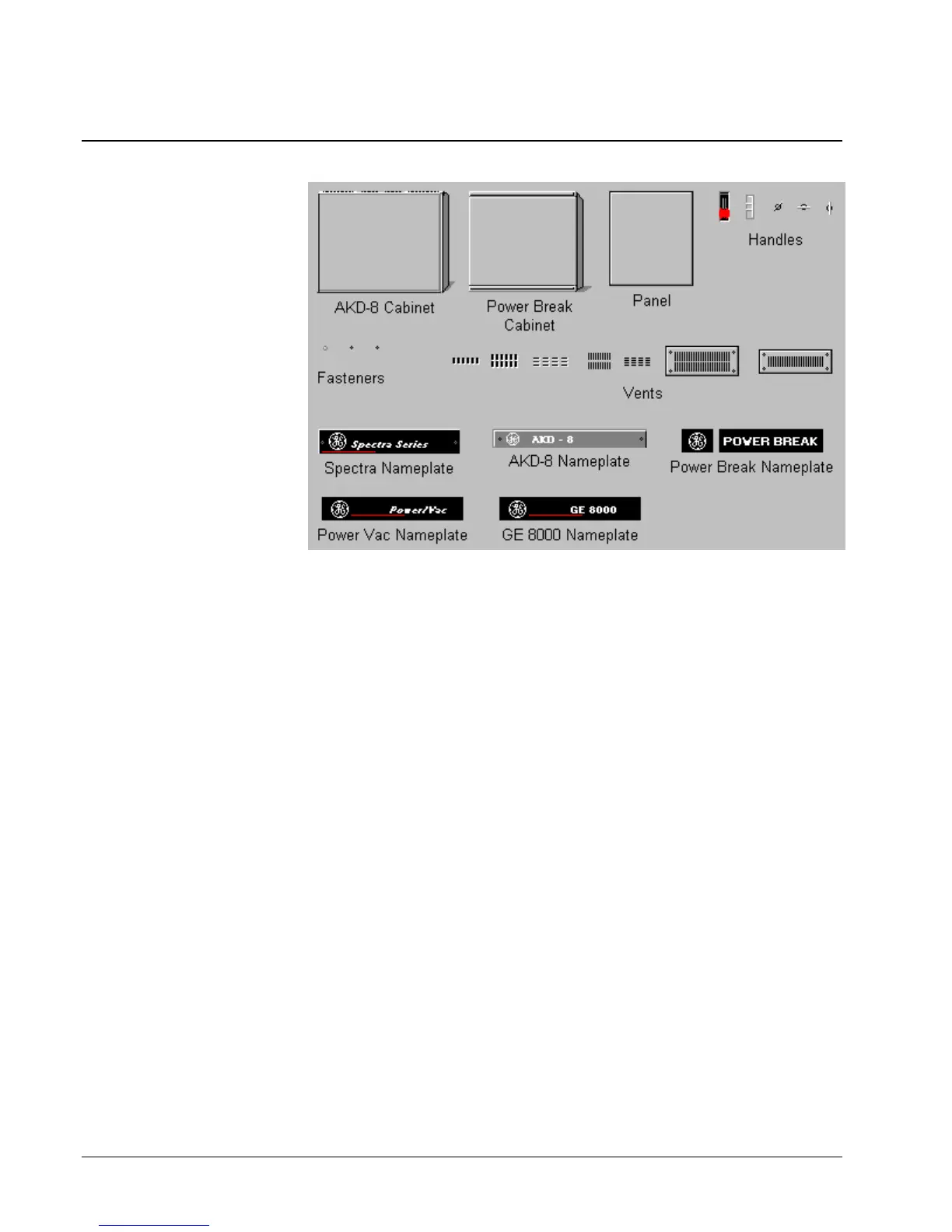

Elevation wizards are graphical elements that represent switchgear components
useful for creating 3-D elevation views. These wizards are not associated with any
logic or animation, but are provided to create more visually accurate screens and
representations of equipment. Device icon wizards are typically placed on the
Elevation wizards to show the breakers, trip units, and meters and provide navigation
to device 3-D wizards, tabular displays, or arbitrary windows.
Configuration
After placing an Elevation wizard in an open window, it may be moved or resized,
but no other configuration is possible. Elevation wizards are not provided with logic
for opening another window.
