158 PMCS Interface Toolkit
Digital Counter Tab

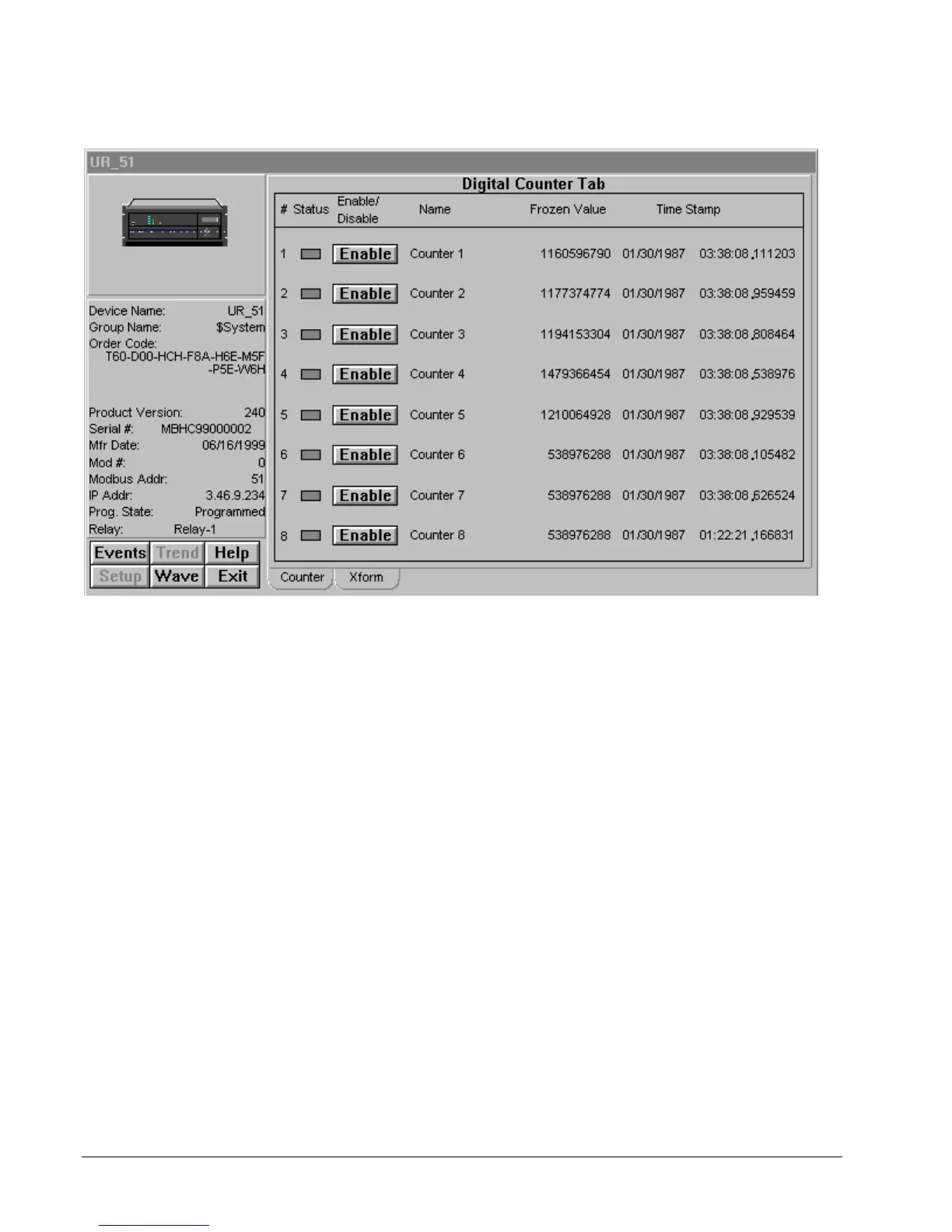

Universal Relay - Digital Counter Tab
The digital counter tab supports B30, C30, C60, D60, F30, F35, F60, G60, L60, L90,
M60 and T60 device types, showing information about the eight digital counters
provided in each UR.
Status – this indicator is amber if the counter is enabled, gray if disabled.
Enable/Disable – this button gives the user the ability to enable or disable the
specified counter.
Name – displays the user-defined name assigned to the counter.
Frozen Value – shows the counter’s value when last frozen.
Time Stamp – shows the time and date when the frozen count was acquired.
