EPM9450Q/EPM9650Q
This device belongs to the Electro Industries family, which is a tightly integrated device in to the PMCS product.
The device comes with 2 versions – EPM9450Q and EPM9650Q. The EPM9450Q device does not support Waveform
feature. The EPM9650Q supports Waveform features.
The device offers the following features:
• Max/Min integration: Offers Maximum and Minimum values for every measured reading.
• 8 Built-in Digital High-Speed Status Inputs: The device offers 8 High speed digital inputs.
• Demand: Measures Fixed window, Sliding window, Predictive and Themal demands.
• 4 Communication Ports: There are 4 ports – Port 1, Port 2, Port 3 and Port 4.
The device contains the following tabs:
Metering

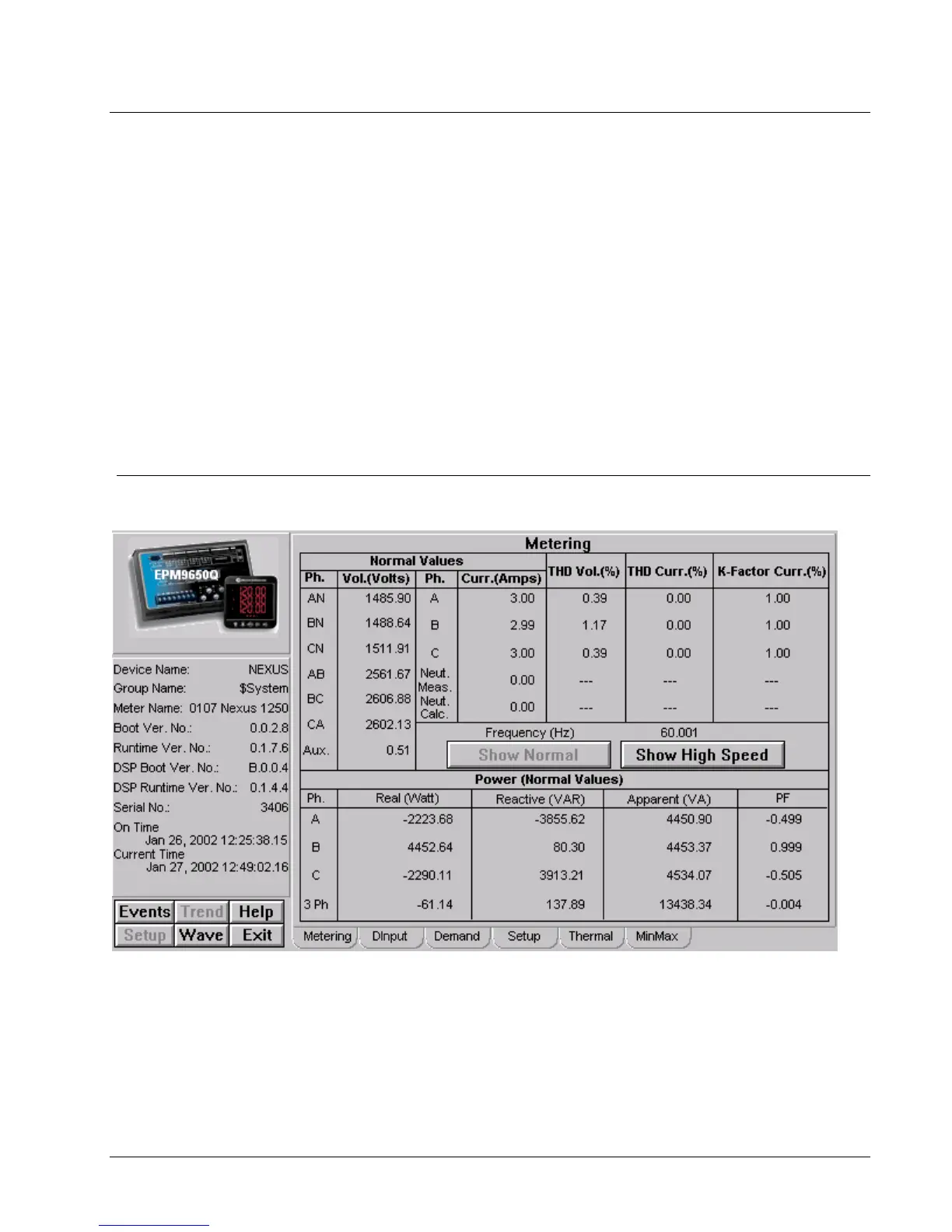

The Metering tab shows following various parameters:
• Voltage Normal/ High Speed: This tab displays the voltage values of AN, BN, CN, AB, BC, CA and Aux.
• Current Normal/ High Speed: Displays currents of Phase A, B, C, measured and calculated.
• THD Normal/ High Speed: Displays THD values of Phase A, B, C for Voltage and Current an d K Factor.
• Power: Displays Phase A, B, C and 3 Phase Power Values for Real (Watt), Reactive (VAR), Apparent (VA) and
