FP1500 Installation, Configuration and Commissioning Manual 17
PG700
Portable unit for all types
All sensors must be installed in clean environments. During construction and refurbishing
work, they must be protected to keep them from being damaged and/or contaminated.
When you have identified the detector type that better fit the protection need, the
installation process can start. Installation is the same for any kind of sensor:
• Install the connection base DB304 (See Instruction Manual).
• Once base DB304 is installed, connect it to the loop. The two wires from the system
are connected to the base and continuity should be given to the shield.
• Assign the address to the detector using the PG700 portable address programmer
(See section 3.1 or the Instruction Manual). Detector address can also be assigned
through the fire panel keypad.
• Lastly, mount the detector in the base.

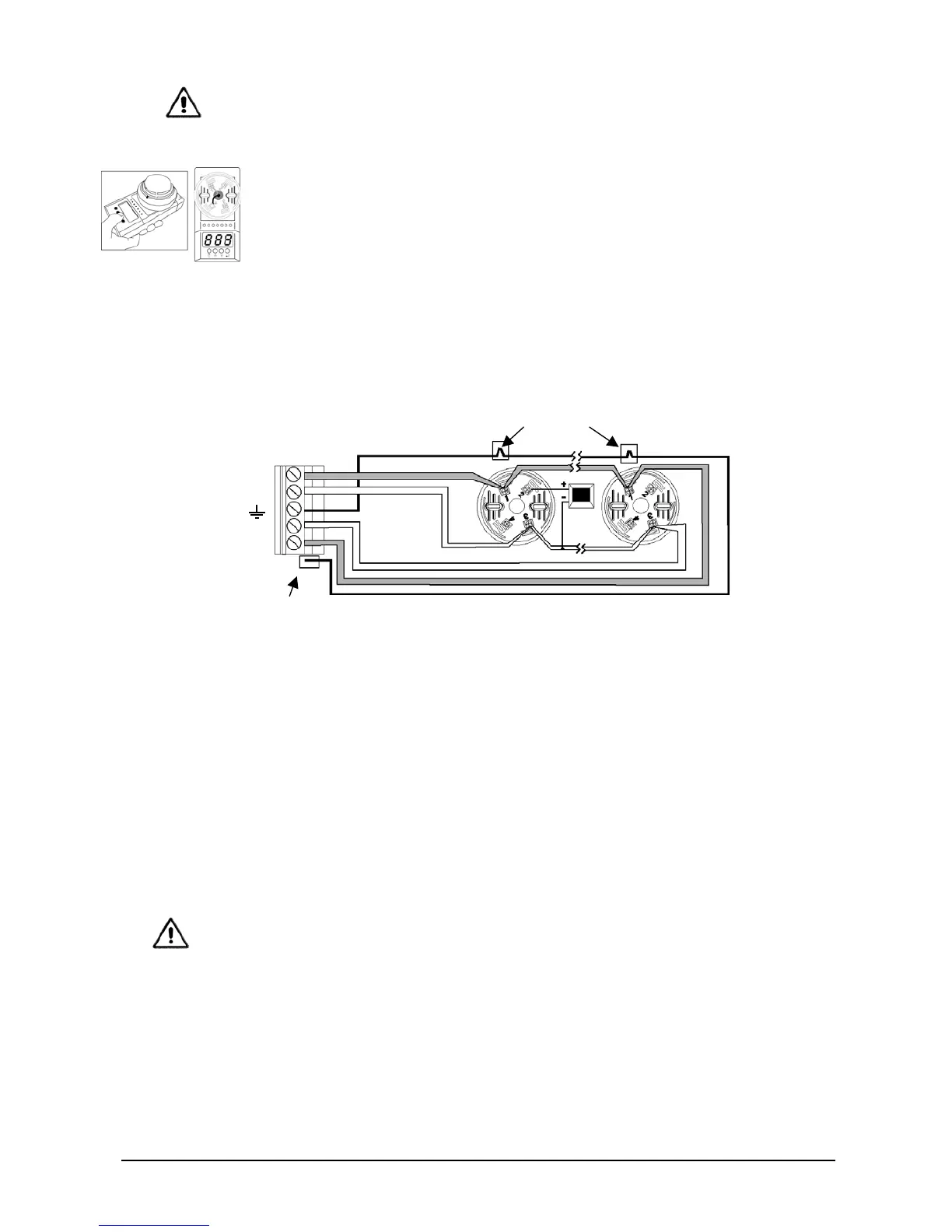

Figure 10. Connection of the loop connector strip from the base plate
3.5.5 Connecting modules
The modules are elements connected to the loop that handle the system's input and
output information. Up to 125 modules can be installed on a loop, with each occupying a
logical address from 128 to 252.
Some of the modules need additional external power. There are two possibilities for
providing this supply depending on the needs of the installation:
• Through the auxiliary 24 VDC output located in the upper part of the main board.
The cable with the auxiliary 24 VDC runs parallel to the loop's cable.
• An external source that provides the necessary 24 VDC, located as close as
possible to the module.
Before connecting the loop line to the panel, use a tester to verify that there is no connection
in any way with the auxiliary 24 VDC lines.
