FP1500 Installation, Configuration and Commissioning Manual 41
• Hardware flow control
(As an external printer, the EPSON LX300 is recommended)

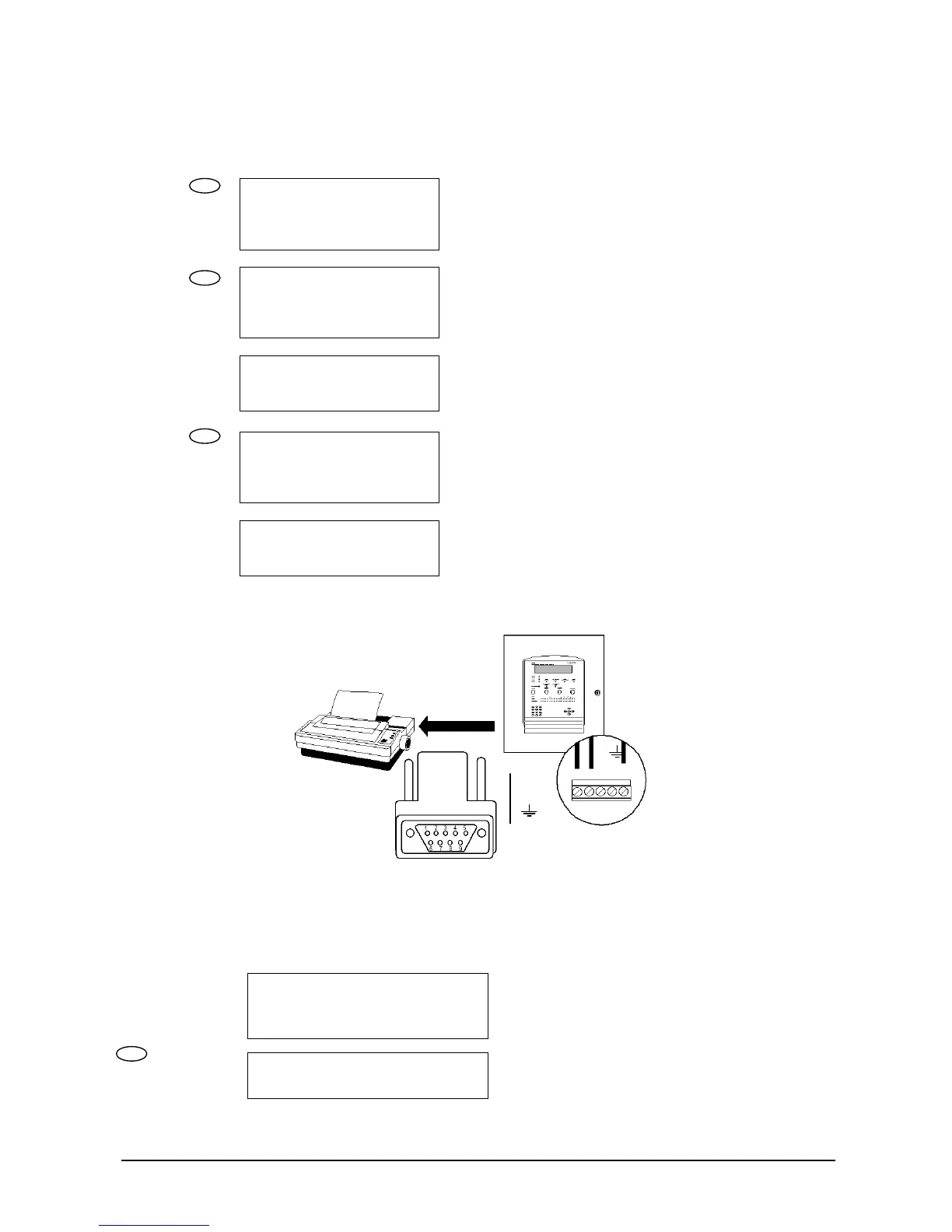

To configure the printer:
[MAIN MENU] [# Exit]
1. Configure 4. Connect 7. See
2. Test. 5. Disconnect
3. Time 6. Print
From [Main Menu] select option 6 <Print>.
The control unit enters the printing menu.
[PRINT] [# Exit]
1. Element 4. Disconnect
2. Historic. 5. Options
3. Mode
In [PRINT] select option 5 <Options>
Printer port: [01]
Internal printer: [NO]
Select whether the printer is external or internal.
[PRINT] [#Exit]
1. Element 4. Disconnected
2. Historic 5. Options
3. Mode
Exit 5<Options>
From [PRINT] select option 3 <Mode>
Adjust the printing mode with the < 9 > key.
Printer Mode: [Manual]
[Manual]: Prints only when the user requires
[Auto]: Automatically prints alarms or faults as
they occur
[OFF]: The printer is disabled
4.2.10 Changing the access level codes
The level 3 access code for the control unit (9898 factory setting) may be changed. As
with level 2 codes, up to 10 different codes may be added.
[CONFIGURE] [# Exit]
1. System 4. System Op. 7. Events
2. See Config. 5. Check Prog. 8. Day Mode
3. Time/Date 6. Power Supply 9. Codes
From [CONFIGURE] select option 9 <Codes>
The following screen displays the access level
of the control unit: [2] or [3]
LEVEL CODES: [2]
On level 2:
You can add up to 10 different access codes.
6
5
3
9
TXA RXB A
B
RS1
3 RXB
3 TXA
5
