MA-025 – DGA 900 Operator Guide – Rev 2.0 12-Apr-19 Page 61 of 92

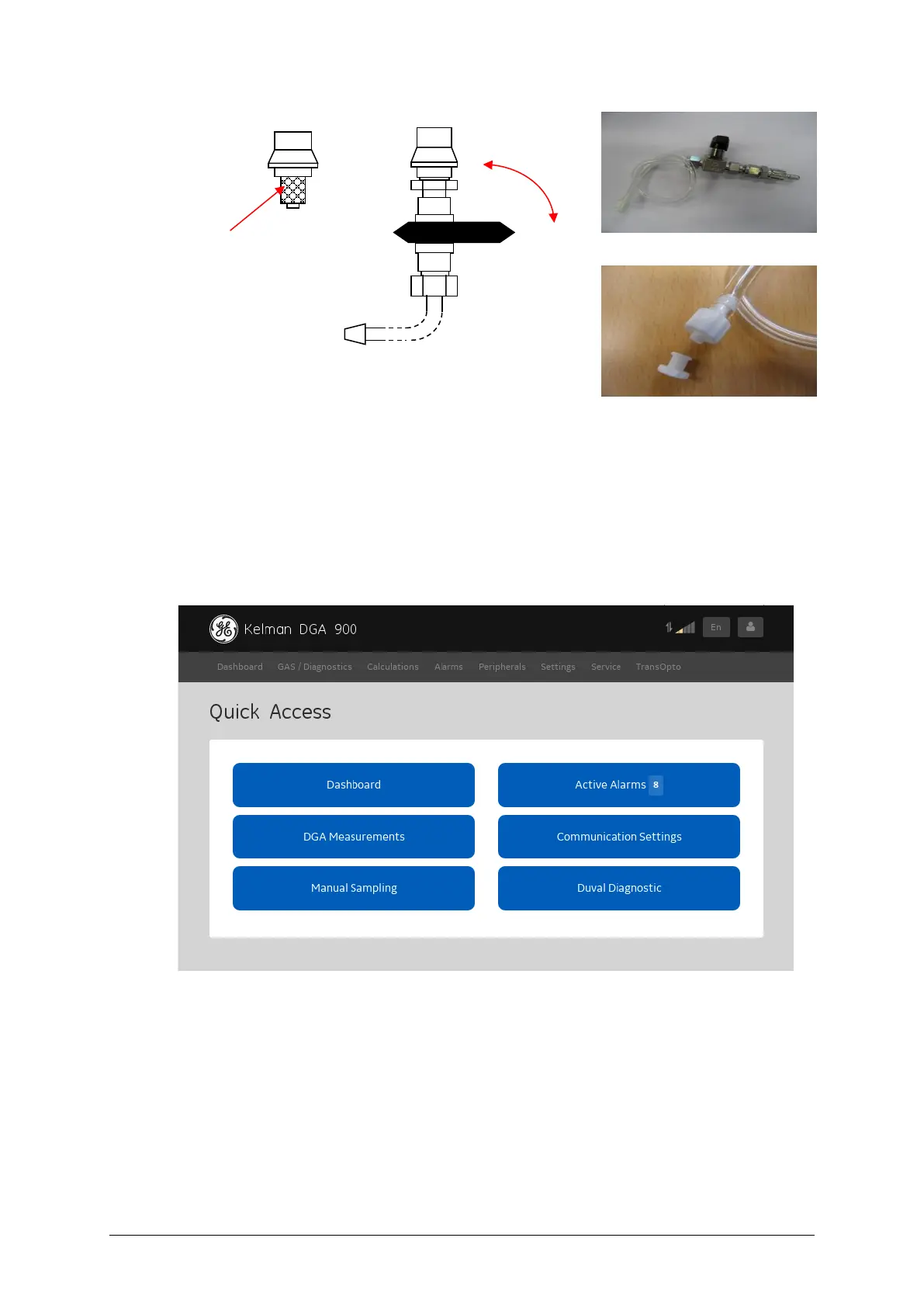

Figure 7-2: Valve orientation
Figure 7-3: Sampling assembly
Figure 7-4: Luer fitting on assembly
7.2 Local HMI for manual sampling
The manual sampling functionality is implemented on the Quick Access page of the local
HMI only as shown in Figure 7-5. Press Manual Sampling.
Note: Before proceeding, ensure that the sampling assembly is fitted as outlined in
Section 7.1.
Figure 7-5: Local HMI: Quick Access
Oil sampling valve assembly with Luer
fitting
Quick-connect body protector
with pull-down collar for
